Connecting the Projector
Adjusting the Projector Zoom/Focus
You adjust the focus and zoom in/out with the focus ring and zoom
wheel. To focus the image, rotate the focus ring until the image is
clear. The projector can focus to distances from 4.58 feet to 32.81
feet (1.4m to 10.0m).
Adjusting Projection Image Size

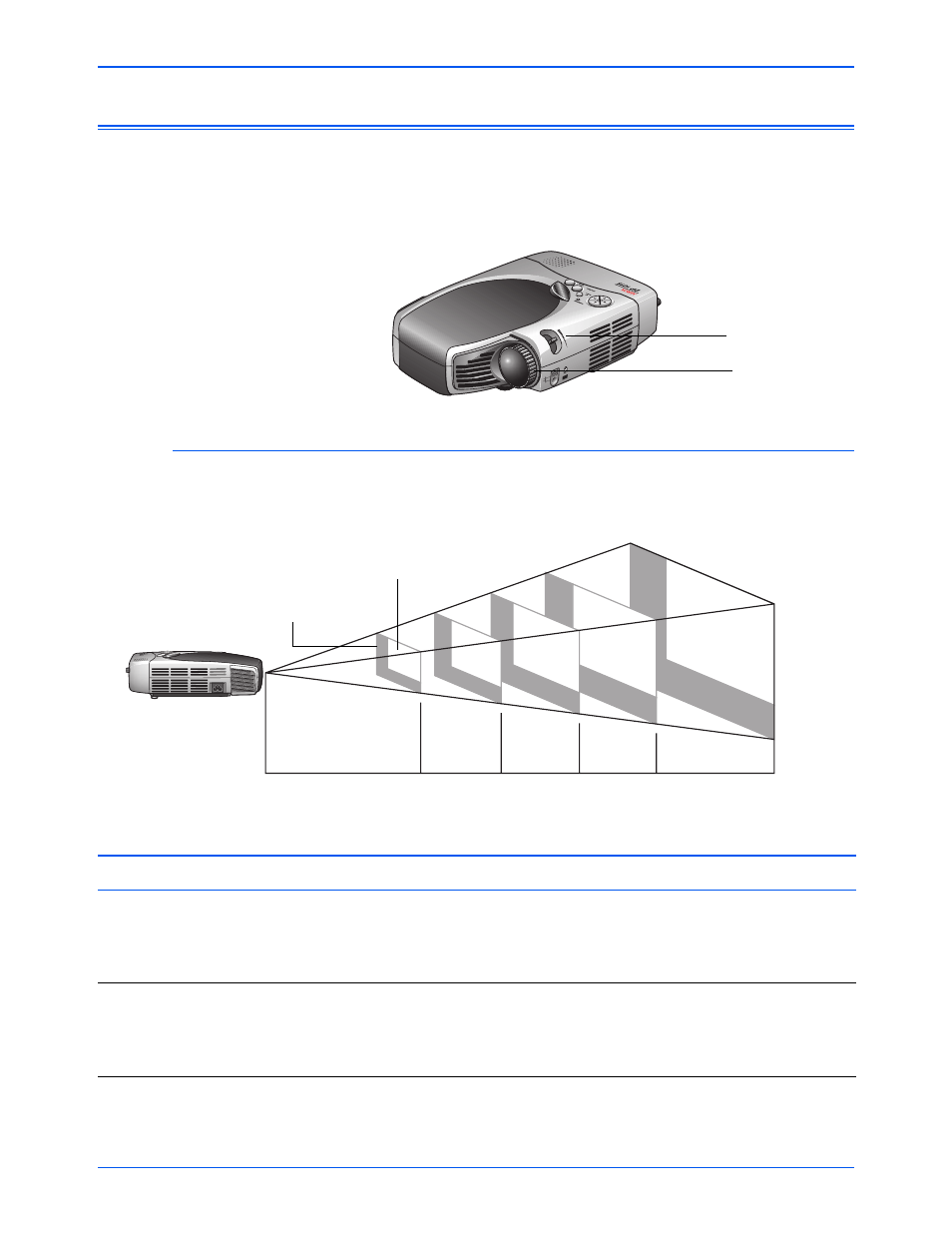

Use the following figure and table to select the best projection
distance and screen size. Maximum and minimum screen sizes are
diagonal measurements. The table is for reference only.
*
1.40 (55”) for SVGA
Focus Ring
Zoom Wheel
1.45m (57”)’
2.0m (78”)
4.0m (157”) 6.0m (236”)
10.0m (393”)
Maximum Screen Size
Minimum Screen Size
Projection Distance
1.45m (57”)
*
2.0m (78”)
4.0m (157”)
6m (236”)
10m (393”)
Minimum Screen
Size (XGA)
42”
49”
99”
148”
247”
Maximum Screen
Size (XGA)
48”
57”
113”
170”
283”
Minimum Screen
Size (SVGA)
27”
38”
77”
115”
191”
Maximum Screen
Size (SVGA)
31”
44”
88”
132”
219”
