Connecting the Projector
8 Xerox DP1015 User’s Guide
Connecting the Projector

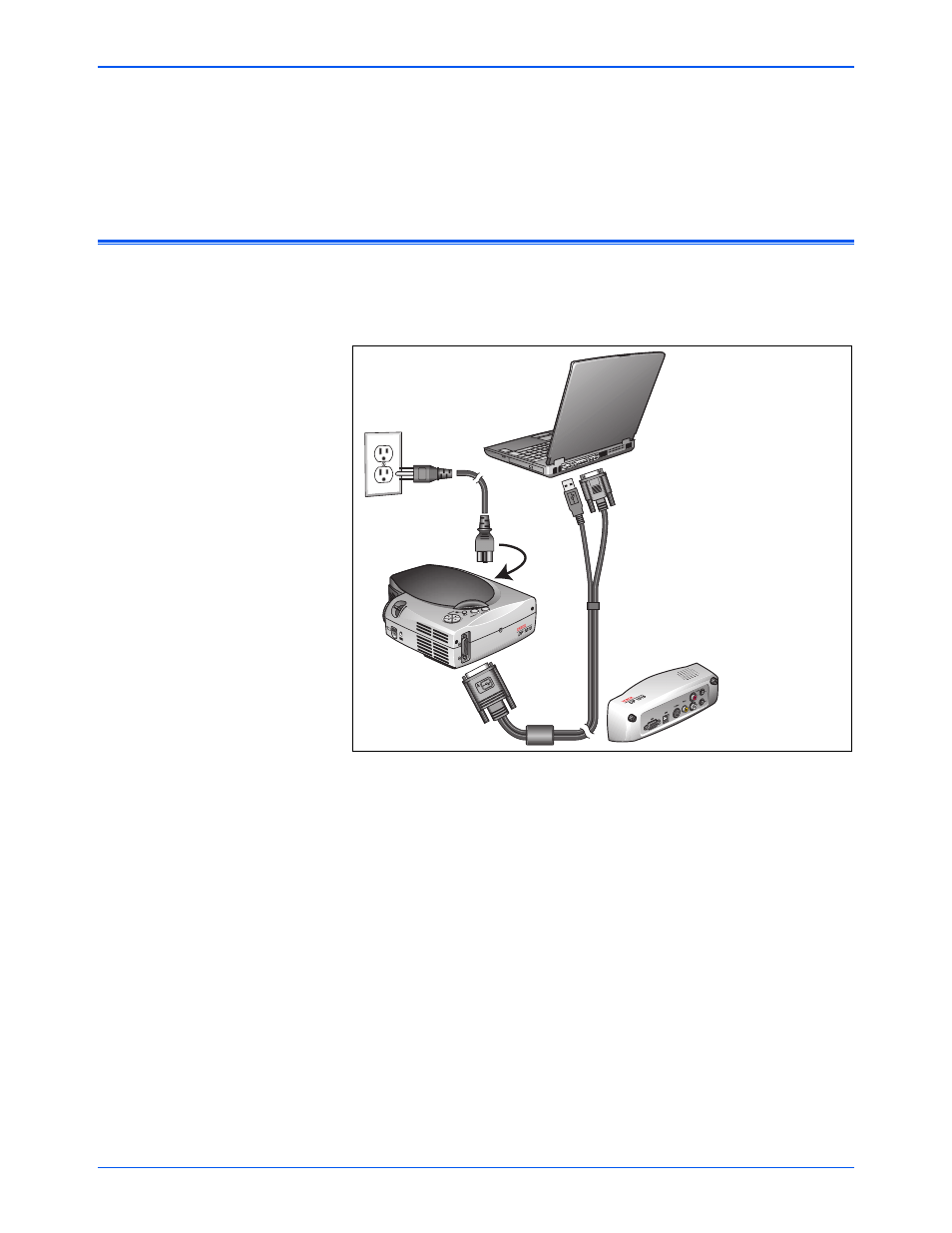

Connecting the Projector for a Data-Only Display
In this configuration, the projector displays data (such as
spreadsheets or text files) from your computer. Video and audio
are not available.
1. Make sure the projector and computer are turned off.
2. Remove the video adapter from the back of the projector.
3. Using the M1DA/VGA and USB cable, connect the M1DA
connector to the projector’s M1DA port. Connect the VGA
connector to the VGA port on the computer.
4. Connect the USB connector to the USB port on your computer.
You can then use the remote control as a remote mouse.
5. Plug the power cord into the projector and then into an
electrical outlet.
6. Turn on the projector first, and then the computer.
NOTE: Your DP1015 projector works best when the computer
screen resolution is set to 1024 x 768 or less. To reset the
computer screen resolution, see “Setting the Screen Resolution”
on page 35.
Video Adapter (Removed)
M1DA/VGA and USB cable
Power Cord
M1DA Connector
USB and VGA connectors
