Cleaning the oven door

These instructions refer to the oven door as
supplied by the manufacturer.

If the oven door has been reversed
on your request or due to the
requirements of the installation, the
use of right/left must also be
transferred to the other side.

We recommend you remove the inner door pane
before cleaning.

Please follow the instructions below.

Fig. 1: With the right hand hold the perforated
aluminium plate (“A”) in position and with the left
hand remove the retainer “B” of the inner pane.
Then to unlock the retainer, press it to the right
and then pull it upwards.

Fig. 2: Pull the perforated aluminium plate “A”
out of the retainer “C”.

Fig. 3: With the left hand hold the inner pane “D”
in position and pull out the retainer “C”.

Hold onto the pane “D” tightly, so
that it does not tilt and fall out.

Fig. 4: Then take hold of the inner pane “D”
securely with both hands and push it out
upwards.

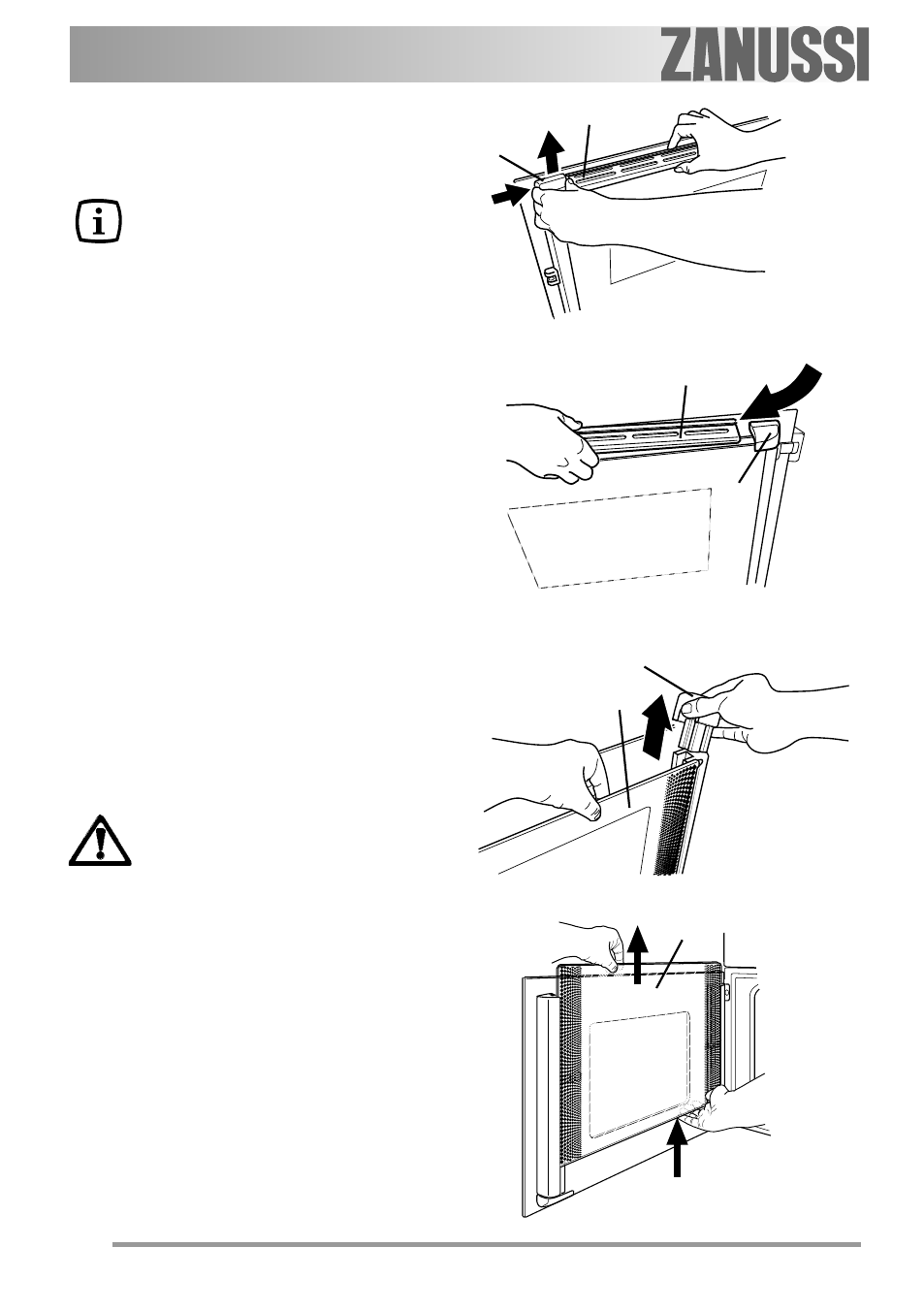

Fig. 1

Fig. 2

Fig. 4

Fig. 3
