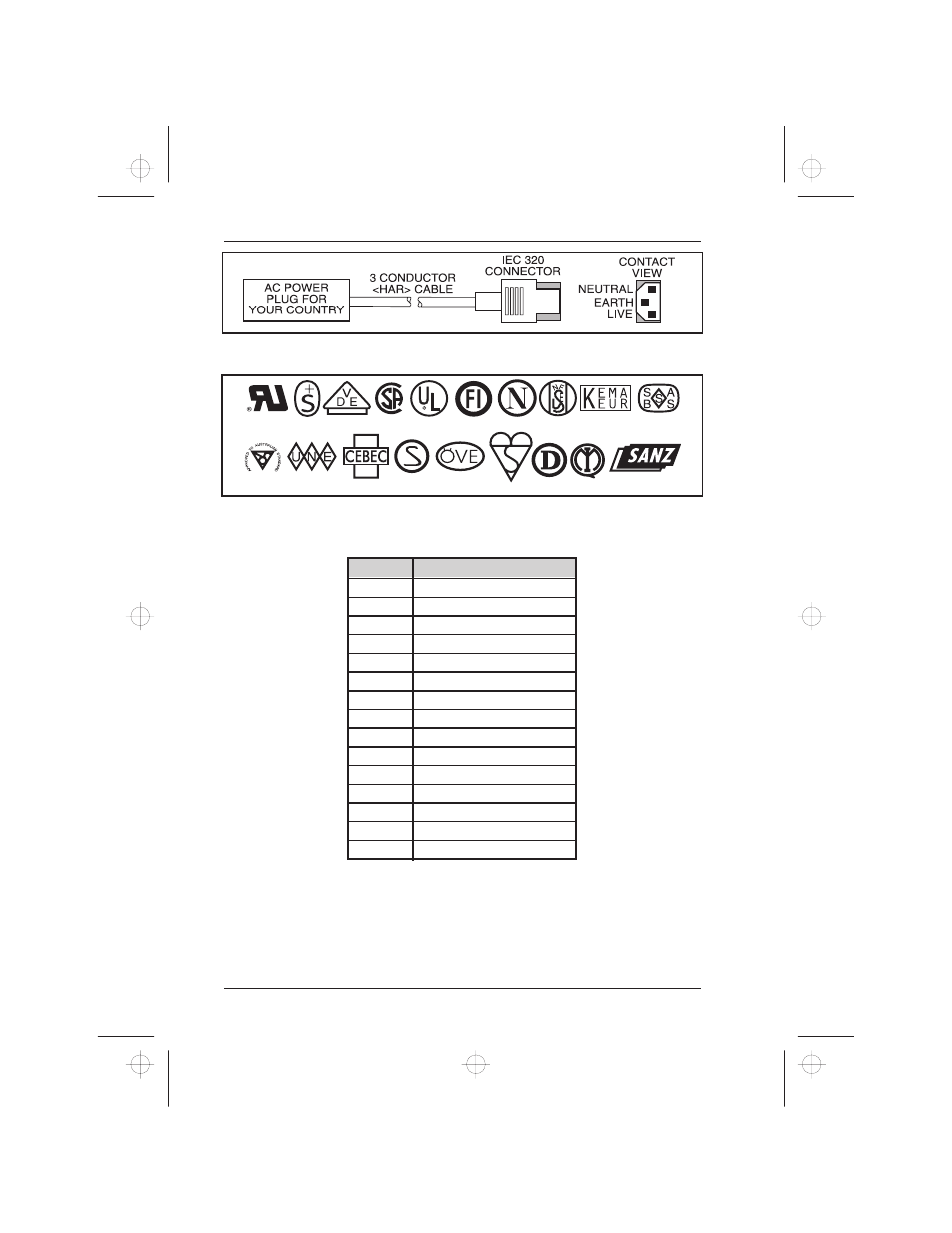

Figure 9. 230 VAC Power Line Cord
Figure 10. Examples of International Safety Organizations
Table 6. Parallel Pinouts
Pin No. Description
1 Strobe
2-9 Data Bits 0-7
10 Acknowledge
11 Busy
12 Paper end
13 Select
14-17 Not used
18 +5 V @ 0.75 A
19-30 Ground
31 Not used
32 Error/fault
33 Ground
34 Not used
35 +5 V through 3.3 K
36 Select
