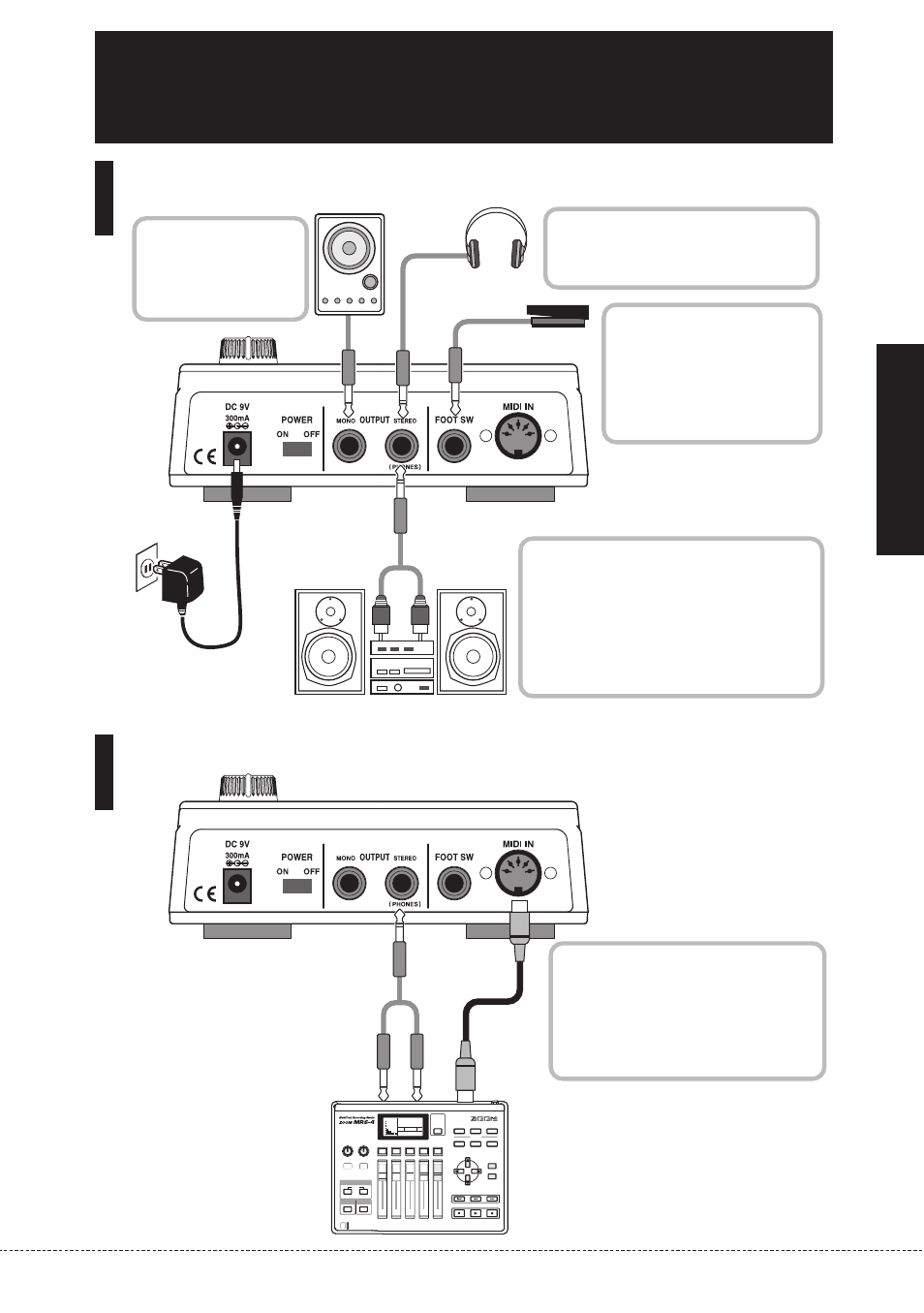

Connection Example 1
Getting
Connected
ZOOM MRT-3
7
Getting Connected
For mono playback,
connect a mono cable
to the [OUTPUT
MONO] jack.
FS01
For stereo playback, connect a Y cable
to the [OUTPUT STEREO/PHONES]
jack and plug the other end of the
cable into the L/R channel inputs of an
audio system or two channels of a
mixer assigned to left and right
positions.
To monitor the sound with
headphones, plug the phones into the
[OUTPUT STEREO/PHONES] jack.
If you connect the optional
foot switch FS01 to the
[FOOT SW] jack, you can
control start/stop and switch
the sound of the MRT-3 with
your foot.
To synchronize the unit with a MIDI
sequencer/recorder that has a MIDI
clock output, connect a MIDI cable
from the MIDI OUT connector of
the device to the [MIDI IN]
connector of the MRT-3.
MRS-4
MIDI OUT AUX IN
Headphones
Monitor system
AC adapter
Connection Example 2
