Yamaha DSP-AX463 - Manual (Page 20)

18
En

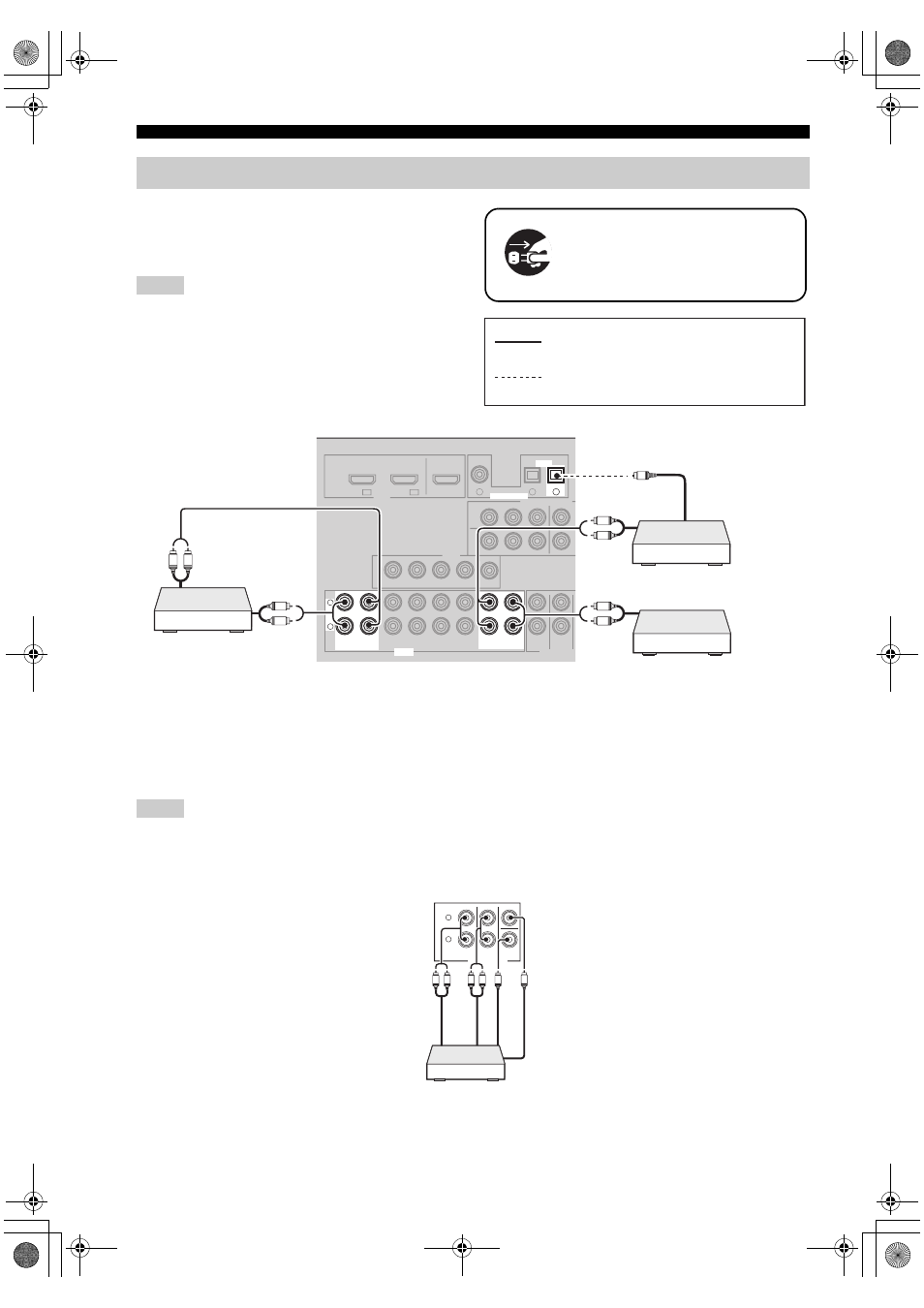

Connections
Connect the audio components as follows.
■ Connecting a CD player, a CD recorder/
MD recorder, and a tuner
• When you connect your CD player via analog and digital
connection, priority is given to the signal input at the DIGITAL
INPUT jack.
• To make a digital connection to a component other than the
default component assigned to each DIGITAL INPUT jack,
select the corresponding setting in “INPUT ASSIGNMENT”
(see page 55).
■ Connecting a multi-format player or an external decoder
This unit is equipped with 6 additional input jacks (FRONT L/R, SURROUND L/R, CENTER and SUBWOOFER) for
discrete multi-channel input from a multi-format player, external decoder or sound processor. Connect the output jacks
on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to match the left and right
output jacks to the left and right input jacks for the front and surround channels.
• When you select the component connected to the MULTI CH INPUT jacks as the input source (see page 33), this unit automatically
turns off the digital sound field processor, and you cannot select sound field programs.
• This unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that
you connect a 5.1-channel speaker system before using this feature.
Connecting audio components
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
Notes
indicates recommended connections
indicates alternative connections
Notes
MONITOR
OUT
L
R
DTV/CBL DVR DVD
MD/
CD-R
OUT
(REC)
IN
(PLAY)
OUT IN
DTV/CBL DVR DVD OUT IN
CD TUNER W SURROUND
MULTI CH INPU AUDIO
VIDEO
FRONT
1 2 3 DTV/CBL
DTV/CBL CD
OUT DVD
DVD
OPTICAL COAXIAL
DVD
P R P B Y P R
MONITOR OUT
COMPONENT VIDEO
HDMI DIGITAL INPUT
VIDEO
IN1 IN2
L
R
MD/
CD-R
OUT
(REC)
IN
(PLAY) CD TUNER
AUDIO
3
CD
OPTICAL
DIGITAL INPUT
L R
L
R
O
R
L
R
L
CD player
CD recorder or
MD recorder
Audio out
Optical out
Audio in
Audio out
Audio out
Tuner
FRONT
CENTER
SURROUND SUB WOOFER
L
R
MULTI CH INPUT
L R L R
Subw
o
o
fe
r o
u
t
Multi-format player/
External decoder
Cent
er o
u
t
Su
rr
ou
nd o
u
t
Fr
on
t ou
t
