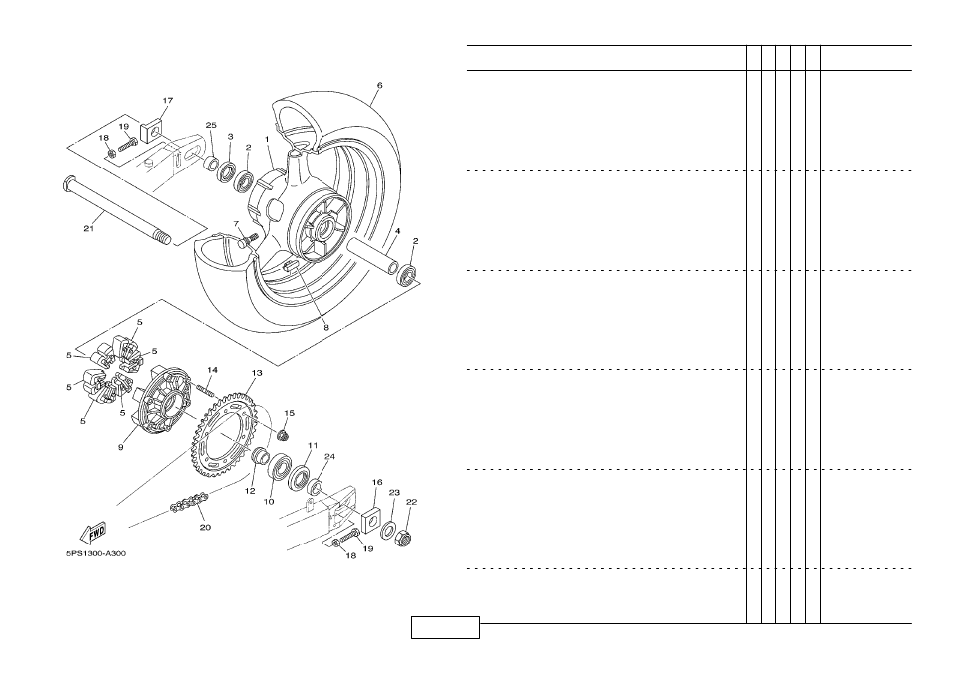

FIG. 30 REAR WHEEL
1 5PS−25338−00−33 CAST WHEEL, REAR 1 1 YB
2 93306−07806 BEARING 2 2
3 93106−35042 OIL SEAL 1 1
4 5PS−25317−00 SPACER, BEARING 1 1
5 5EA−25364−00 DAMPER 6 6
6 94116−17008 TIRE (160/60ZR17 M/C(69W) D220ST) 1 1 UR DUNLOP
* TIRE (160/60ZR17 M/C(69W) MEZ4J) 1 1 UR LM METZELER
7 93900−00030 VALVE, RIM 1 1
8 5MT−25398−00 BALANCER, WHEEL (10G) 1 1 UR
5MT−25398−10 BALANCER, WHEEL (20G) 1 1 UR
5MT−25398−20 BALANCER, WHEEL (30G) 1 1 UR
9 5PS−25366−00 CLUTCH, HUB 1 1
10 93306−20644 BEARING 1 1
11 93106−40041 OIL SEAL 1 1
12 4FM−25377−00 COLLAR, WHEEL 1 1
13 5PS−25442−00 SPROCKET, DRIVEN (42T) 1 1
14 90116−10575 BOLT, STUD 6 6
15 95607−10200 NUT, SELF−LOCKING 6 6
16 5EB−25388−00 PULLER, CHAIN 1 1 1
17 5PS−25389−00 PULLER, CHAIN 2 1 1
18 95307−08600 NUT 2 2
19 90101−08766 BOLT 2 2
20 94581−46118 CHAIN (D.I.D.525HV−118LE) 1 1
21 4FM−25381−10 AXLE, WHEEL 1 1
22 90185−24165 NUT, SELF−LOCKING 1 1
23 90201−257R5 WASHER, PLATE 1 1
24 5PS−25376−00 COLLAR, WHEEL 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
