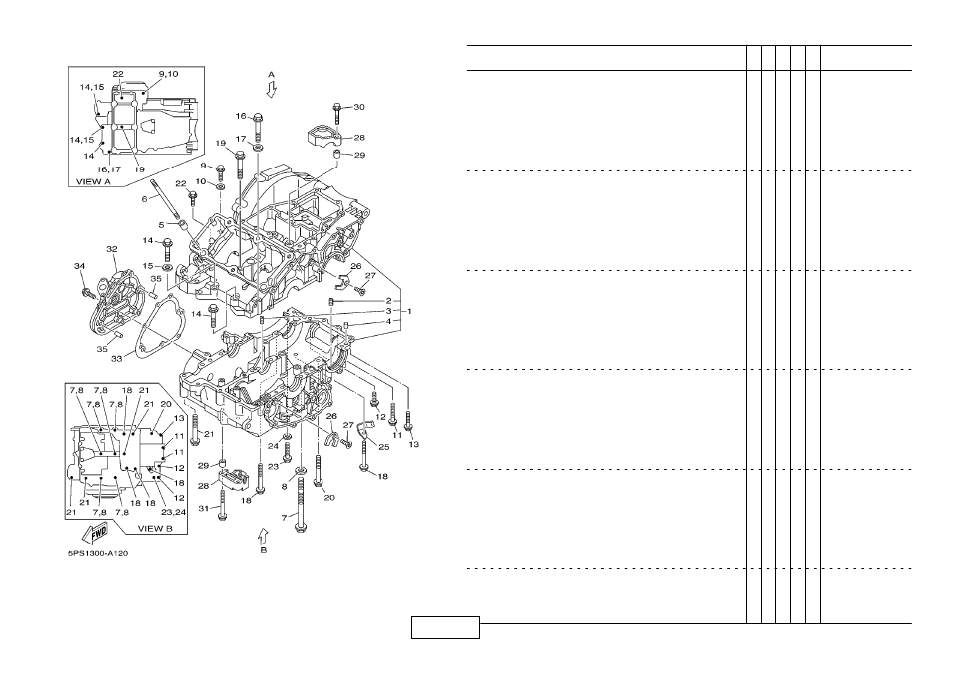

FIG. 12 CRANKCASE
1 5PS−15100−00 CRANKCASE ASSY 1 1
2 4XV−15138−00 .NOZZLE 1 1 1
3 4G0−15138−00 .NOZZLE 1 1 1
4 99530−10114 .PIN, DOWEL 1 1
5 99530−14016 PIN, DOWEL 2 2
6 3LD−11361−00 BOLT, CYLINDER HOLDING 1 6 6
7 90105−10560 BOLT, FLANGE 6 6
8 90201−11597 WASHER, PLATE 6 6
9 95814−06040 BOLT, FLANGE 1 1
10 90201−066F0 WASHER, PLATE 1 1
11 95817−06055 BOLT, FLANGE 2 2
12 95817−06020 BOLT, FLANGE 2 2
13 95817−06030 BOLT, FLANGE 1 1
14 95814−08050 BOLT, FLANGE 3 3
15 90201−08087 WASHER, PLATE 2 2
16 95814−08060 BOLT, FLANGE 1 1
17 90201−08087 WASHER, PLATE 1 1
18 95817−06070 BOLT, FLANGE 4 4
19 95817−08065 BOLT, FLANGE 1 1
20 95814−08070 BOLT, FLANGE 1 1
21 95817−08075 BOLT, FLANGE 4 4
22 95817−06025 BOLT, FLANGE 1 1
23 95814−06040 BOLT, FLANGE 1 1
24 90201−066F0 WASHER, PLATE 1 1
25 90465−10028 CLAMP 1 1
26 3LD−15191−00 PLATE 2 2
27 90151−06008 SCREW, COUNTERSUNK 2 2
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
