Yamaha TDM900P - Manual (Page 35)

D
2

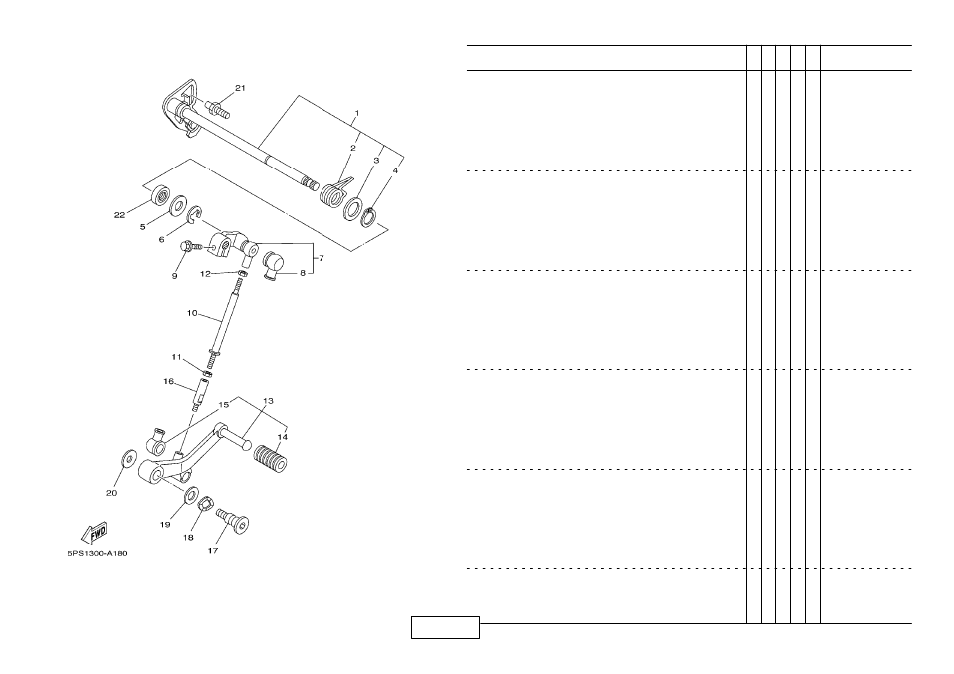

FIG. 18 SHIFT SHAFT
1 5PS−18101−00 SHIFT SHAFT ASSY 1 1
2 90508−32682 .SPRING, TORSION 1 1
3 90201−191J4 .WASHER, PLATE 1 1
4 99009−19400 .CIRCLIP 1 1
5 90201−12575 WASHER, PLATE 1 1
6 99001−10600 CIRCLIP 1 1
7 5PS−18130−00 SHIFT SHAFT ASSY 1 1
8 2H9−18154−00 .COVER, DUST 1 1
9 95827−06020 BOLT, FLANGE 1 1
10 2H9−18115−00 ROD, SHIFT 1 1
11 90170−06228 NUT (COUNTER CLOCKWISE) 1 1
12 95304−06700 NUT 1 1
13 5PS−18110−00 SHIFT PEDAL ASSY 1 1
14 5EB−18113−00 .COVER, SHIFT PEDAL 1 1
15 2H9−18154−00 .COVER, DUST 1 1
16 5PS−18116−00 JOINT, ROD 1 1 1
17 5JW−27434−00 BOLT 1 1
18 90206−12074 WASHER, WAVE 1 1
19 90201−12013 WASHER, PLATE 1 1
20 90201−080H1 WASHER, PLATE 1 1
21 4XV−18127−00 STOPPER, SCREW 1 1
22 93101−12004 OIL SEAL 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
