Getting Started
Loading Transfer Ribbon 18
980612-001 Rev. A GX420t / GX430t User Guide 12/14/07

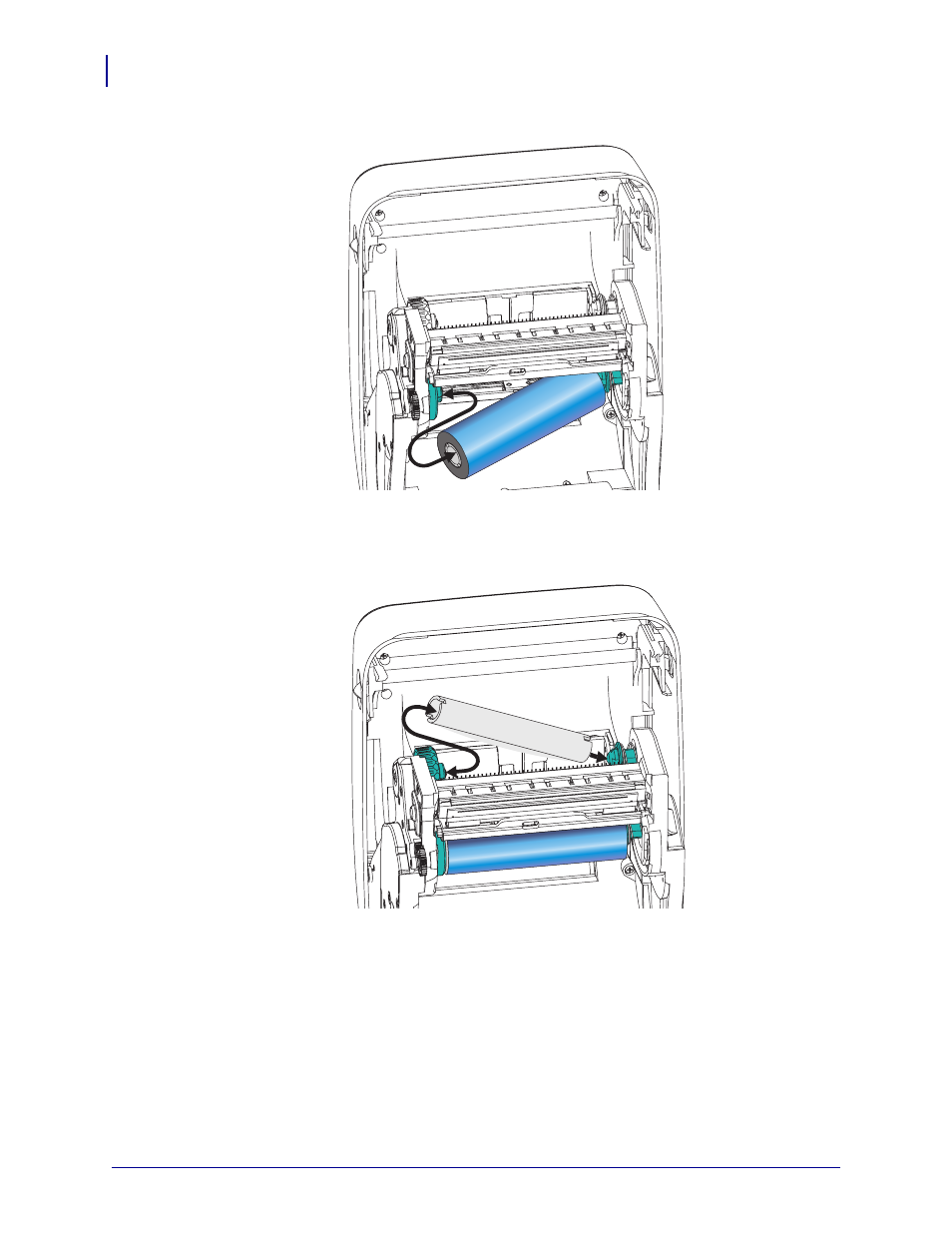

1. With the printer open, place a new ribbon roll on printer’s lower ribbon supply spindles.
Rotate the roll until the notches align and lock into the left side of the supply hub.
2. Place an empty ribbon core on printer’s take-up spindles. Rotate the ribbon core until the
notches align and lock into the left side of the take-up hub.
You can find your first ribbon take-up core in the packing box. Subsequently, use the
empty supply core to take up the next roll of ribbon.
