Ac input wiring - on-grid applications – Xantrex Technology DR1524W User Manual
Page 50
Installation
2–26
975-0012-01-02 Rev A
The following diagrams illustrate the AC wiring for the following basic
120/240 Vac scenarios. Consult your system design for other possible
configurations.
•
On-Grid Application (See Figure 2-18)
•
On-Grid using with a generator Backup (See Figure 2-19)
•
On-Grid Dual-Inverter Application (See Figure 2-20)
•
Off Grid Application using a 120 Vac Generator (See Figure 2-21)
•
Off-Grid Application using a 240 Vac Generator (See Figure 2-22)
•
Off-Grid Dual-Inverter Application (see Figure 2-23)
AC Input Wiring - On-Grid Applications
Follow the example below to complete the wiring for an on-grid application.

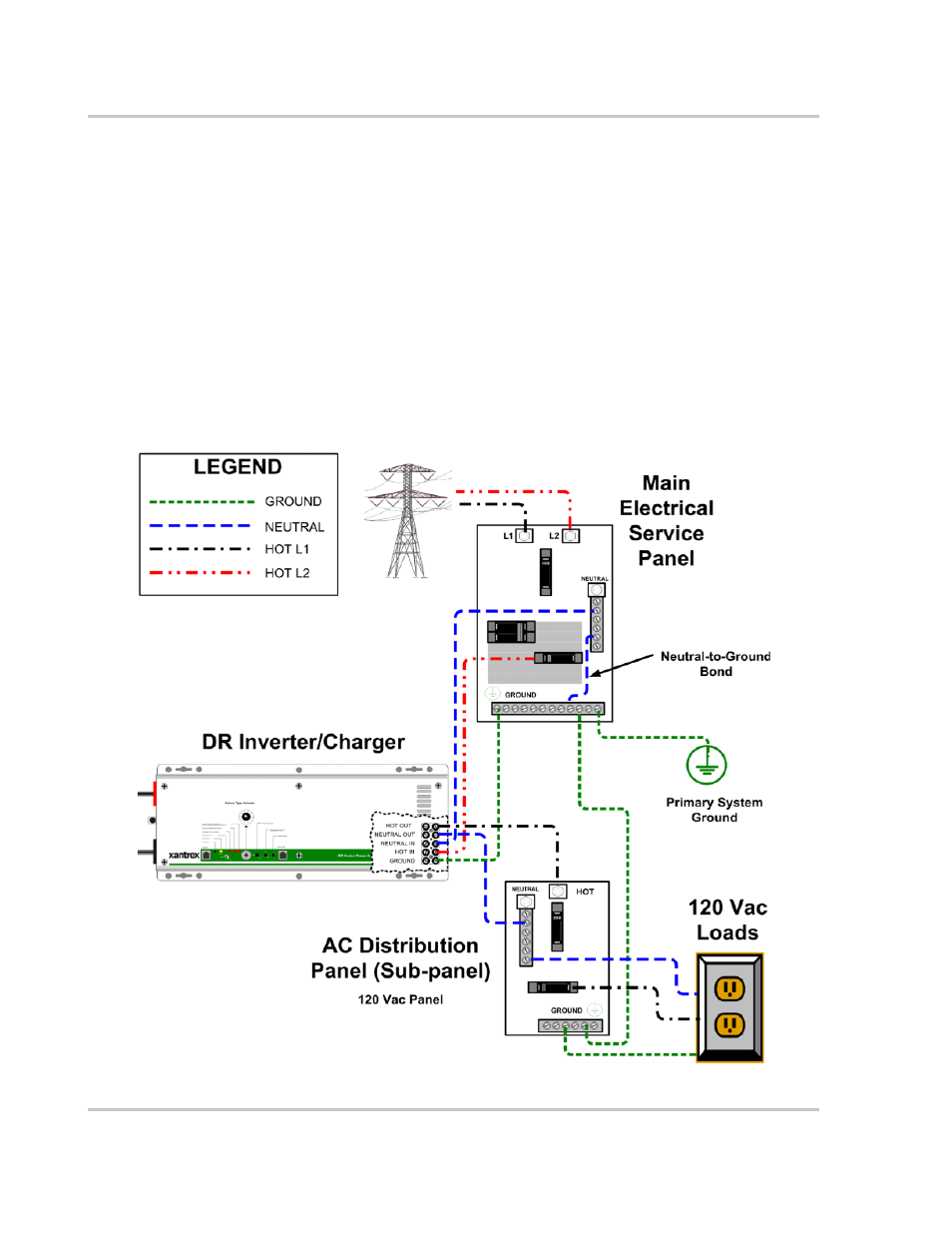

Figure 2-18 AC Wiring- On-Grid Application
