Prestige 630 ADSL USB Modem

Installing Your Modem

2-5

Step 4. Click the menu bar icon and select Connect.

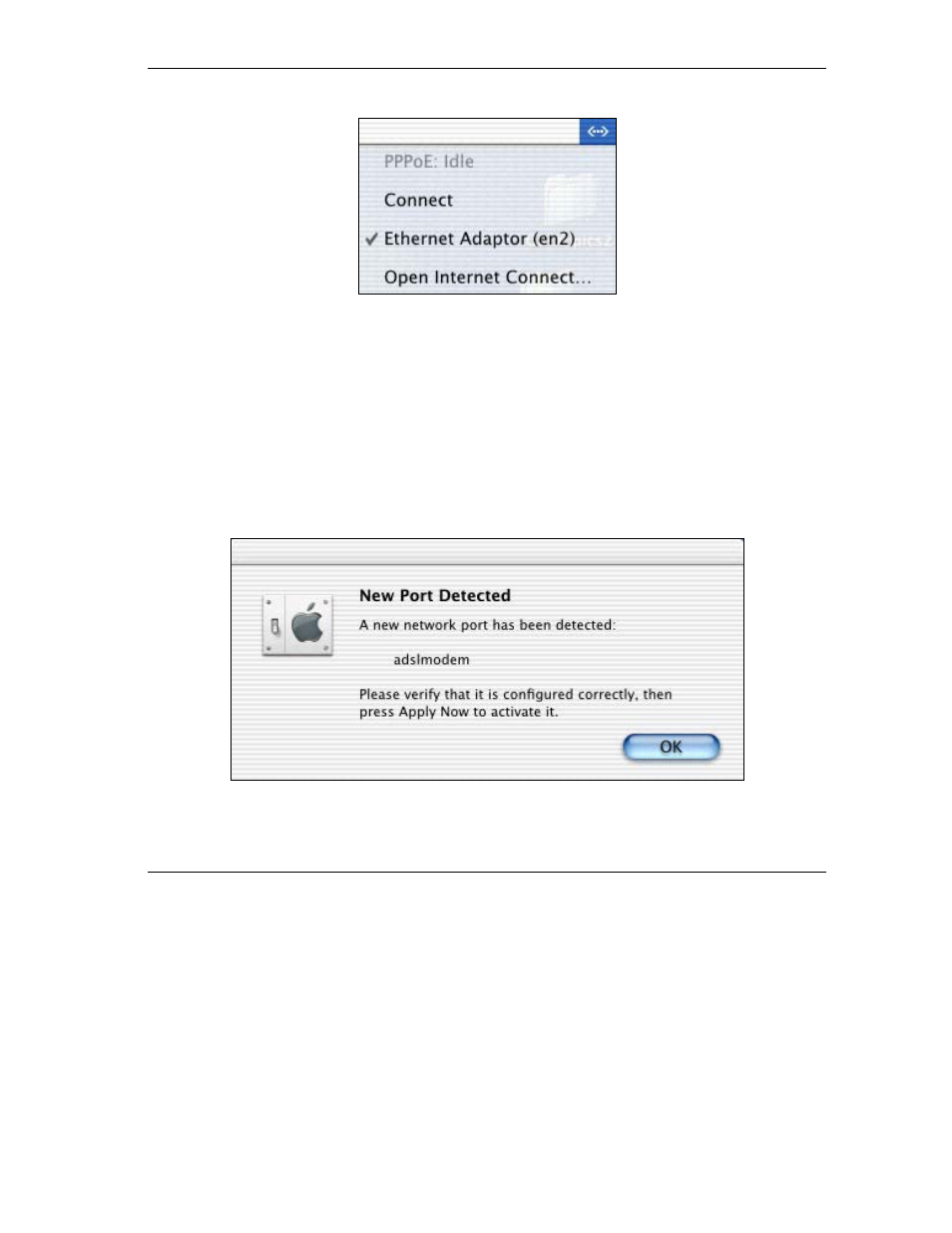

Figure 2-6 PPPoE Icon Connect

2.3 Making a DSL Connection with PPPoA

Use the following steps to configure your Macintosh when using a PPPoA driver. PPPoA is a dial-up
connection, so you configure the driver and create a dial-up connection to use. The dial-up connection is not
necessary with RFC 1483.
Step 1. Click the Apple icon and System Preferences and then Networking (see Figure 2-1 and Figure

2-2).

Step 2. A New Port Detected screen opens when the computer detects that the ADSL link is up. Click

OK.

Figure 2-7 New Port Detected

Step 3. In the Network screen, select adslmodem.
