INSTALLATION AND ASSEMBLY

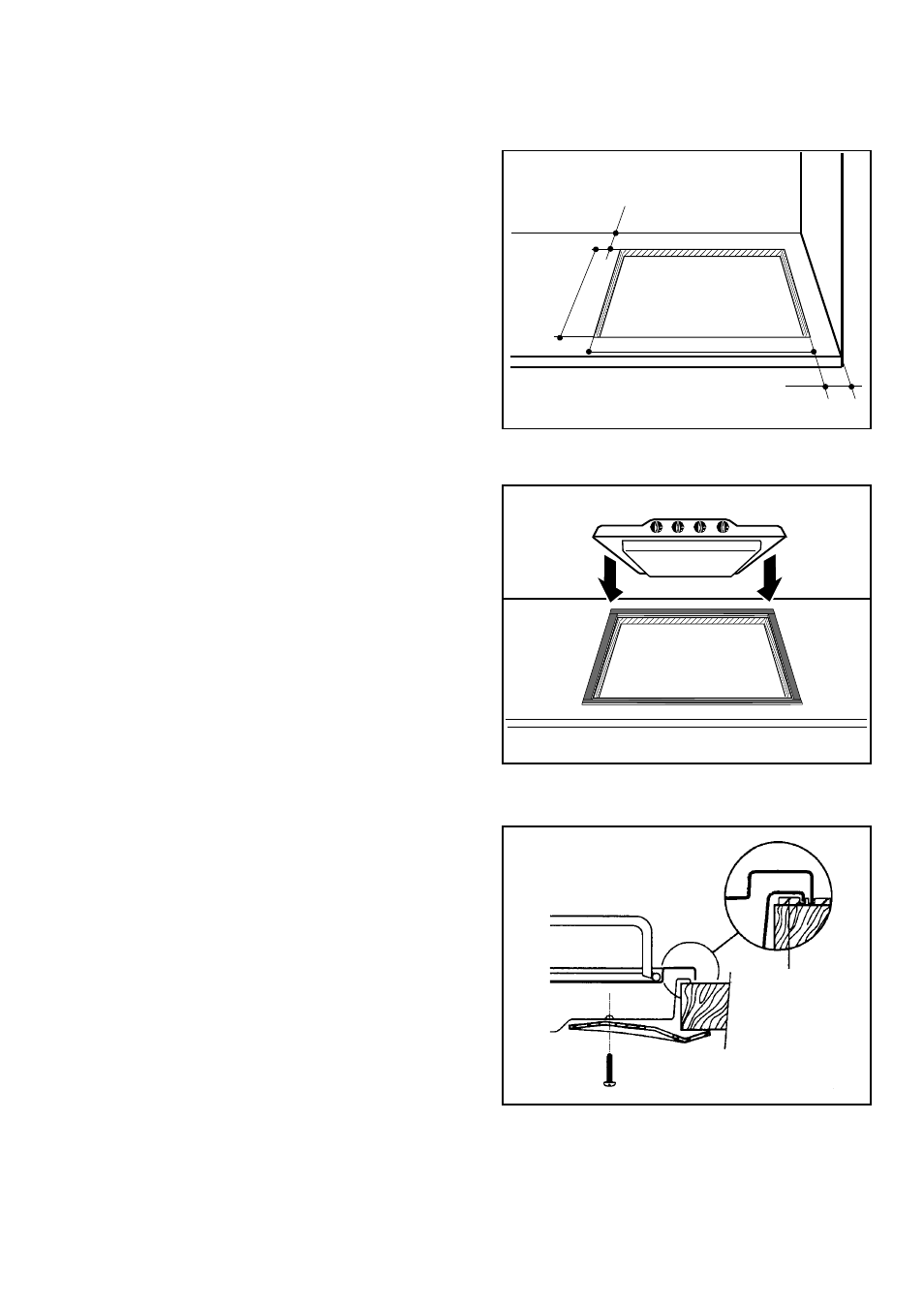

These hobs can be installed in a kitchen unit with an
opening for insertion whose dimensions are shown in
Fig. 13.
The edge of the cut out must have a minimum distance
from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near
the hob, the cut out edges must have a minimum
distance of 100 mm. as shown in Fig. 13.

Carry out the building in of the hob as follows:

•

put the relevant sealings, supplied with the hob, on
the edges of the cut out, as shown in Fig. 14, taking
care that the sealings meet without overlapping;

•

place the hob in the cut out, taking care of its
centring;

•

fix the hob with the relevant screws (Fig. 15). The
traction of the screws is able to trace the sealing, any
excess of which can then be easily removed.

The edge of the hob forms a double labyrinth seal
which provides a total guarantee against infiltration of
liquids.

Fig. 15

FO 0199

a) sealing

Fig. 13

Fig. 14

560

150 min

480

55 min.

FO 2038

FO 2239

100
