39

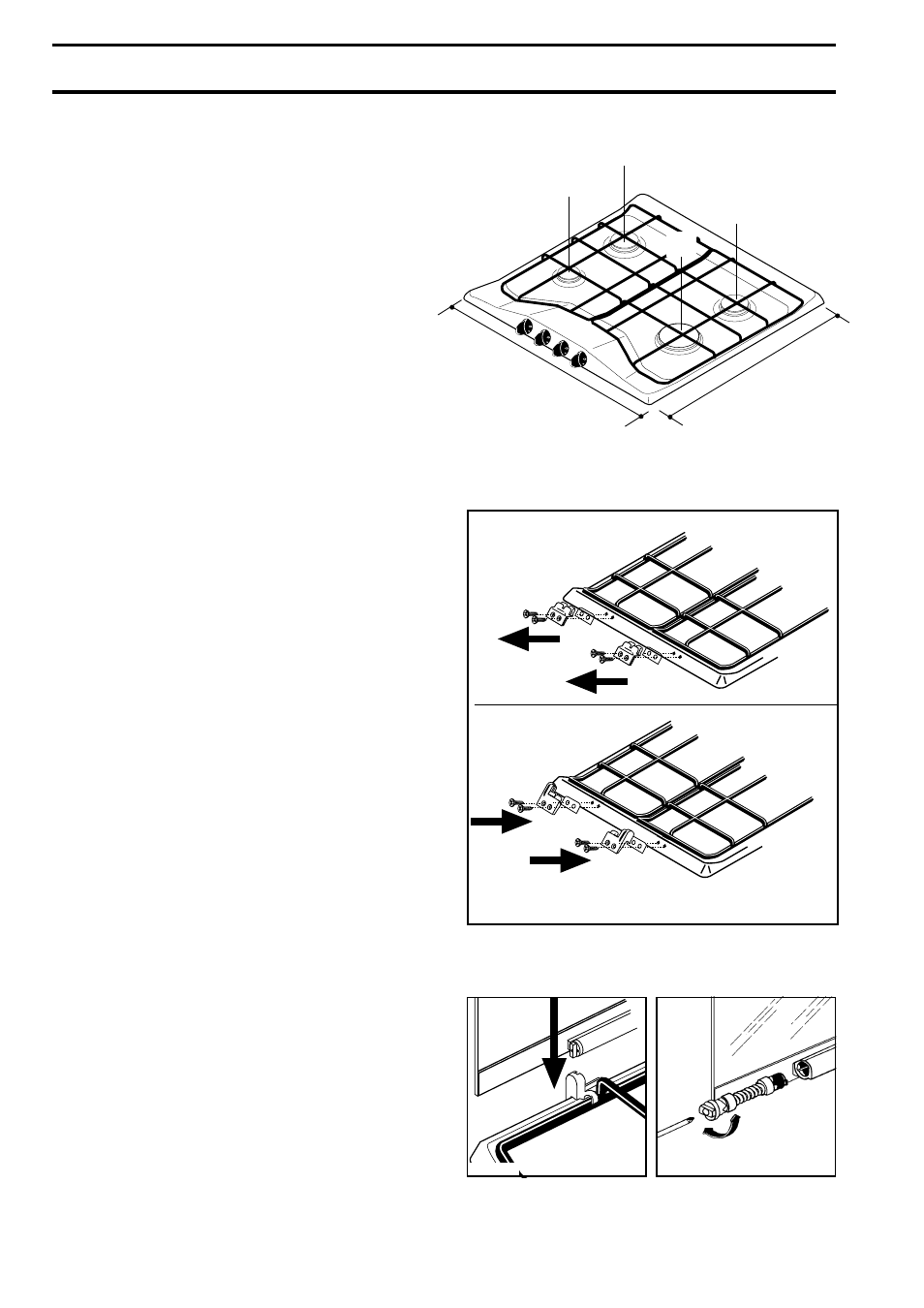

FITTING THE LID
We recommend the lid hinge block are fitted before
installing the hob into the worktop.
To install the lid onto the hob, proceed as follows:
a. Remove the right and left hand grid blocks fitted to
the back of the hob, by unscrewing the relevant
screws (fig. 10)
b. Fit the lid hinge blocks onto the hob, using the
original screws, ensuring that the relevant shims are
fitted between the hinge blocks and the hob (fig. 10);
c. Fit the left hand lid hinge (marked S) into the hinge
block (fig.11);
d. Carry out the same operation with the right hand lid
hinge (marked D).
ADJUSTING THE LID BALANCE
To adjust the lid balance, turn clockwise or anti-
clockwise the central screw of the right- and left-hand
hinges (fig. 12).
7. Building In
A = Auxiliary burner SR = Semirapid burner
R = Rapid Burner
These hobs can be inserted in a built-in kitchen unit
whose depth is between 550 and 600 mm. The hobs
dimensions are shown in Fig. 9.
Fig. 9
Fig. 10
Fig. 11 Fig. 12
FO 2036 FO 2037
510
580
A
SR
SR
R
FO 2035
