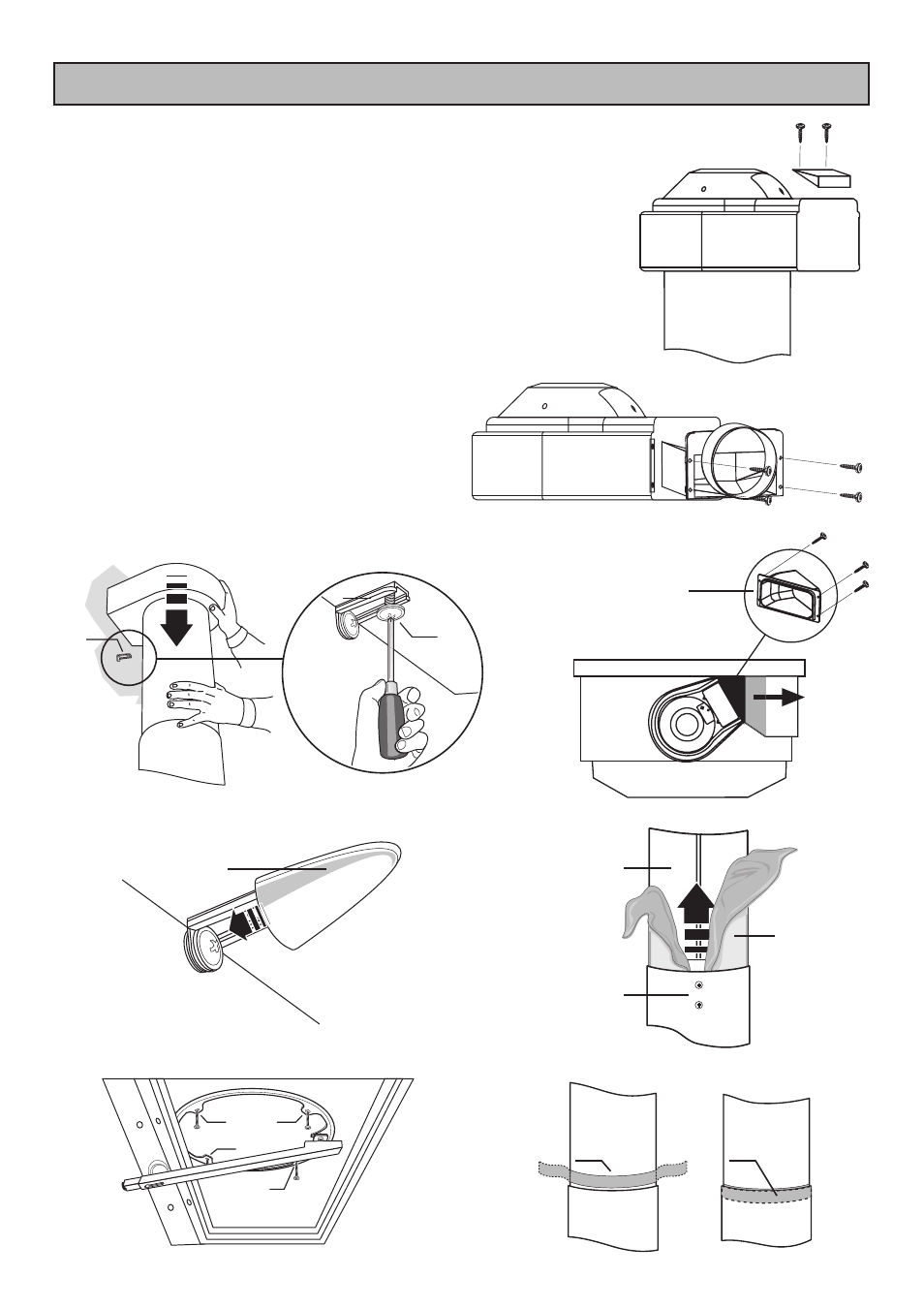

INSTALLATION INSTRUCTIONS
- Remove the plug from the upper part of the ducting fan unit, as it is not
possible to insert the flange F with the plug in place.
- Fit the flange F Ø120 or 150 mm,replace the plug.
· Air outlet directed to the right or left hand side.
- Remove the four screws fastening the plastic frame, as shown in figure .
- Fit the ducting spigot R and replace the four screws removed as above.
Fixing the chimney
a) Loosen the screws M fixing the two parts of the chimney and pull the
inner section I almost all the way out. Remove the protective film P .
b) Rest the lower section of the chimney in its housing on the top of the hood
canopy. Lower the ducting fan unit until it reaches the wall bracket S and
fix it using the screw H provided.Fit the cover D
(provided) on the wall bracket S.
c) Fix the chimney to the hood canopy C using the
four screws provided.
d) Insert the transparent seal Q (provided),so as to
eliminate any play between the two parts of the
chimney . Lock the screws M.
e) Remove the support rod B .
17
S07_16
R
S07_19
A08_21
S
S
H
A08_23
E E
E
E
A08_24
Q Q
A08_22
D
A08_20
M
I
P
