INSTALLATION INSTRUCTIONS
13
The versatility of the ducting fan unit on this hood
enables it to be installed in one of four different ways:
-
Air outlet directed upwards (re-circulation fitting
only).
- Air outlet directed towards the wall (ducting
fitting only).
- Air outlet directed to the right or left (ducting
fitting only).For correct installation of the hood,
please proceed in the following stages:
• Selection of the type of installation
• Installation of the hood canopy C
• Installation of the chimney A
• Ducting or re-circulation fitting
• Electrical connection and testing

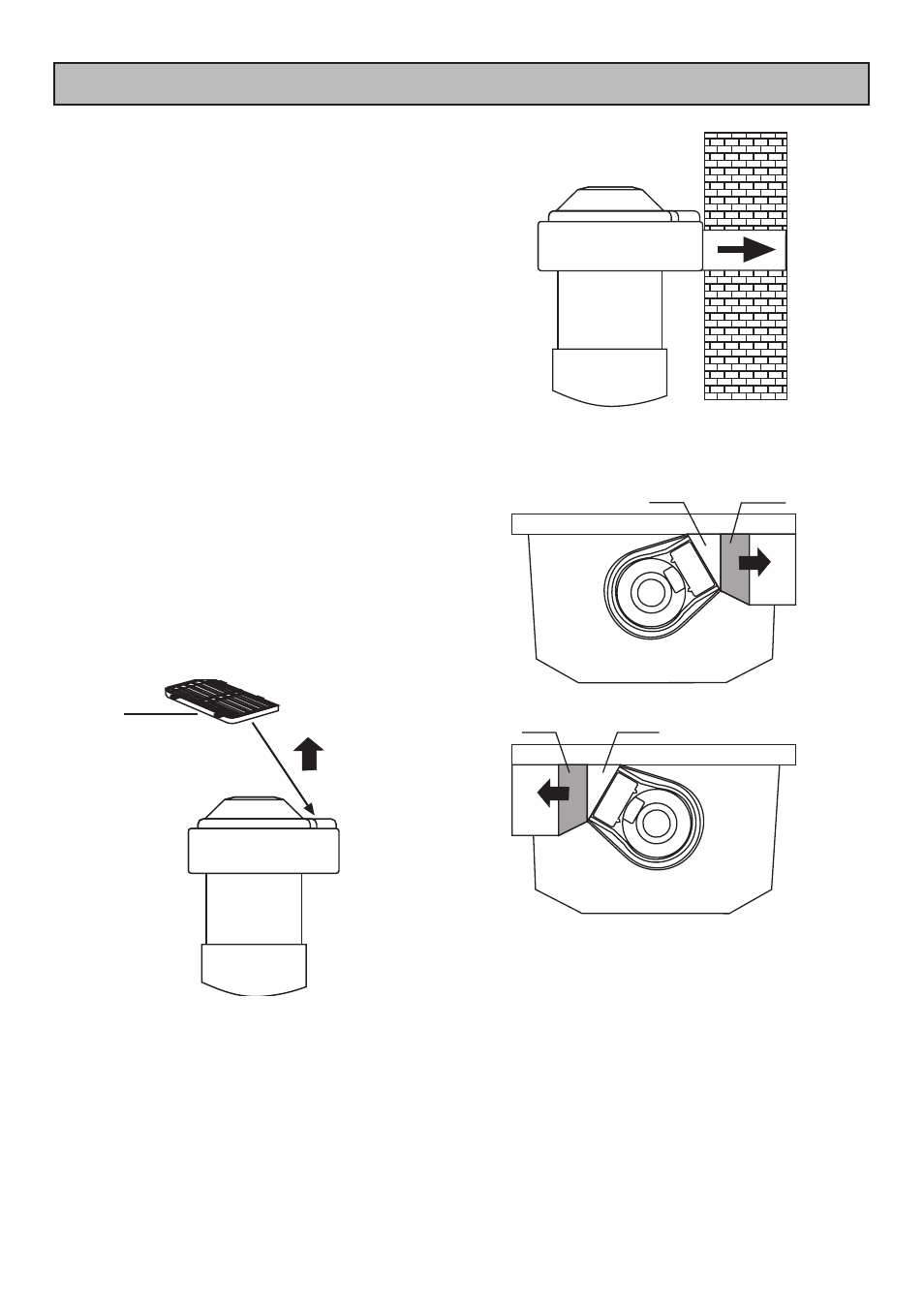

Selecting the type of installation
- Air discharge towards the top
In this case the hood can be used in filter mode
- Air discharge towards the wall
In this case the hood can only be used in suction
mode.
- Side air discharge, Lh or Rh.
In this case the hood can only be used in suction
mode.
G
S07_03
S07_30
R W
W R
