INSTALLATION INSTRUCTIONS
14

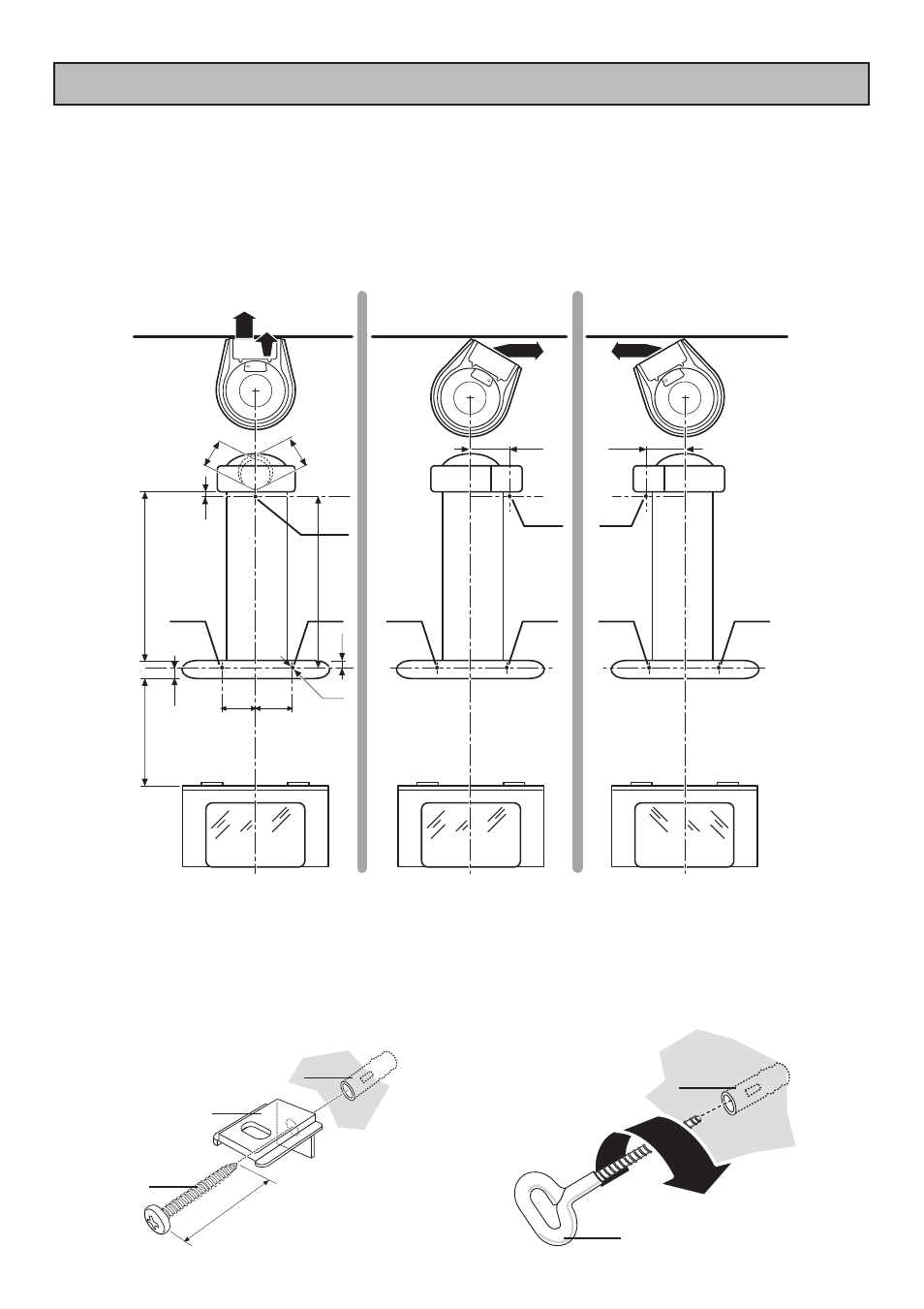

Installation of the hood canopy C
Drilling the wall
a) Using the cardboard template provided, mark on the wall the centres of holes 1 for fixing of the hood canopy
C .The centre of hole 2 for fixing the chimney, (a) air outlet directed upwards or towards the wall, (b-c) air
outlet to the right or left hand side, must be marked at a distance X from the line between holes 1,obtained by
measuring the extension Z of the chimney required for installation, plus 18 mm X =Z +25-7.Using a Ø8 mm
drill bit, drill the points marked in this way.
b) When installed with the air outlet directed towards the wall (a), it will be necessary to drill an air ducting
opening, measuring Ø120 mm, according to the diameter of the flange F provided.
Fitting the fixing elements
a) Insert the rawl plugs into holes 1 and 2 .
b) Fit the eye bolts O.
c) Fix the wall bracket S in hole 2 using the screw V (not supplied).
ш120
ш
150
100 100
ш 8
7
Z
X
39
25
650
105 105
S36_05
5a 5b 5c
2
1 1 1 1
2
1 1
2
L = 44 m
m
A08_07
V
S
2
A08_06
A
1
