Page 3
3

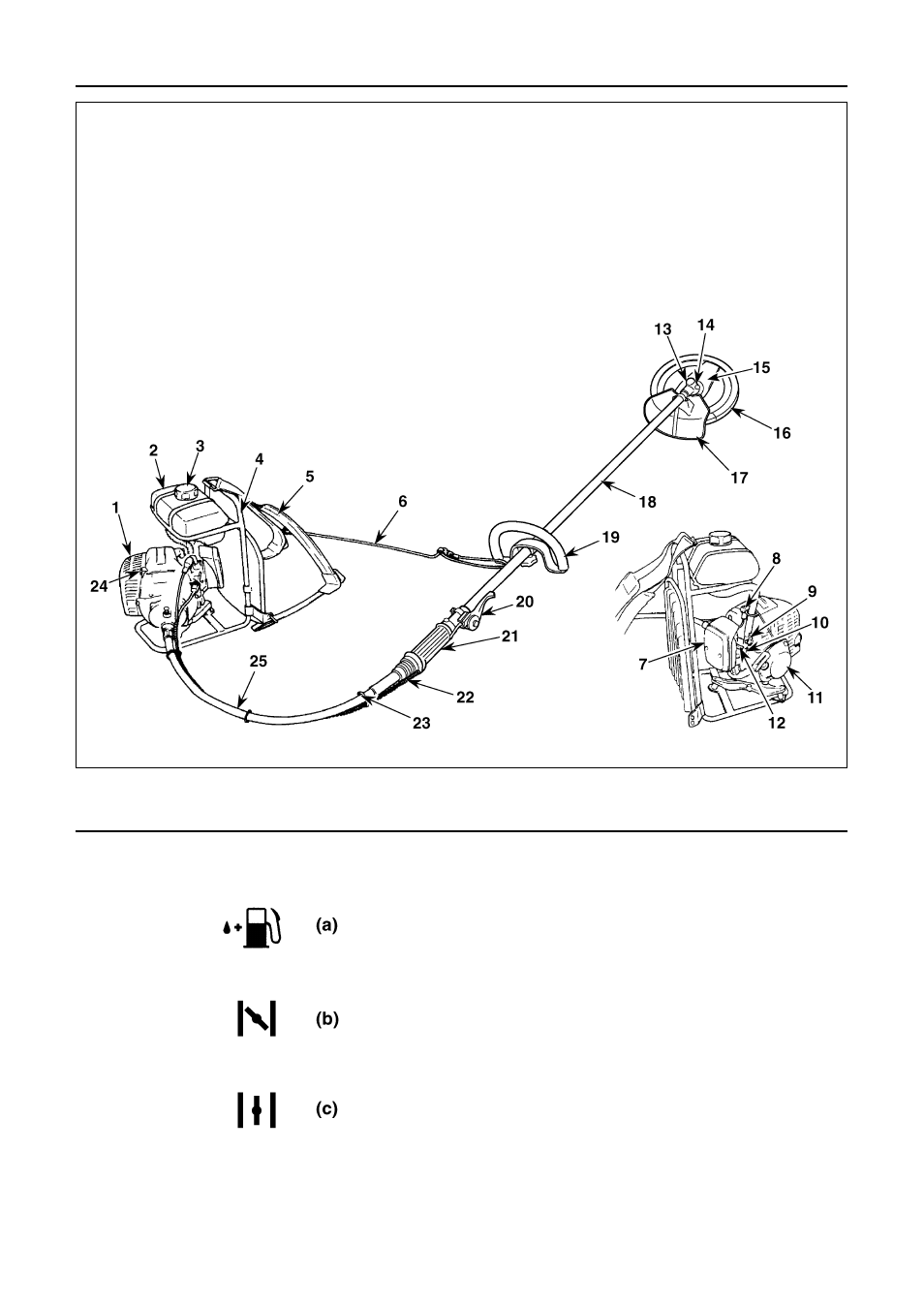

1. Muffler
2. Fuel tank
3. Fuel tank cap
4. Shoulder frame
5. Shoulder belt
6. Hanging belt
7. Air cleaner
8. Spark plug
9. Fuel cock
10. Carburetor
11. Recoil starter
12. Choke lever
13. Gear case
14. Tangle-prevention cover
15. Blade (Blade is not included)
16. Blade cover
17. Debris guard
18. Main pipe
19. Loop handle
20. Throttle lever
21. Right-hand grip
22. Throttle wire
23. Wire clamp
24. Engine stopping switch
25. Flexible shaft
2. Symbols on the machine
For safe operation and maintenance, symbols are carved
in relief on the machine. According to these indications,
please be careful not to take a mistake.
(a) The port to refuel the "MIX GASOLINE"
POSITION: FUEL TANK CAP
(b) The direction to close the choke
POSITION: AIR CLEANER COVER
(c) The direction to open the choke
POSITION: AIR CLEANER COVER
1. Parts Location
