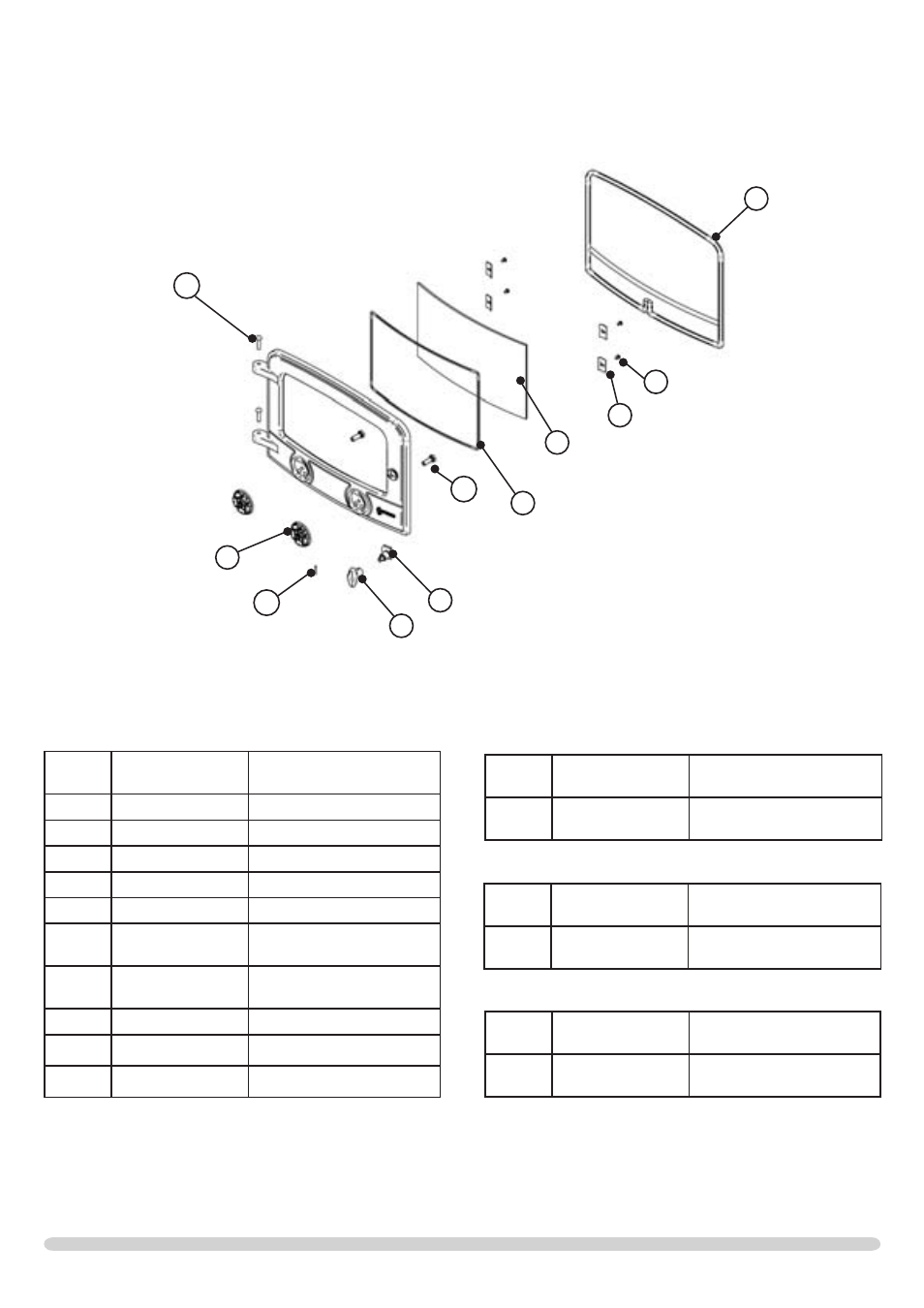

BASIC SPARE PARTS LIST
FOR EXE/DEVON/COUNTY 1 DOOR
1
10
6
11
2
8
7
9
3
4
5
COMMON PARTS FOR EXE/DEVON/COUNTY
1 DOOR
Diagram
No.
Part No. Description
1 4670 14mm Rope Seal Black
2 YM-F00001 M5 x 8 Machine Screw
3 YM-C00353 Standard Glass Clip
5 4974 3mm Rope Seal Black
6 YM-F00010 M10 x 35HH Spinner Bolt
7 YM-B00030CE Standard Twin Door M18
Door CAM
8 YM-C00328 Black Door Knob - 1 Door
Wood
9 YM-YM74058 Rose Spinner
10 YM-F00106 Door Hinge Pin 5/6"
11 YM-F00004 Spiral Pin 3 x 18mm
FOR EXE 1 DOOR
Diagram
No.
Part No. Description
4 GL0252 Stove Glass Devon/Exe CE
1 Door Large
Diagram
No.
Part No. Description
4 GL0252 Stove Glass Devon/Exe CE
1 Door Large
FOR DEVON 1 DOOR
Diagram
No.
Part No. Description
4 GL0254 Stove Glass County CE
1 Door Large
