Ⅵ Frequency characteristics
Adjustment of the VOLUME control, the HIGH CUT control and the PHASE switch should be changed depending on the room
size, the distance from the subwoofer to the main speakers, sources, etc.
Following figures show the optimum adjustment of each control and the frequency characteristics when this subwoofer is
combined with NX-430P.

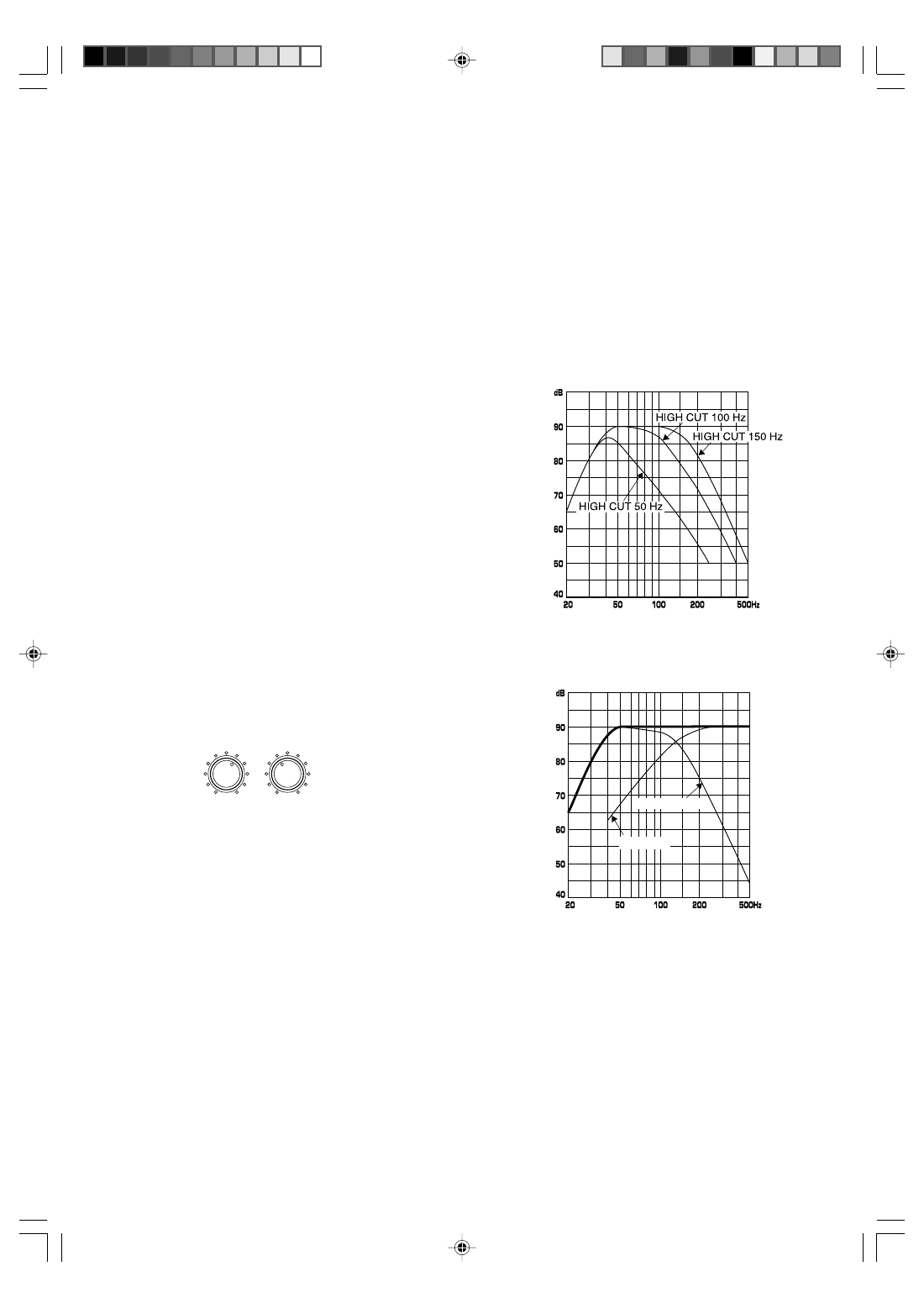

Frequency characteristics of this subwoofer
(YST-SW015)
● When combined with NX-430P
PHASE–Set to the REV
(reverse) position.
B.A.S.S.–MOVIE HIGH CUT 50–150Hz VOLUME 0–10
100
YST-SW015
NX-430P
