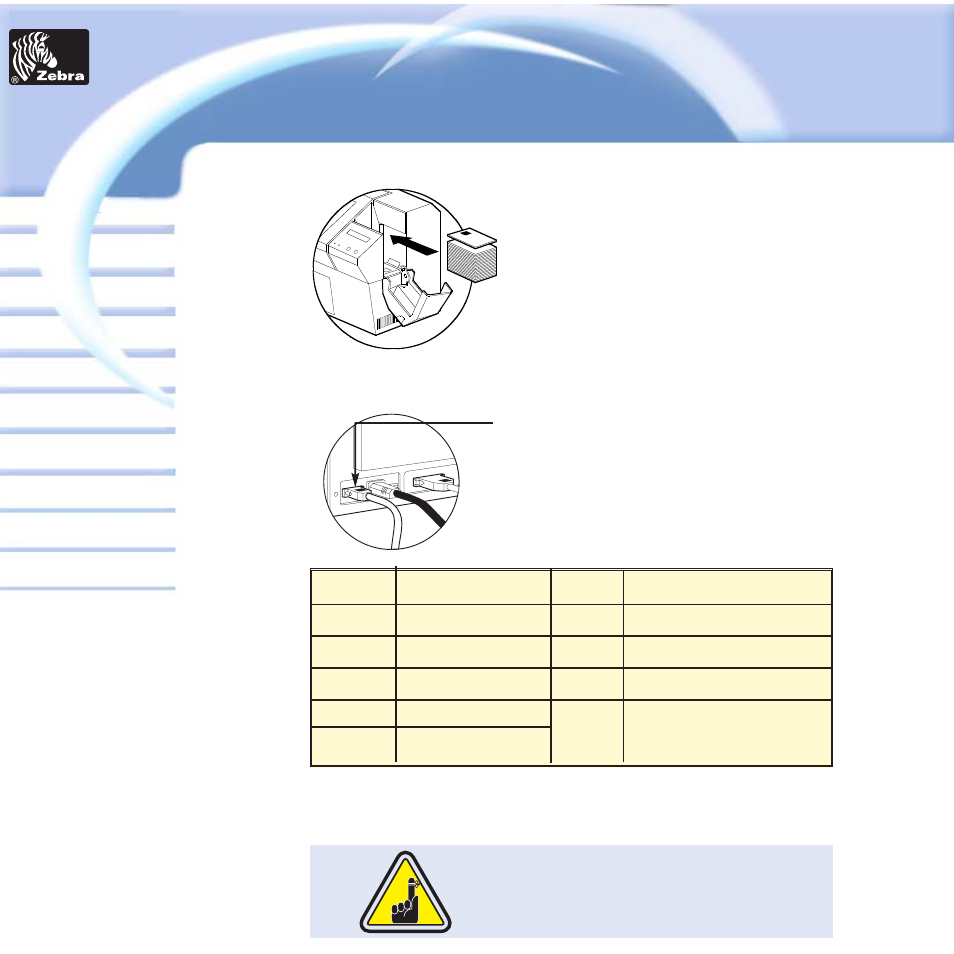

A - MEDIA LOADING ORIENTATION
Position the cards with the Smart Card Chip at
the top of the card and towards the printer.
B - SMART CARD CONTACT STATION INTERFACE
When a command to the parallel printer
interface sends a card to the Smart Card
Contact Station, the printer connects the Smart
Card Contact Station to the female DB-9
connector on the rear of the printer.
An attached external Smart Card Programmer
can be used to program Smart Card chips.
Refer to the Card Printer Programmer’s Manual for complete programming
information.
DB - 9 SMART CARD DB - 9 SMART CARD
PINS CONTACT POINTS PINS CONTACT POINTS
1 CI (VCC) 6 C6 (Vpp)
2 C2 (Reset) 7 C7 (I/O)
3 C3 (Clock) 8 C8 (RFU)
4 C4 (RFU)
5 C5 (GND)
9 (GND when chip is at station)
DO NOT position printing over the Smart Card Chip.
