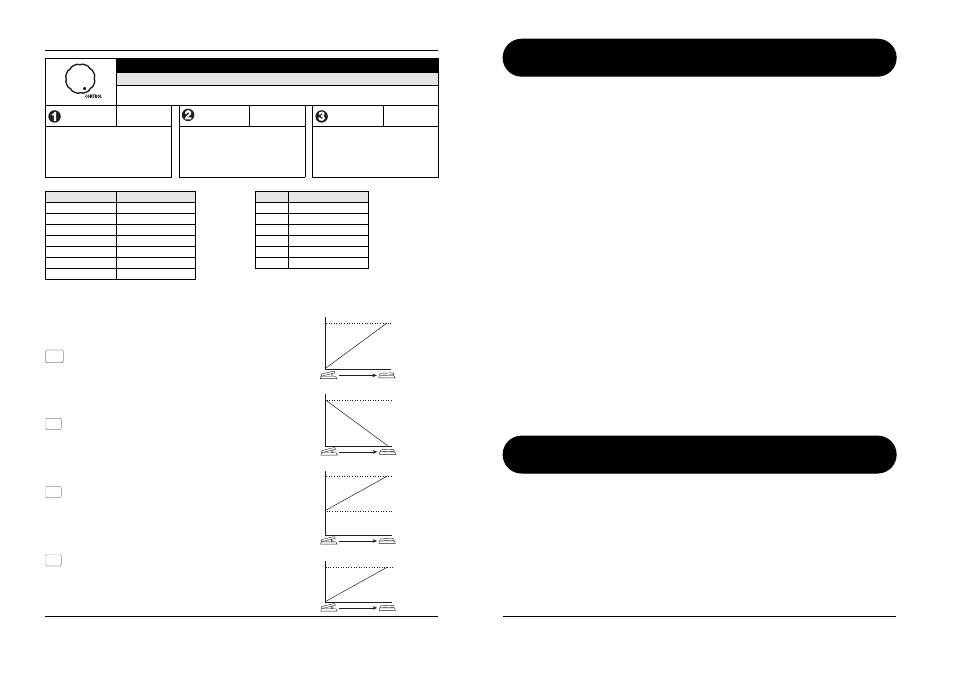

Effect Types and Parameters
ZOOM G2 30
"UP"
Maximum value
Minimum value
Maximum value
Maximum value
Value set in patch
Value set in patch
Minimum value
Minimum value
"DOWN"
"HIGH"
"LOW"
CONTROL
CONTROL module
Serves for making pedal settings and lets you control the foot switch function and master
level setting applying to all patches.
RTM DESTINATION See Table 4 FS See Table 5 MASTER LEVEL 0 – 98, 1.0
When an expression pedal (FP01/FP02)
is connected to the [CONTROL IN]
jack, this selects the modulation target
module for the RTM function (See Table
4).
When a foot switch (FS01) is connected
to the [CONTROL IN] jack, this selects
the function that can be operated with
the foot switch (See Table 5). The
function selected here applies to all
patches.
Adjusts the master level for all patches.
Table 4 Table 5
Setting Modulation target Setting Function
oF OFF bP Bypass/Mute
VL Volume tP Tap tempo
WU, Wd, WH, WL WAH/EFX module (*) bU Bank up
GU, Gd, GH, GL DRIVE module (*) rH Rhythm function on/off
MU, Md, MH, ML MOD/SFX module (*) dH Delay hold
dU, dd, dH, dL DELAY module (*) dM Delay mute
rU, rd, rH, rL REVERB module (*)
The operation of modules denoted by (*)
changes as follows, according to the letter at
right.
UP
The parameter is at minimum when the pedal is
fully raised and at maximum when the pedal is fully
pushed down.
DOWN
The parameter is at maximum when the pedal is
fully raised and at minimum when the pedal is fully
pushed down.
HIGH
When the pedal is fully raised, the parameter is at
the value set in the patch. When the pedal is fully
pushed down, the parameter is at maximum.
LOW
When the pedal is fully raised, the parameter is at
minimum. When the pedal is fully pushed down,
the parameter is at the value set in the patch.
U
D
H
L
ZOOM G2 31
Specifications
Effect types 54
Effect modules Max. 9 simultaneous modules
Patches User area: 10 patches x 4 banks
Preset area: 10 patches x 4 banks
Sampling frequency 96 kHz
A/D converter 24 bit, 64 times oversampling
D/A converter 24 bit, 128 times oversampling
Signal processing 32 bit
Frequency response 20 Hz – 40 kHz +1 dB -3 dB (with 10 kilohms load)
Display 2-digit 7-segment LED
Parameter LEDs
Input Standard mono phone jack
Rated input level -20 dBm
Input impedance 1 megohm
Output Standard stereo phone jack (doubles as line and headphone jack)
Maximum output level Line: +5 dBm (output load impedance 10 kilohms or more)
Phones: 20 mW + 20 mW (into 32 ohms load)
Control input For FP02/FS01
Power requirements
AC adapter 9 V DC, 300 mA (center minus plug) (ZOOM AD-0006)
Batteries Four IEC R6 (size AA) batteries,
Approx. 7.5 hours continuous operation (alkaline batteries)
Dimensions 162 mm (D) x 156 mm (W) x 65 mm (H)
Weight 700 g (without batteries)
Options Expression pedal FP02/ Foot switch FS01
• 0 dBm = 0.775 Vrms
• Design and specifications subject to change without notice.
Troubleshooting
● No power
Refer to "Turn power on" on page 8.
● Reverb effect does not operate
While a rhythm pattern is playing, the reverb effect is not available. Stop the rhythm pattern first
(
→ p. 12).
● High level of noise
Is ZOOM AC adapter being used? Be sure to use only adapter for 9 V DC, 300 mA with center
minus plug (ZOOM AD-0006).
● Battery life is short
Are manganese batteries being used? The use of alkaline batteries is recommended.
