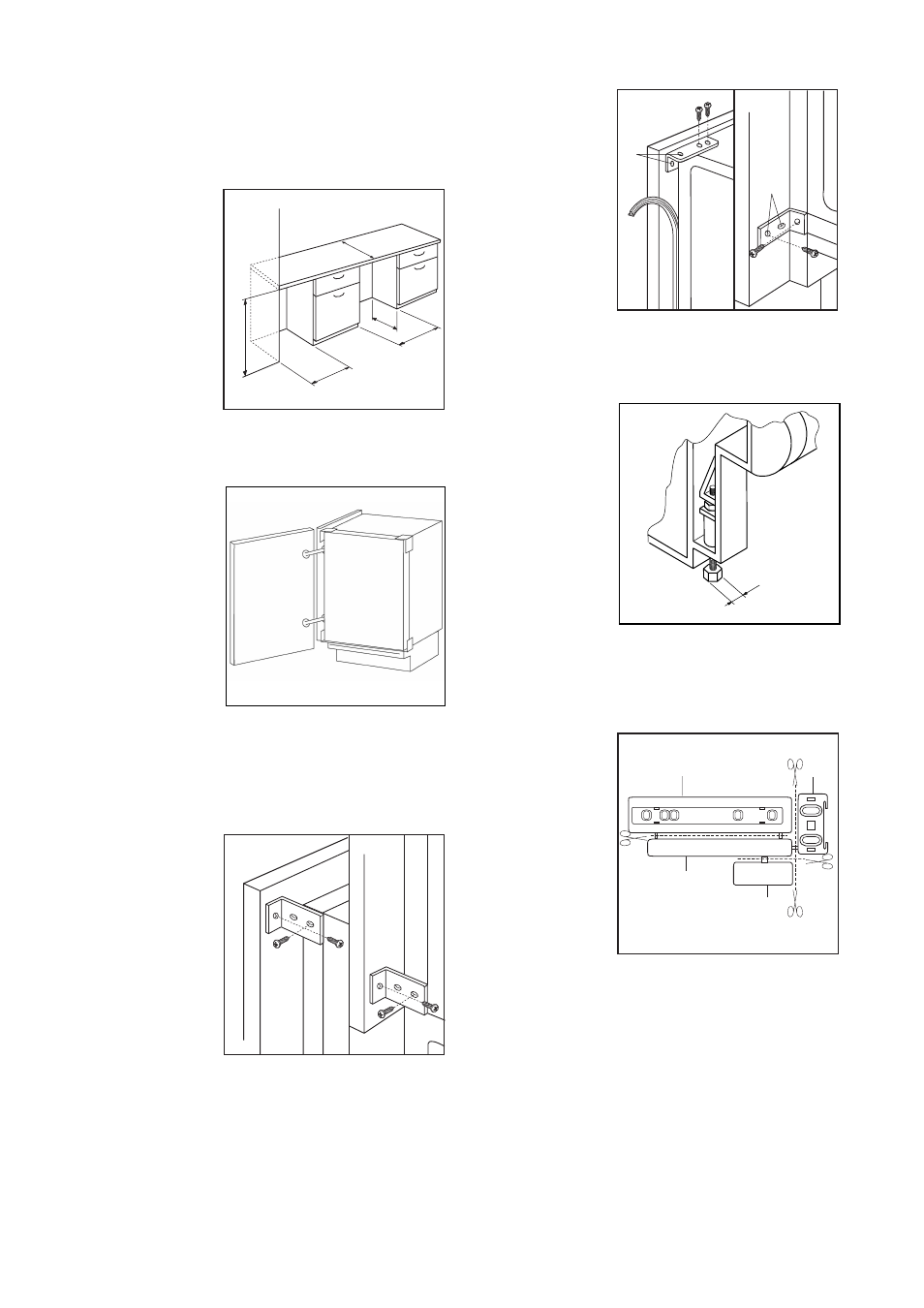

Building the appliance in under a
worktop
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
The appliance could be inserted between two units
(a) or as an end unit (b).
S.I.004
600
550
600
600
820 - 870
b
a
min
If the appliance is to be installed between two units
with a matching furniture door/support panel, the
door/panel must be fitted to the adjacent unit using
suitable hinges (not supplied) before the appliance is
installed.
D326
SUPER. INFER. UPPER LOWER
1. Fasten the side panel to the rear of the appliance
with the fixing brackets.
D319
E
E
SUPER. INFER. UPPER LOWER
2. Fasten the appliance to the worktop or the sides,
applying the sealing strip between the refrigerator
and adjacent cabinet using the fixing brackets (E).
S.I.006
30
3. The appliance is equipped with adjustable support
feet. To adapt the appliance to the height of the
installation area (max 870 mm), screw in, or screw
out the feet situated at each bottom corner.
4. Separate parts A, B, C, D as shown in the figure.
PR266
A B
C
D
