P-661H-D Series Quick Start Guide
2
Overview
Use the included CD or follow the directions in this Quick Start Guide to set up your P-661H-D.
How to use the included CD
This CD provides multi-media animations that help you set up your P-661H-D.
1 On the included CD, click Multimedia Auto Provisioner > Installation Tutorial.
2 At the end of the tutorial, click Configuration Genie.

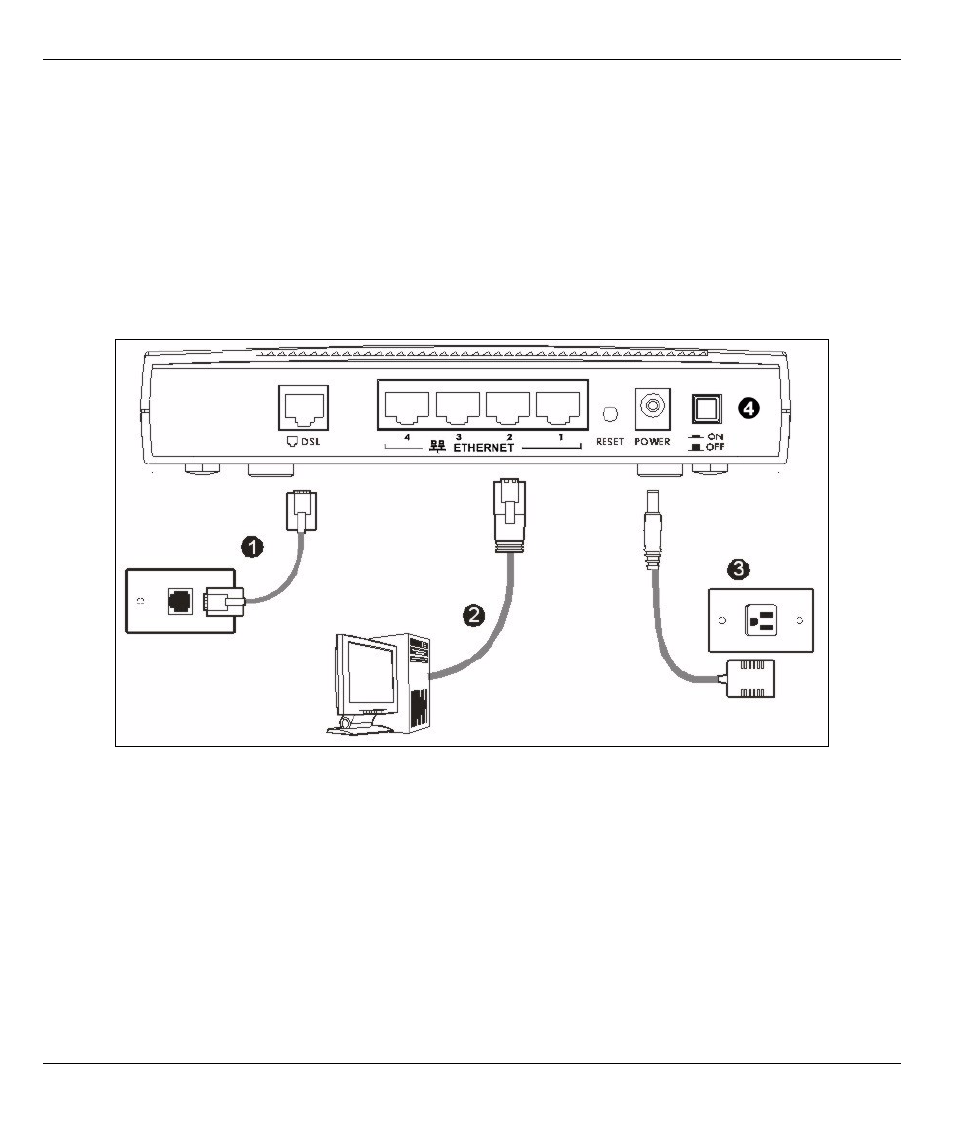

1 Hardware Connections
1 Use a telephone wire to connect your P-661H-D’s DSL port to a telephone jack or the DSL (or modem) jack
on a splitter.
2 Use an Ethernet cable to connect a computer to an ETHERNET port for Internet access.
3 Use the power adaptor provided with your P-661H-D to connect an appropriate power source to the
POWER socket. Make sure the power source is on.
4 Push in the POWER button. Look at the lights on the front panel.
• The POWER light blinks green while your P-661H-D starts up, and stays on once it is ready.
• The DSL light stays on if a physical connection with the ISP is established. The INTERNET light stays on when
Internet access is available and blinks when the P-661H-D is sending or receiving data.
• Each ETHERNET light stays on if the corresponding ETHERNET port is properly connected, and blinks when
there is traffic.
