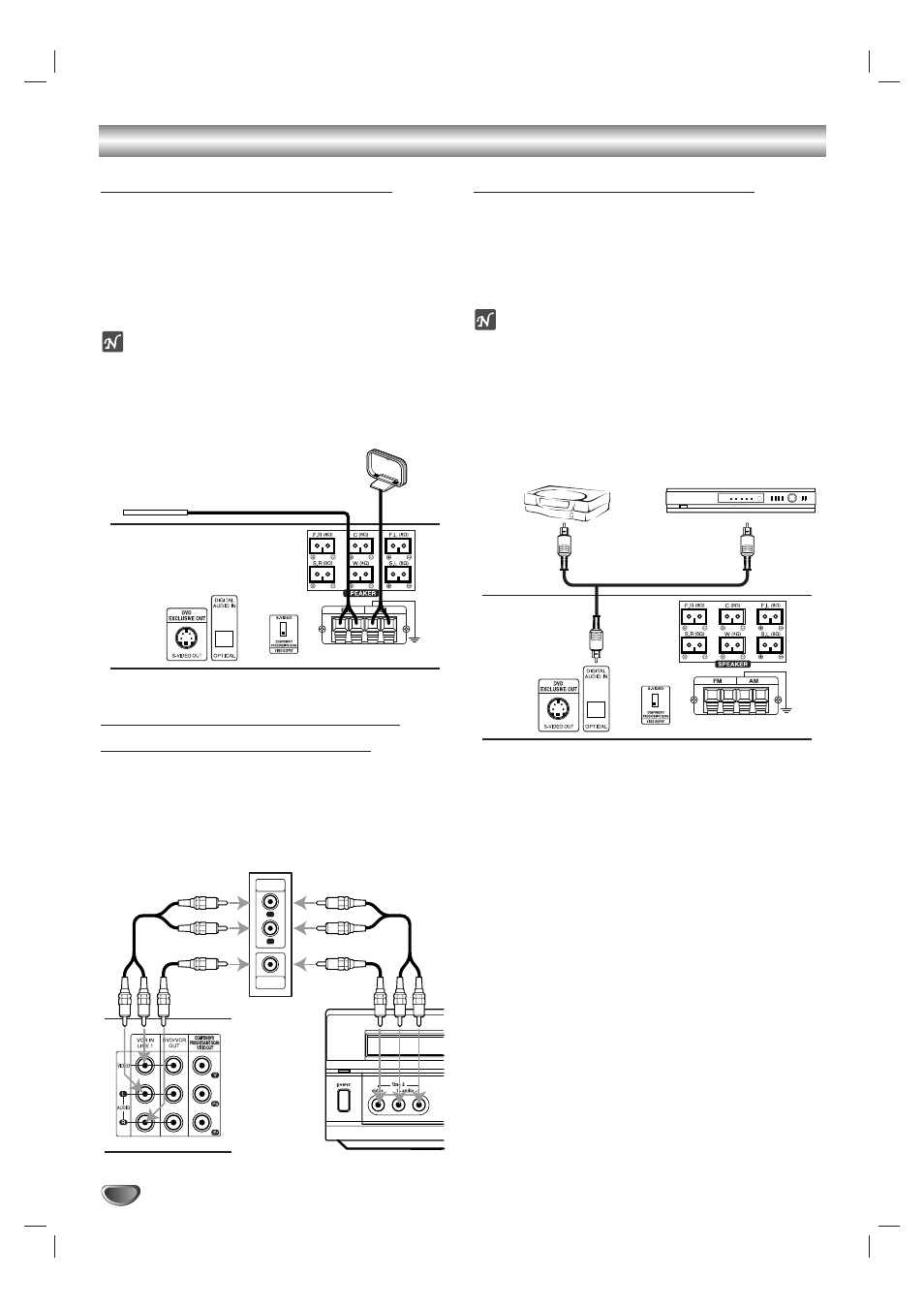

Radio Antenna Connections
Connect the supplied FM/AM antennas for radio listen-
ing.
11 Connect the AM loop antenna to the AM antenna
connectors.
2 2 Connect the FM wire antenna to the FM antenna
connectors.
otes
To prevent noise pickup, keep the AM loop antenna
away from the DVD+VCR and other components.
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it as hori-
zontal as possible.
Accessory Audio/Video (A/V)
Connections to DVD+VCR
Connect the VCR IN LINE1 or LINE2 jacks on the
DVD+VCR to the audio/video out jacks on your
accessory component, using optional audio/video
cables.
Digital Device Connections
Connect the DIGITAL AUDIO IN (OPTICAL) jacks on
the DVD+VCR to the digital audio out (optical) jacks on
your digital device (DVD Player, Game device, etc.),
using optional optical audio cable.
To select source of DVD+VCR to OPTICAL IN, press
AUX on the remote control.
otes
If the audio format of the digital output does not
match the capabilities of your DVD+VCR, the
DVD+VCR will produce a strong, distorted sound or
no sound at all.
The Optical input function is available only when the
other unit’s Sampling Frequency is 32 - 48kHz.
Rear of DVD+VCR
AM loop antenna (supplied)
FM wire antenna (supplied)
Rear of DVD+VCR
HDTV Receiver Game Device
OR
Connections (Continued)
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Jack panel of Accessory Component
(VCR, Camcorder, etc.)
Rear of DVD+VCR Front of DVD+VCR
OR
