Please ensure that when the appliance is
installed it is easily accessible to an engineer
in the event of a breakdown.
All installations must comply with the local
authorities requirements for the discharge
of exhaust air.
Incorrect installation may affect the safety
of this cooker hood.
Installation Requirements
Before installation check that the wall to
which the cooker hood is to be fitted for
electric cables, water pipes and gas.
Unpacking
Before unpacking the cooker hood position the
carton with the arrows pointing upwards as
illustrated on the carton.

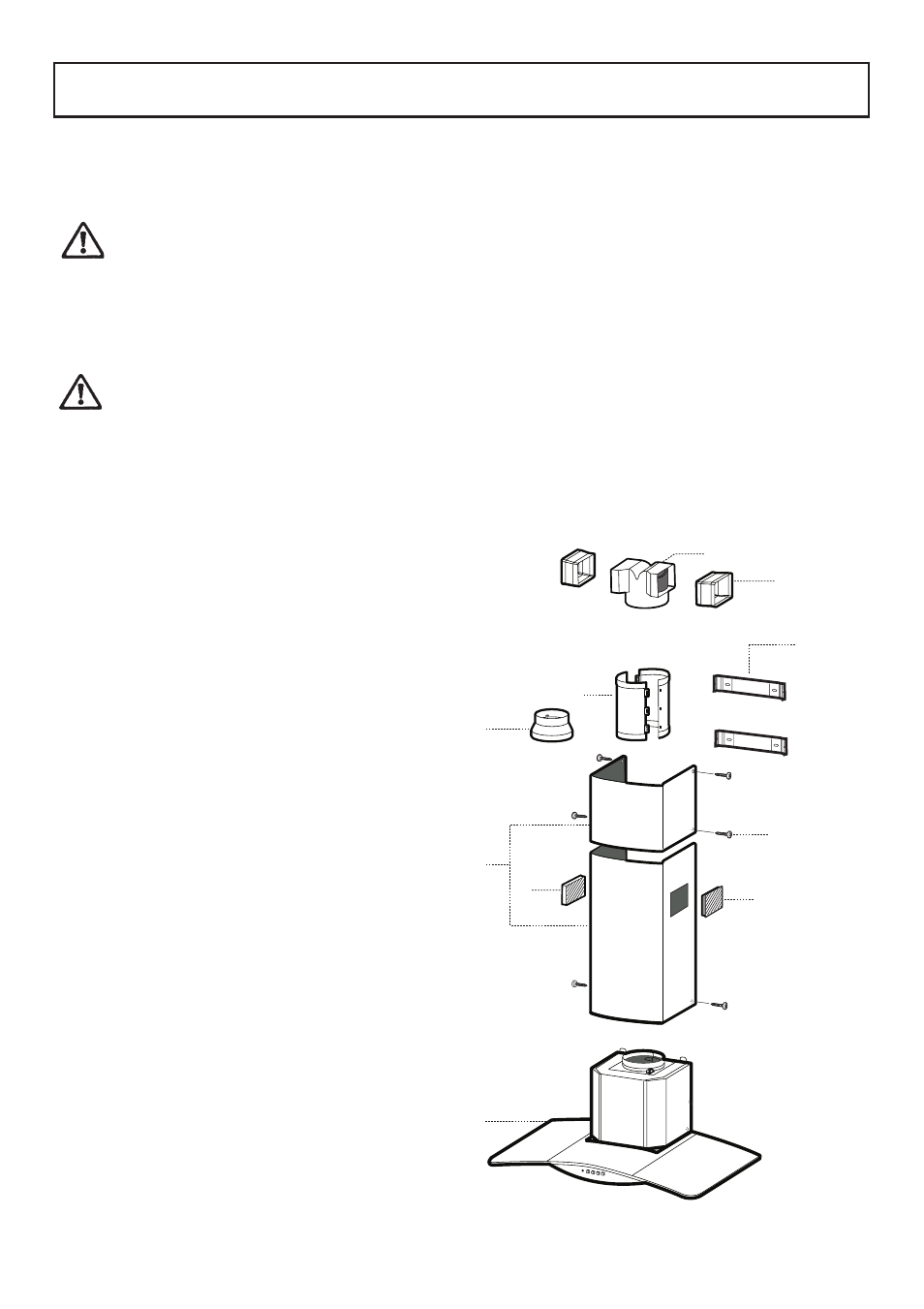

Ref: Qty: Product Components
1 1 No Canopy complete with:
Controls, Lighting, Fan Assembly,
Grease Filter, Charcoal Filter.
2 1 No Telescopic Chimney comprising:
2.1 1 No Upper Chimney Stack
2.2 1 No Lower Chimney Stack
8a 1 No Right-Hand Recirculation grille
8b 1 No Left-Hand Recirculation grille
9 1 No Ø150-120 Ducting Spigot
14 1 No Ducting Extension Pipe
14.1 2 No Recirculation Outlet Extentions
15 1 No Recirculation Outlet Adapter
Ref: Qty: Installation Components
7.2.1 2 No Upper Chnimey Fixing Brackets
12c 6 No Chimney Fixing Screws
2.9x6.5mm
Ref: Qty: Documents
1 No Instruction Booklet
1 No Guarantee Card
1 No Questionnaire
This cooker hood is designed to be fixed to any
vertical surface over a cooking area, and can be
used in the extraction (ducted to the outside) or
recirculation mode.
The installation work must be undertaken by a
qualified and competent person.
The manufacturer disclaims any responsibility for
damage due to incorrect installation of the cooker
hood or if the hood is not installed in compliance
with relevant regulations controlling this type of
installation.
INSTALLING THE COOKER HOOD
2.1
2.2
2
9
14.1
15
14
8b
8a
12c
1
7.2.1
