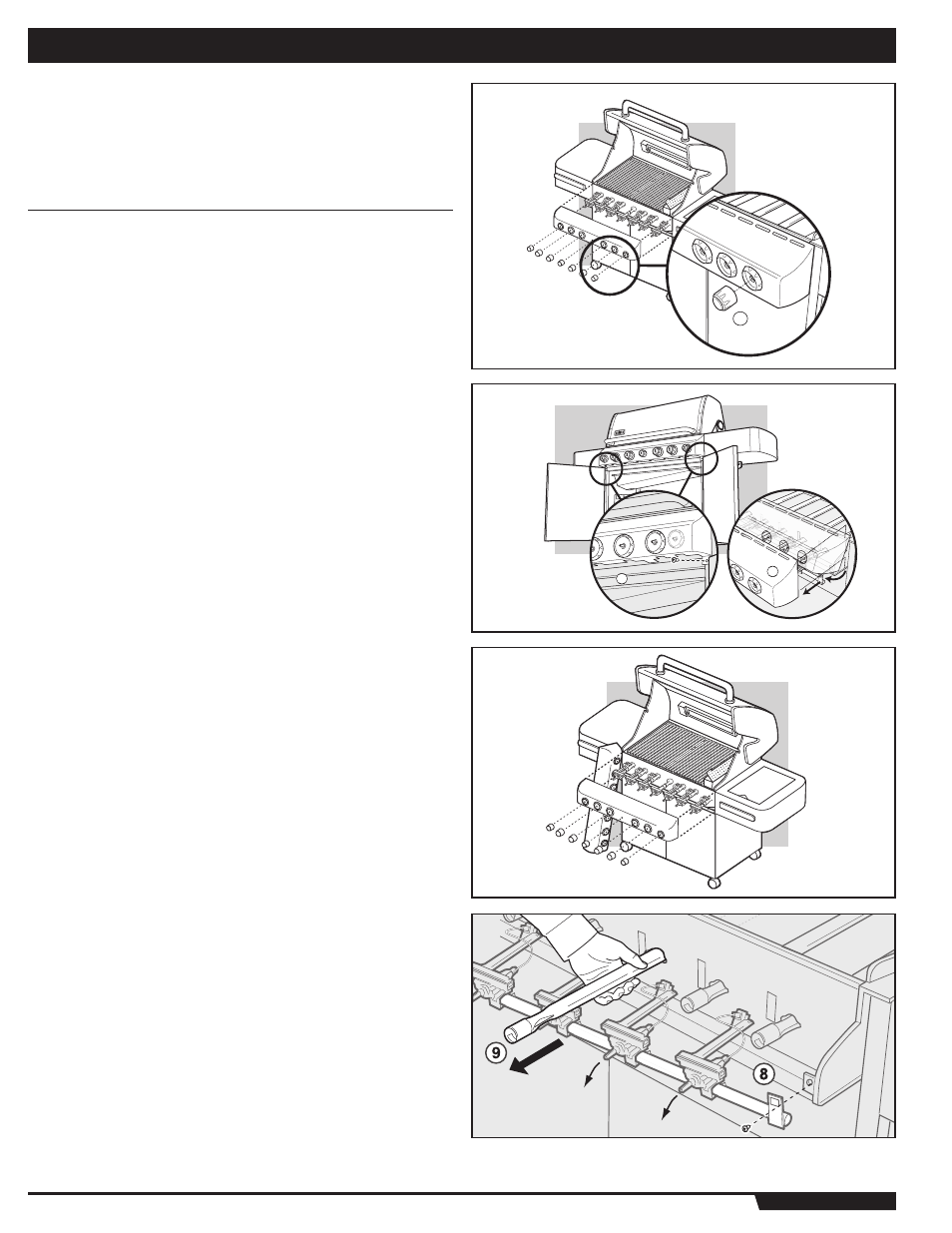

REPLACE MAIN BURNERS
1) Your Summit ® gas grill must be off and cool.
2) Turn gas off at source.
3) Disconnect gas supply.
4) Remove cooking grates.
5) Remove smoker box.
6) Remove Flavorizer ® bars.
REMOVE CONTROL PANEL
7) Part required: Phillips Screwdriver.
a) Remove the burner control knobs.
b) Remove the two screws that secure the control panel to the frame.
c) Remove the control panel. Tilt panel forward and lift up and away from grill.
Be careful not to break or disconnect the wires for the control panel lights.
Rest the control panel against the left side of the grill (A) exposing the valves, burners,
igniter, and manifold.
8) Remove the two screws that secure the manifold to the cookbox. Pull manifold
assembly out from the manifold frame.
9) Pull the selected burner(s) tube(s) from manifold frame and replace with a new
burner tube.
MAINTENANCE
a
b
c
(A)
