Appendix
page 41
Using an alternate mount or stand
If you will be using the DTF-521/PL-521
pen display in an installation that requires
the use of an alternate mounting platform,
you can remove the adjustable stand from
the unit and mount the pen display onto any
mount arm or stand conforming to the
VESA 75 standard.
Mounting screws that are 4 mm wide with a
0.7 mm pitch (M4 Regular), with a screw
clearance depth of 15 mm are required.
Exceeding the clearance depth of 15 mm
will damage the pen display internal
components.
To remove the adjustable stand and attach
the pen display to a different mounting
platform:
1. Turn off your computer and power off
the DTF-521/PL-521. Then disconnect
all cables from between the unit and
your computer.
2. Protect the display screen surface by
spreading a soft cloth onto a flat table
and placing the pen display face down
on the cloth.

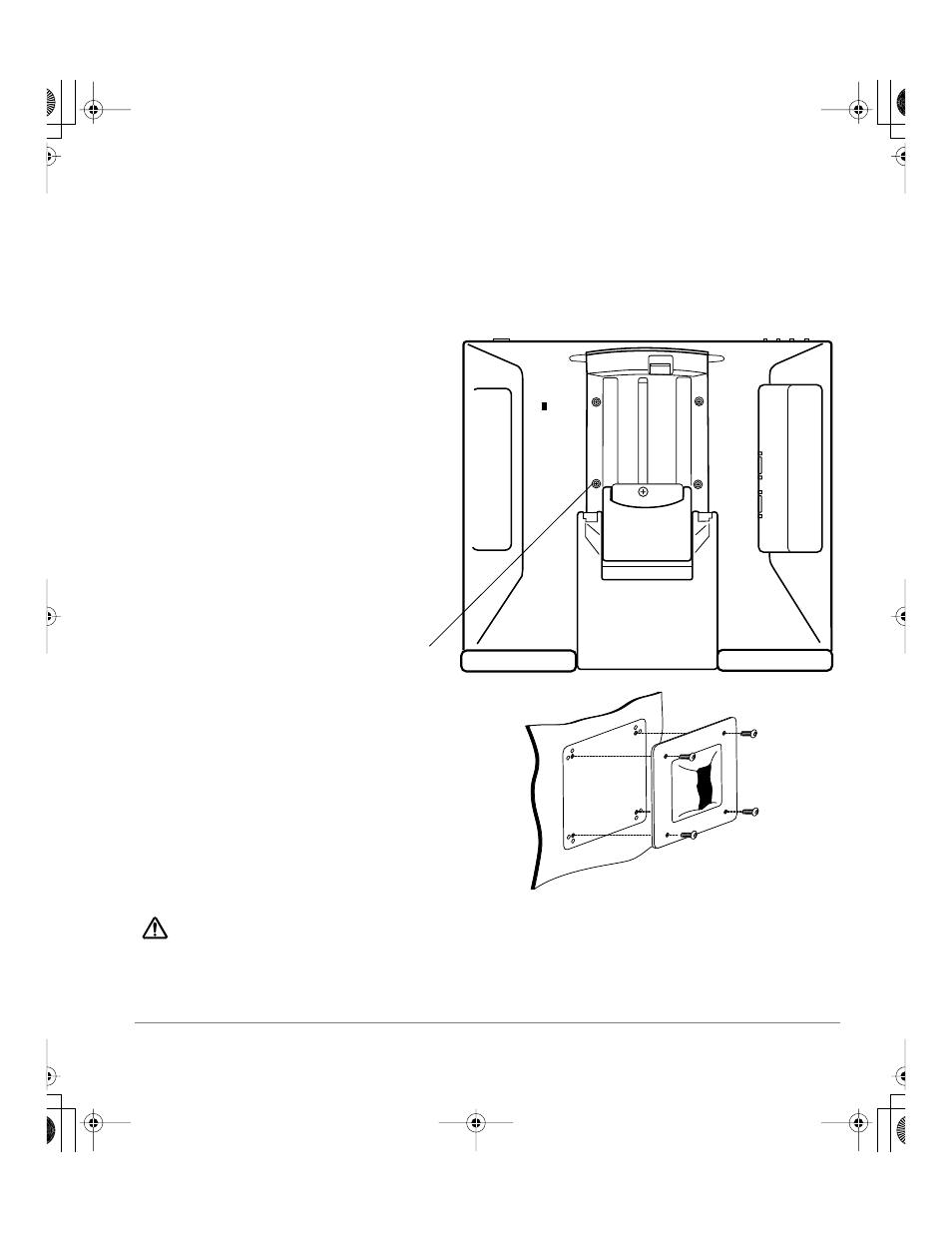

3. Remove the four screws and lift the
adjustable stand assembly away from
the body of the unit.
4. Using the appropriate screws for your
mounting platform, firmly attach the
pen display to the alternate mounting
platform.
5. Refer to the Installation instructions,
beginning on page 9, and reattach the
cabling.
C AUTION When attaching the DTF-521/PL-521 onto an alternate mounting
platform, be sure to follow all instructions in the documentation
supplied by the platform manufacturer. If improperly installed, the
unit could fall, resulting in damage to the unit or physical injury.
