Weil-McLain RS User Manual
Burner specification & data sheet, Riello, Water & steam boilers – series 2
Part No. 550-142-025/0508

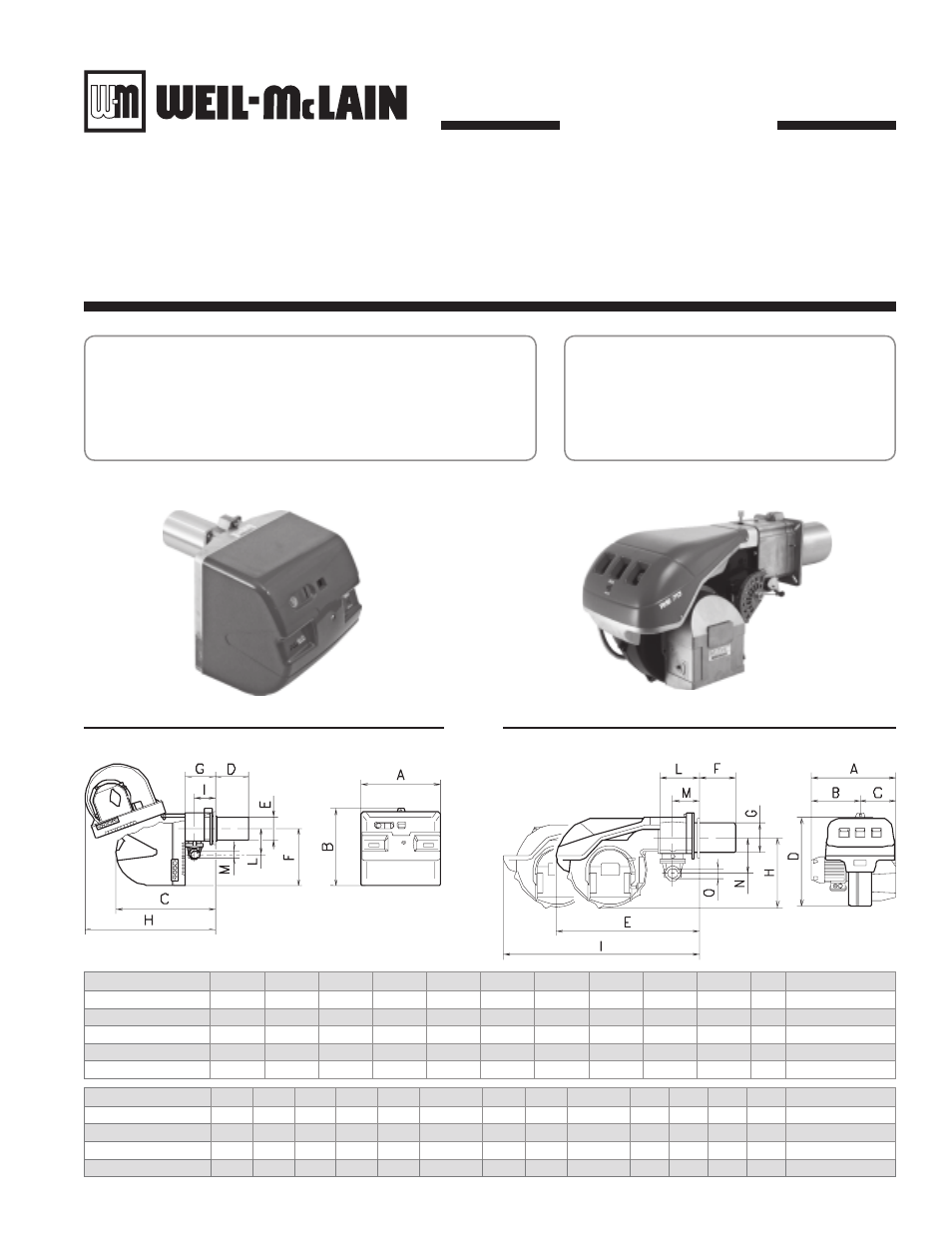

Model RS28 – 50 dimensions
Figure 1
Model RS70 – 190 dimensions
Figure 2
Riello
Gas Burners
Model RS
For Gas, Light Oil, & Gas/Light Oil – Fired Burners
Burner Specification
& Data Sheet
Water & Steam Boilers – Series 2
88
Burner Model Number
A
B
C
D
E
F
G
H
I
L
M
Approx. Wt. (pounds)
RS28/1
18.75
18.69
22.88
8.50
5.50
13.88
6.44
31.88
4.25
6.63
1.50
82
RS38/1
18.75
18.69
22.88
8.50
5.50
13.88
6.44
31.88
4.25
6.63
1.50
88
RS28/M
18.75
18.69
22.88
8.50
5.50
13.88
6.44
31.88
4.25
6.63
1.50
84
RS38/M
18.75
18.69
22.88
8.50
5.50
13.88
6.44
31.88
4.25
6.63
1.50
88
RS50/M
18.75
18.69
22.88
8.50
5.50
13.88
6.44
31.88
4.25
6.63
1.50
91
Burner Model Number
A
B
C
D
E
F
G
H
I
L
M
N
O
Approx. Wt. (pounds)
RS70/M
20.13
11.63
8.50
21.88
33.00
9.88 – 15.19
7.06
16.94 45.75 – 51.00
8.44
5.31
8.75
2.00
154
RS100/M
20.06
12.31
8.50
21.88
33.00
9.88 – 15.19
7.06
16.94 45.75 – 51.00
8.44
5.31
8.75
2.00
161
RS130/M
21.75
13.31
8.50
21.88
33.00 11.00 – 15.19
7.06
16.94 45.75 – 51.00
8.44
5.31
8.75
2.00
168
RS190/M
26.81
14.41
12.40
21.88
33.70 14.65 – 20.87
8.74
16.93
51.65
7.32
5.91
7.32
2.00
181
