Cable diagrams – Weider WESY13820 User Manual
Page 18

High Cable (35)

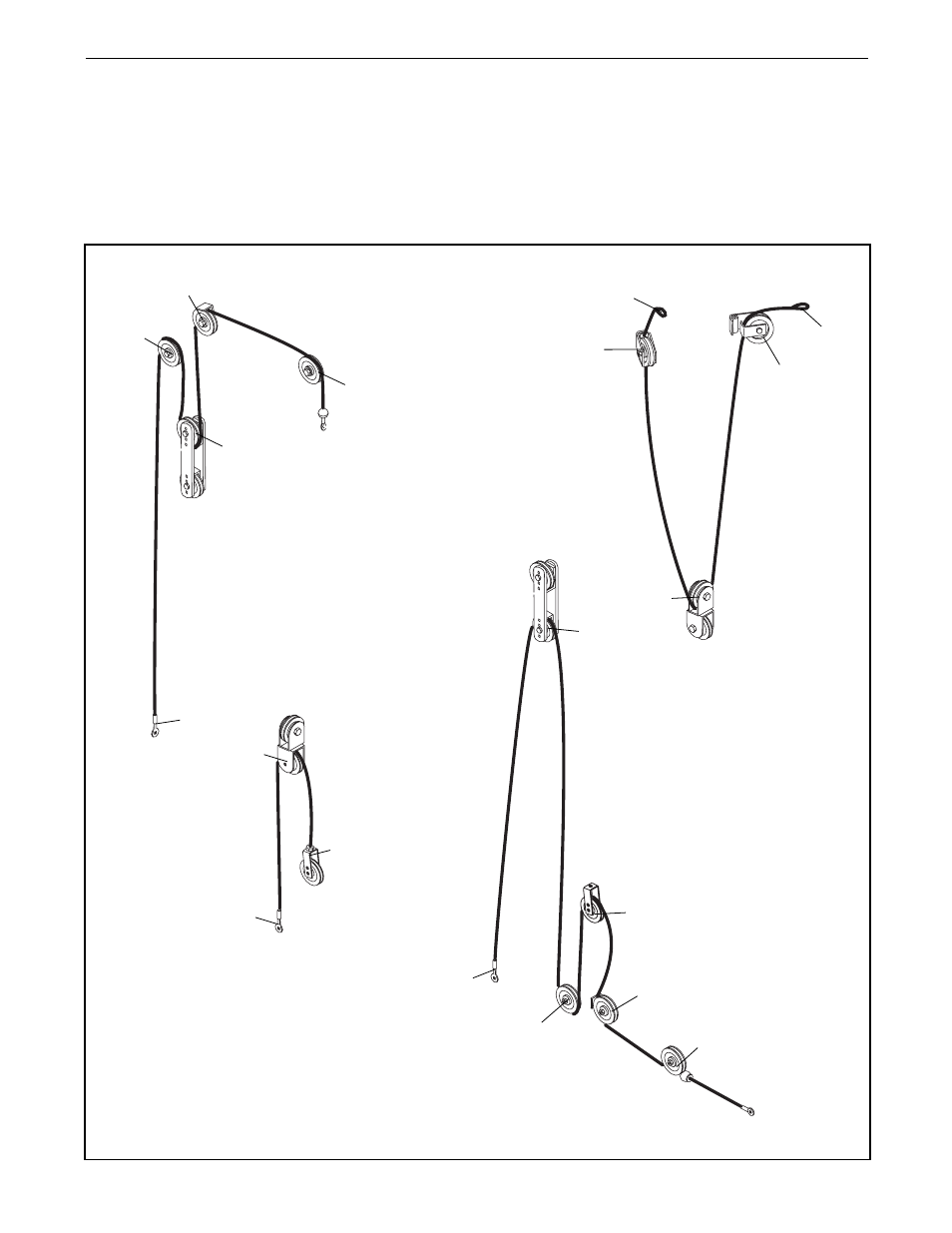

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the High Cable (35), the Arm Cable (36), the Low Cable
(37), and the Short Cable (80). Use the diagrams to make sure that the cables and the cable traps have been
assembled correctly. If the cables have not been correctly routed, the weight system will not function properly
and damage may occur. The numbers show the correct route for each cable. Make sure that the cable traps
do not touch or bind the cables.
4
4
1
2
1
2
5
5
1
2
3
4
5
6
Arm Cable (36)
Low Cable (37)
Short Cable (80)
3
3
1
2
3
18
