Apx-6
Appendices
C.3. Connecting Other RJ-45 DCE Devices to the AUX & Remote Ports
An RJ-ROLL Rollover cable can be used to connect the following RJ-45 DCE devices to
the MPC's RJ-45 serial ports:
• Cisco Routers with RJ-45 DCE Console Port
• Sun Routers with RJ-45 DCE Console Port
• Other Devices with RJ-45 DCE Console Port
When connecting an RJ-45 DCE device to the MPC, please refer to Figure C.4 below:
MPC Series
Unit
AUX or Remote
RJ-45 DCE
Serial Port
Rollover
RJ-45 Cable
RJ-45 DCE
Serial Port
Cisco Router,
Sun Router
or other
Device
with RJ-45
DCE Interface

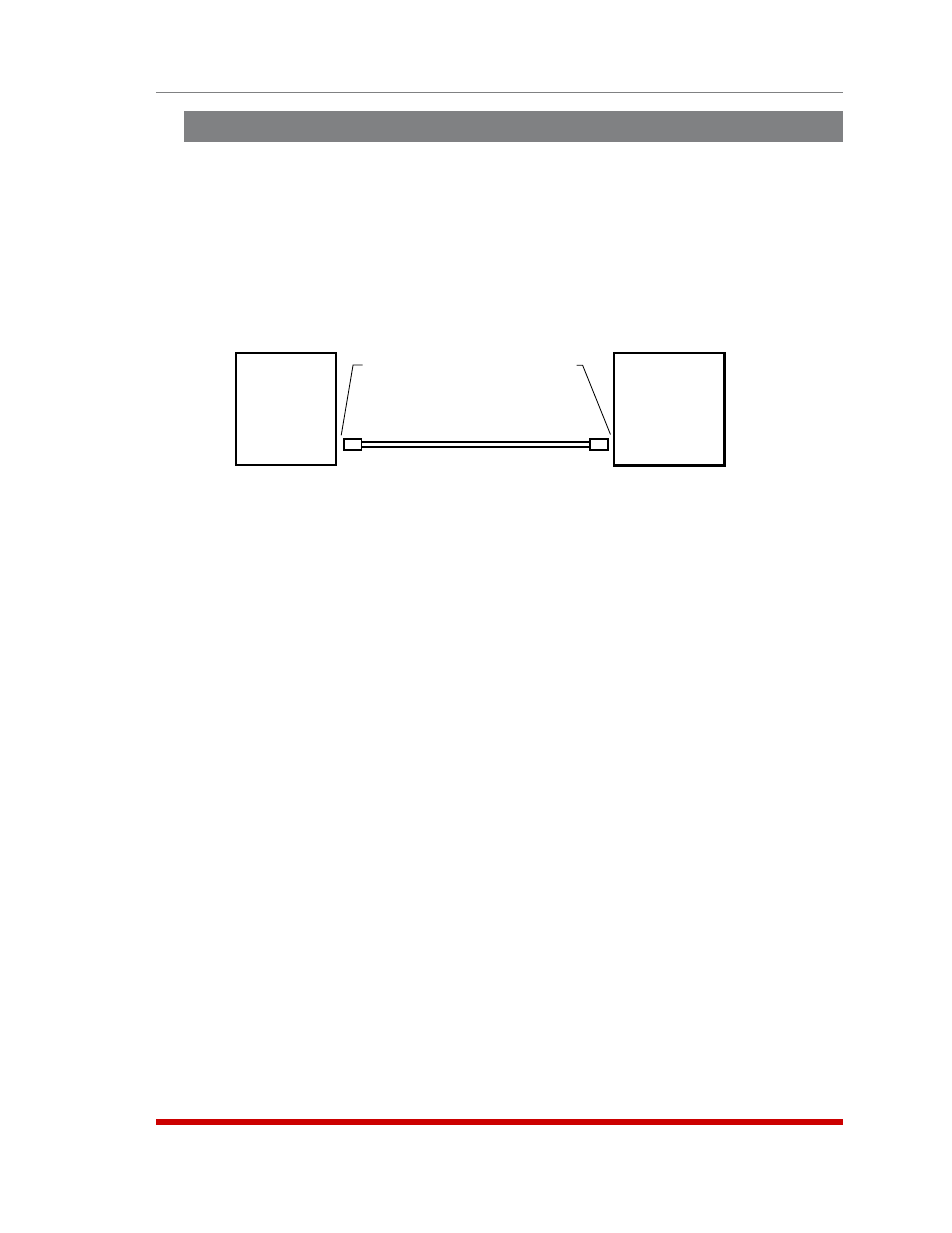

Figure C.4: Connecting RJ-45 DCE Devices to the AUX & Remote Ports
