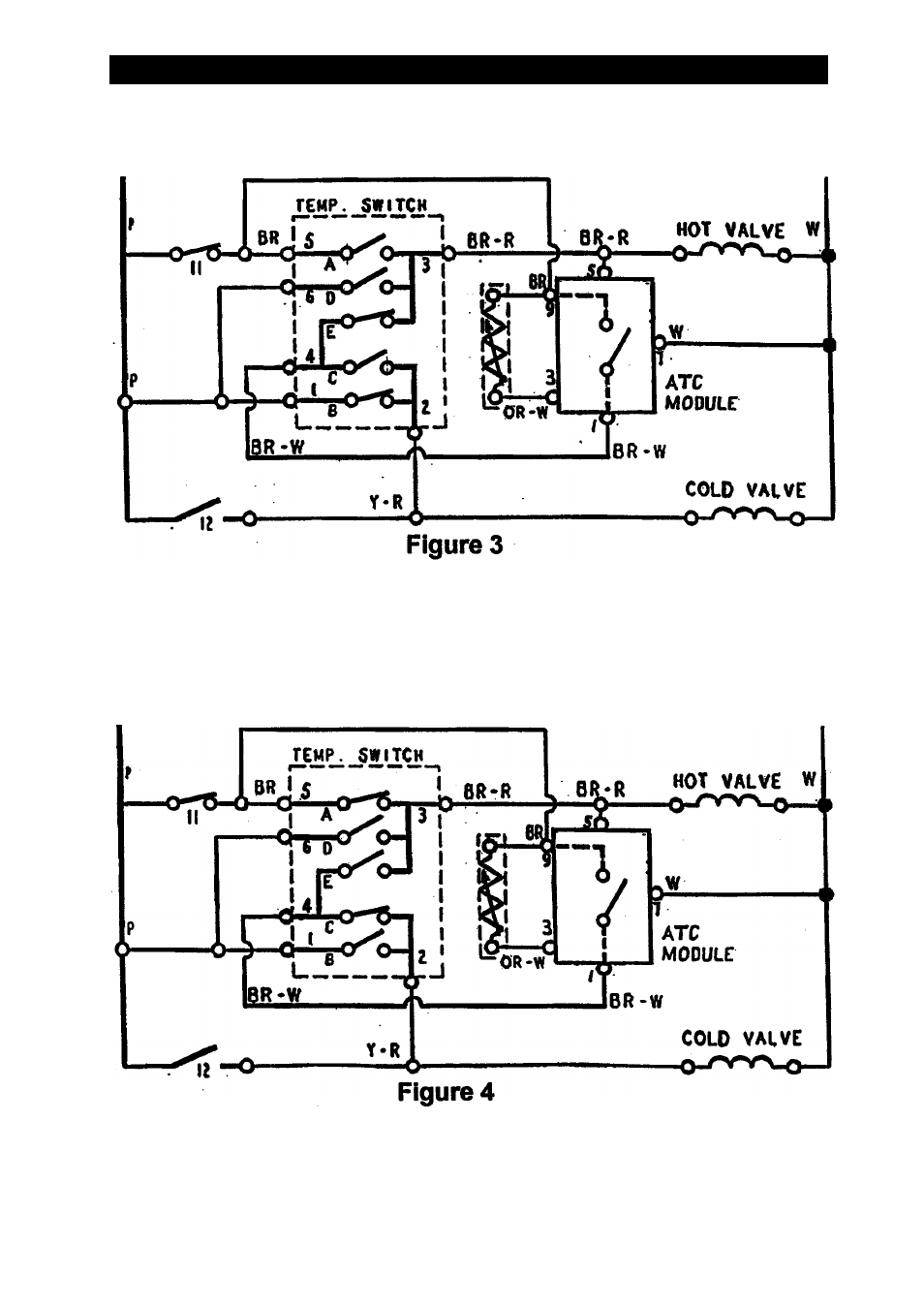

With the temperature selector switch set to COLD, the cold water solenoid energised for 100%
of the time and the hot water solenoid is cycled on and off (See Figure 3).
With the temperature selector switch set to WARM, the hot water solenoid energised for 100%
of the time and the cold water solenoid is cycled on and off (See Figure 4).
Note : During the warm water fill, both solenoids are energised for 55 seconds. After
55 seconds, the hot water inlet valve stays on and the cold water inlet valve
cycles.
The ATC is only active during the wash fill, it has no effect on the rinse water temperature.
