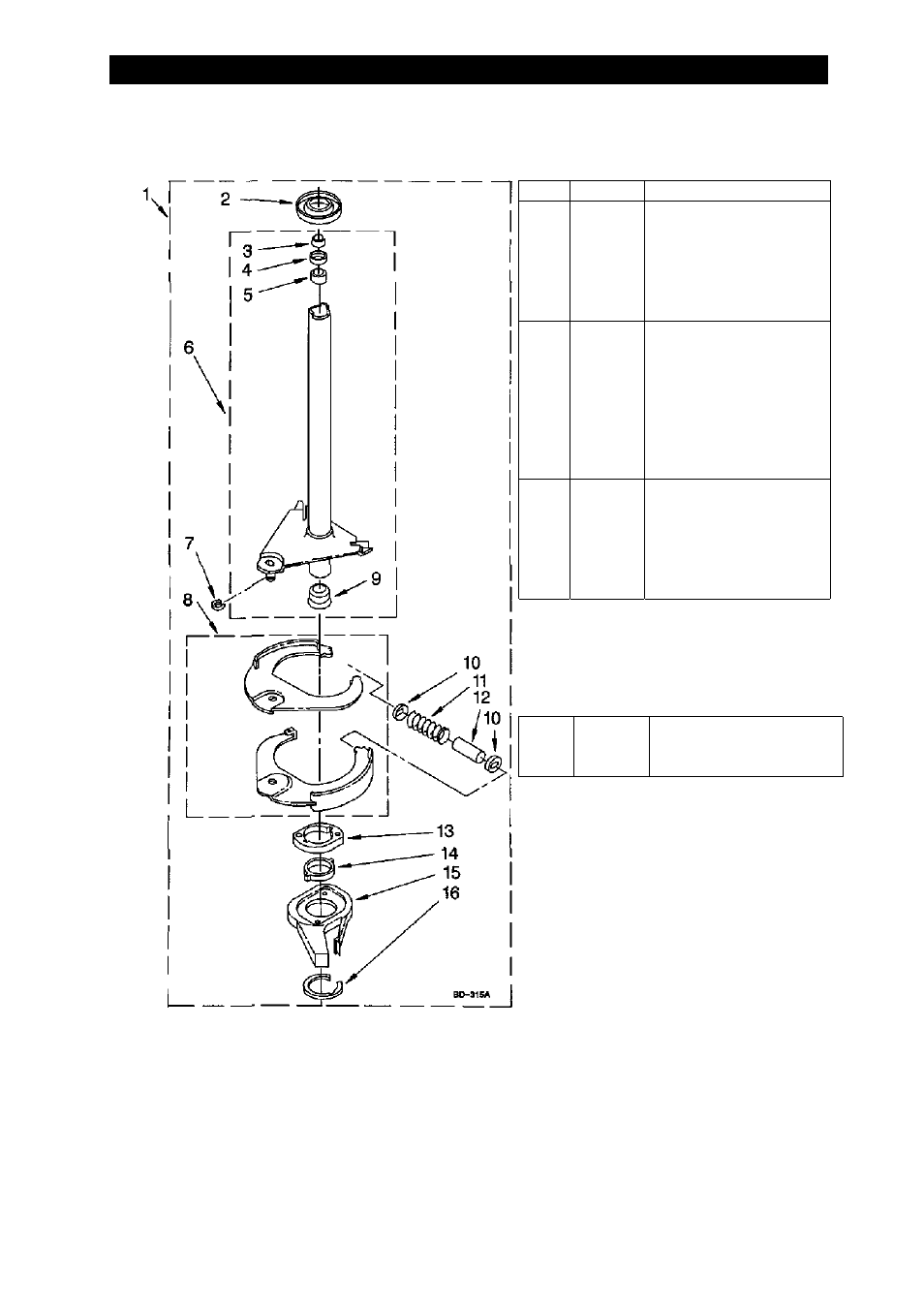

BRAKE AND DRIVE TUBE PARTS
Item Part No Description
1 388951 Brake And Drive Tube
(Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 365427 Seal, Drive Tube
5 356937 Spacer, Drive Tube
6
64027 Tube, Basket Drive
(Includes Items 3, 4, 5
& 9)
7 64035 Ring, Retaining
8 64232 Shoe, Brake
9 62703 "T" Bearing, Spin
Tube
10 62648 Cap, Brake Spring (2)
11 62647 Spring, Brake
12 62909 Sleeve, Brake Spring
13 63023 Cam, Brake Release
14 63022 Sleeve, Cam
15 64194 Driver, Brake Cam
16 90368 Ring, Retaining
FOLLOWING PARTS NOT
ILLUSTRATED
- 285208 Lubricant (Use Only In
Brake Shoe Assembly
On Roller & Pin)
