To program a PIN to a Scene button on the
Wireless Gateway, WDHA-12R, or to reassign a
PIN to a Scene button:
1. Press and Hold the Scene button you wish
to program on the Wireless Gateway, either
Scene 1, 2 or 3, until the LED turns off, then
immediately release the Scene button (before
the LED turns on again.)
2. Open the cover of the KEP-IV, then push the
ON/OFF/RESET button of the keyless entry. The
Keyless Entry keypad will light indicating it has
been activated and is waiting for commands
(illumination may not be visible in direct
sunlight.)
3. Press the desired four digit PIN number.
(example:1-2-3-4). Programming to the Scene
is now complete.
The LED on the Wireless Gateway will
flash three (3) times quickly to indicate the
programming is successful.
Note: Your KEP-IV cannot directly operate
Z-Wave ® modules, the Z-Wave ® modules
must be programmed to the Gateway
Scene to which you have programmed your
KEP-IV PIN code. See the Gateway User
Manual for instructions on programming
Z-Wave
®
modules.
Note: Each Scene on the Gateway must be
programmed with a different PIN.
To operate a Wireless Gateway Scene:
1. Activate your keypad by pressing the
ON/OFF/RESET button and the keypad will
illuminate.
2. Enter the 4 digit PIN (personal identification
number) for the specific Scene you want to
activate.
3. Your Keypad will turn off automatically in 15
seconds, or you may manually turn it off.

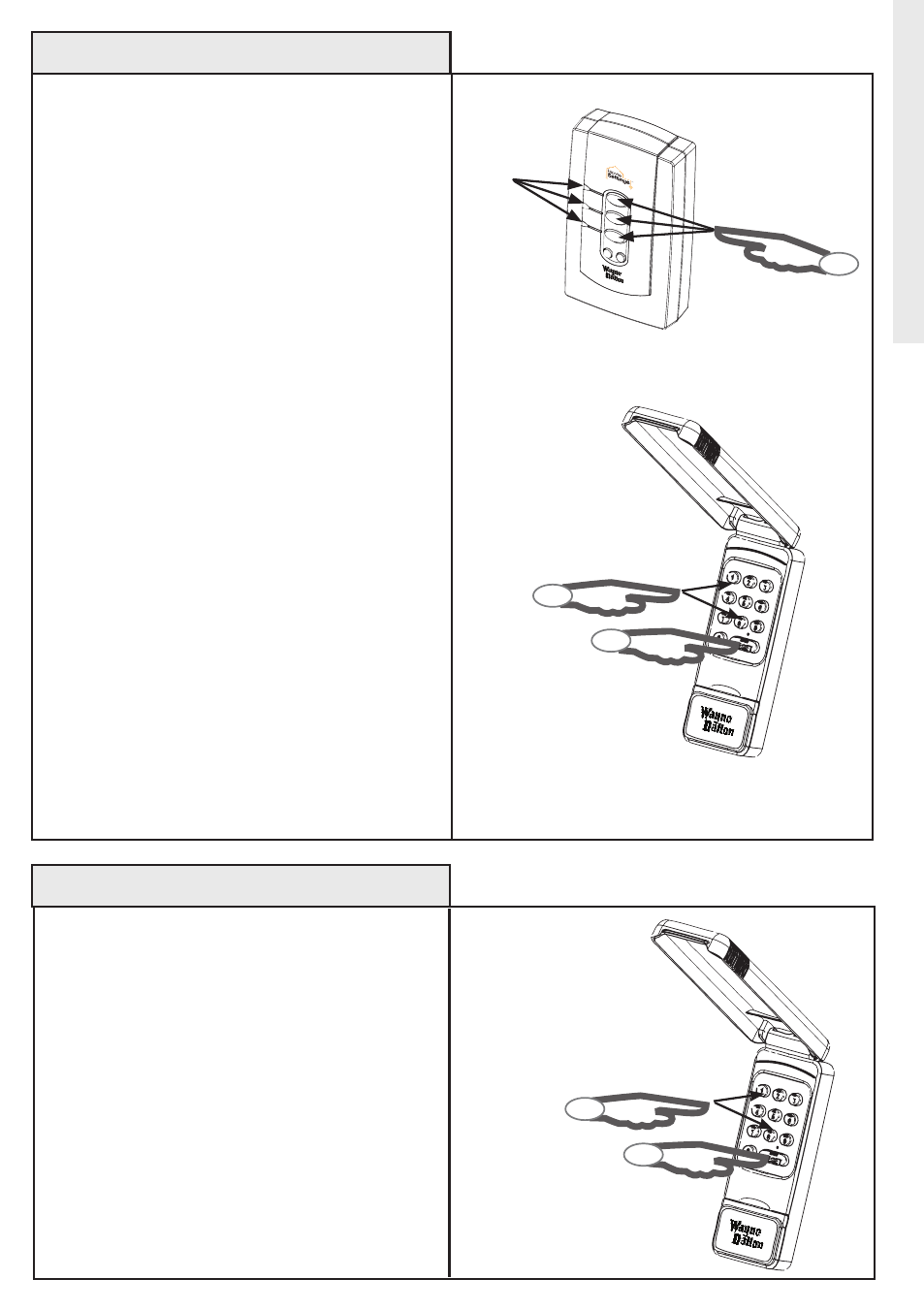

Programming KEP-IV to Wireless Gateway
