CAUTION: MOUNT THE KEP-IV A MINIMUM OF
5 FEET FROM THE FLOOR TO KEEP IT OUT OF
THE REACH OF SMALL CHILDREN.
With new installations, the KEP-IV should be
programmed before mounting to wall.
1. Choose a convenient location that does not
interfere with the normal opening and closing
operation of the door, such as the door jamb,
but is within sight of the door.
2. Two screws are included for proper
mounting into wood or other similar material.
A 5/64” X 3/4” pilot hole may need to be
drilled for the mounting screws. If mounting to
other materials consult a qualified building or
hardware specialist for the proper hardware to
insure secure mounting.

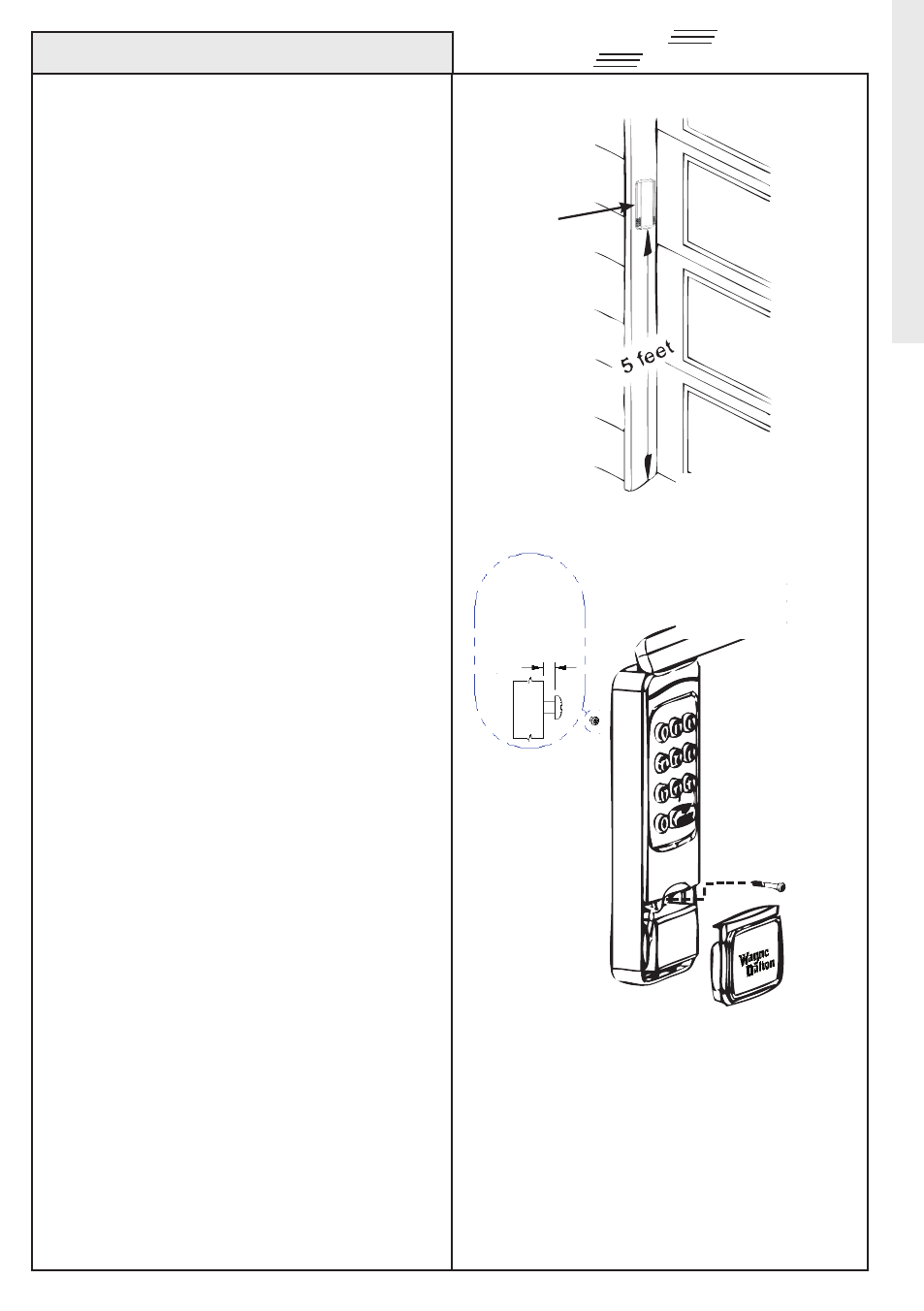

3. Insert Upper screw into upper pilot hole
leaving head of screw 1/16” away from wall as
shown in the illustration to the right.
4. Slide and lock back keyhole slot over
exposed screw and position unit vertically.
5. Remove battery door to expose lower screw
mounting hole.
6. Insert lower screw and tighten.
7. Replace battery door.
Mounting the KEP-IV
Mounting
Quick
Start
1/16”
LOWER SCREW
MOUNTING HOLE
LOCATED BEHIND
BATTERY COVER
LEAVE UPPER
SCREW HEAD
AWAY 1/16”
FROM WALL
KEP-IV
WIRELESS
KEYLESS
ENTRY
