5 - 3
Test Points Reading
2 to 1 15 ohms
Drain Pump Motor
3 2 1
Test Points Reading
Unlock Solenoid 3 to 2 60 ohms
Lock Solenoid 3 to 1 60 ohms
Door Lock/Unlock Solenoids
1 5 4 2
Test Points Reading
Main Switch 1 5 to 4 0 ohms
Main Switch 2 2 to 1 0 ohms
Door Lock Main Switches

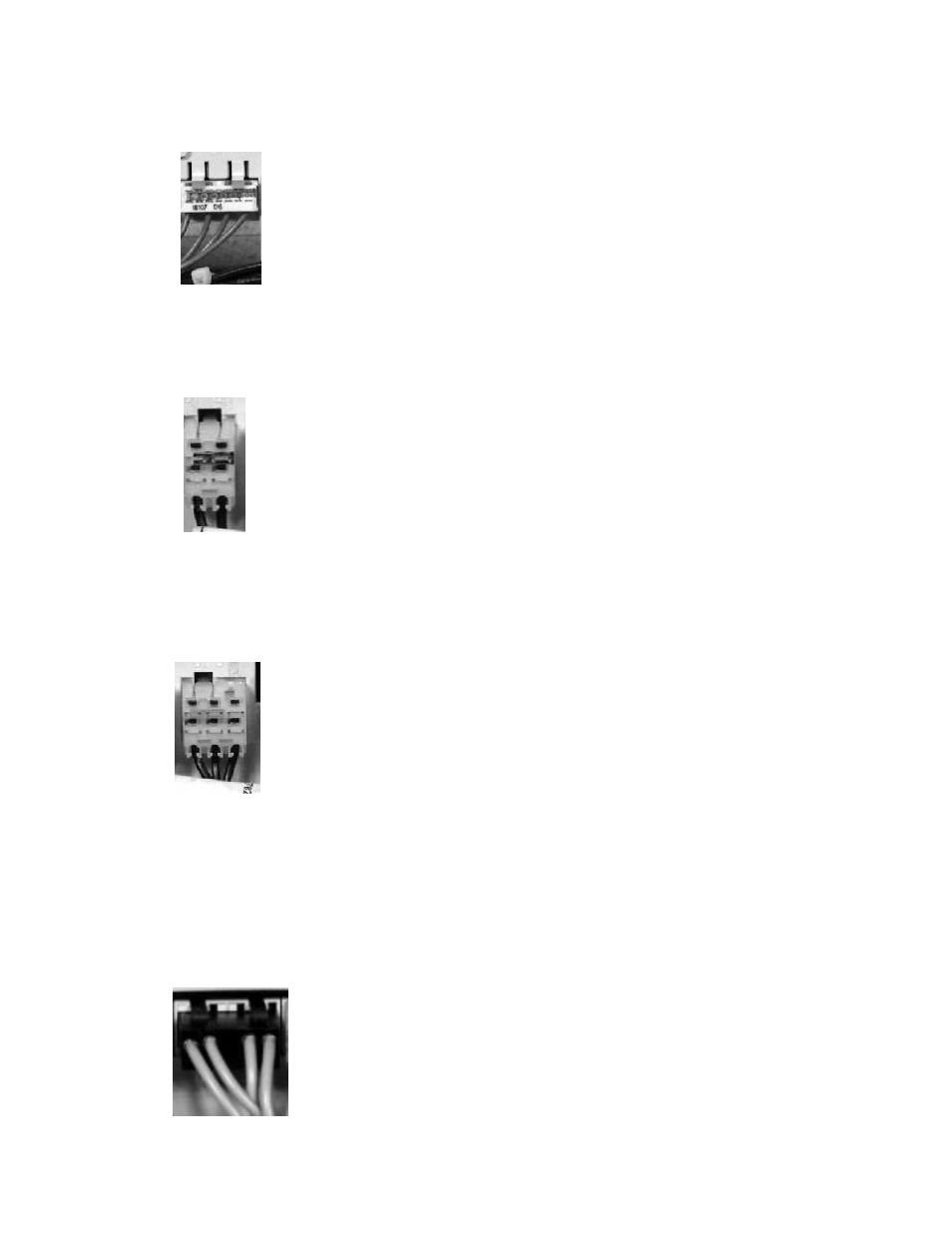

To check the door lock main switches, the door must be locked. Begin by selecting a cycle and
press START. You will hear the door lock solenoid engage. Unplug the washer from the wall
outlet and check for continuity at the following points.
7 5 3 1
Test Points Reading
Hot Water Solenoid 7 to 5 800 ohms
Cold Water Solenoid 3 to 1 800 ohms
Water Inlet Solenoids
