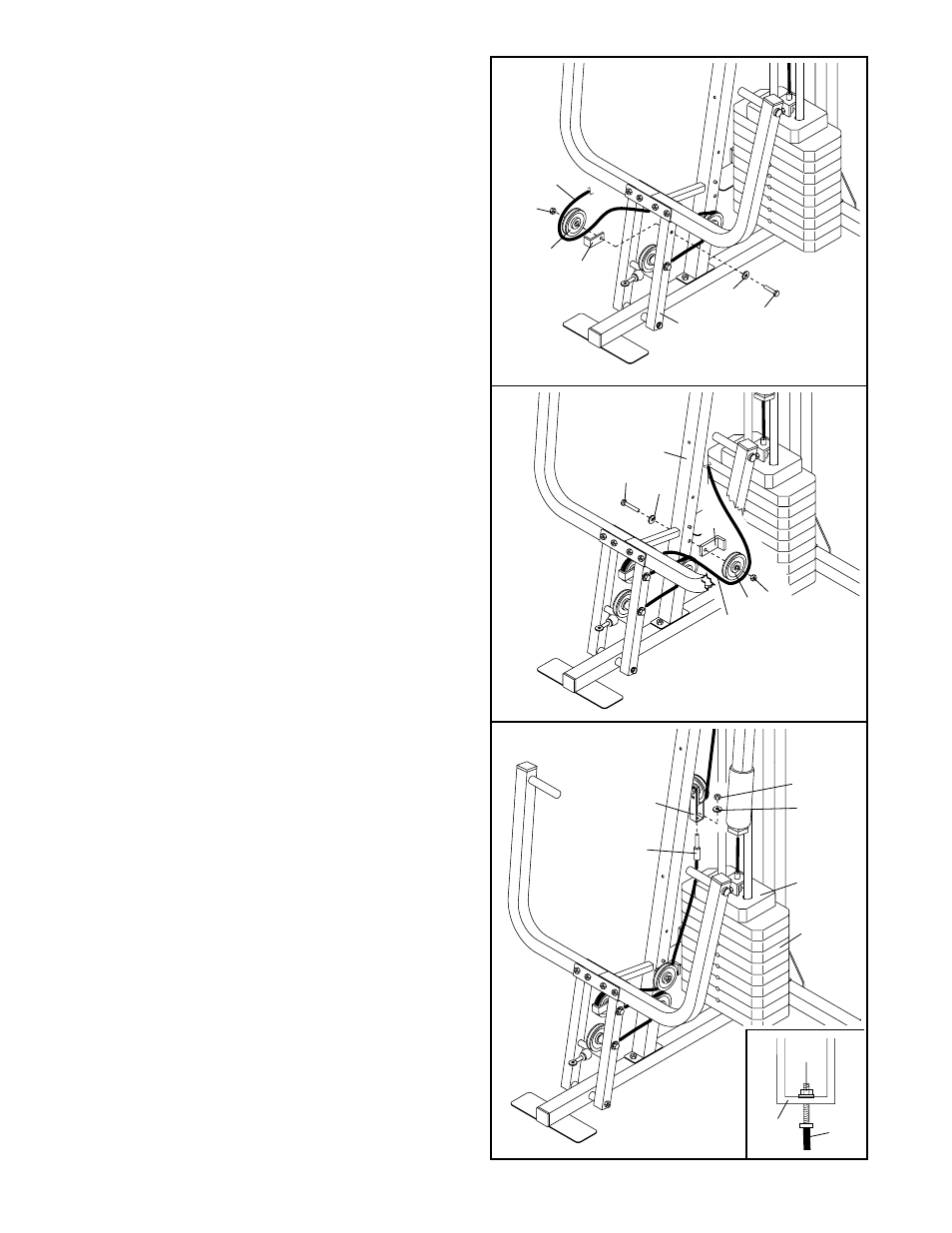

26. Wrap the Short Cable (42) around a 3 1/2” Pulley
(45). Attach the Pulley and a Cable Trap (44) to
the upper hole in the Front Upright (4) with a 3/8”
x 3 3/4” Bolt (70), a 3/8” Washer (86), and a 3/8”
Nylon Jamnut (92). Be sure that the Cable Trap
is turned to hold the Cable in place and that
the Cable is routed around the Pulley as
shown.
27. Have a second person lift the Top Weight (24) off
the stack of Weights (22). Attach the end of the
Short Cable (42) to the Long “U”-Bracket (50)
with a 1/4” Nylon Locknut (82) and a 1/4” Washer
(81). See the inset drawing. Do not overtighten
the Nylon Locknut; it should be threaded onto
the end of the Cable so only two threads are
showing above the Nylon Locknut.
