20

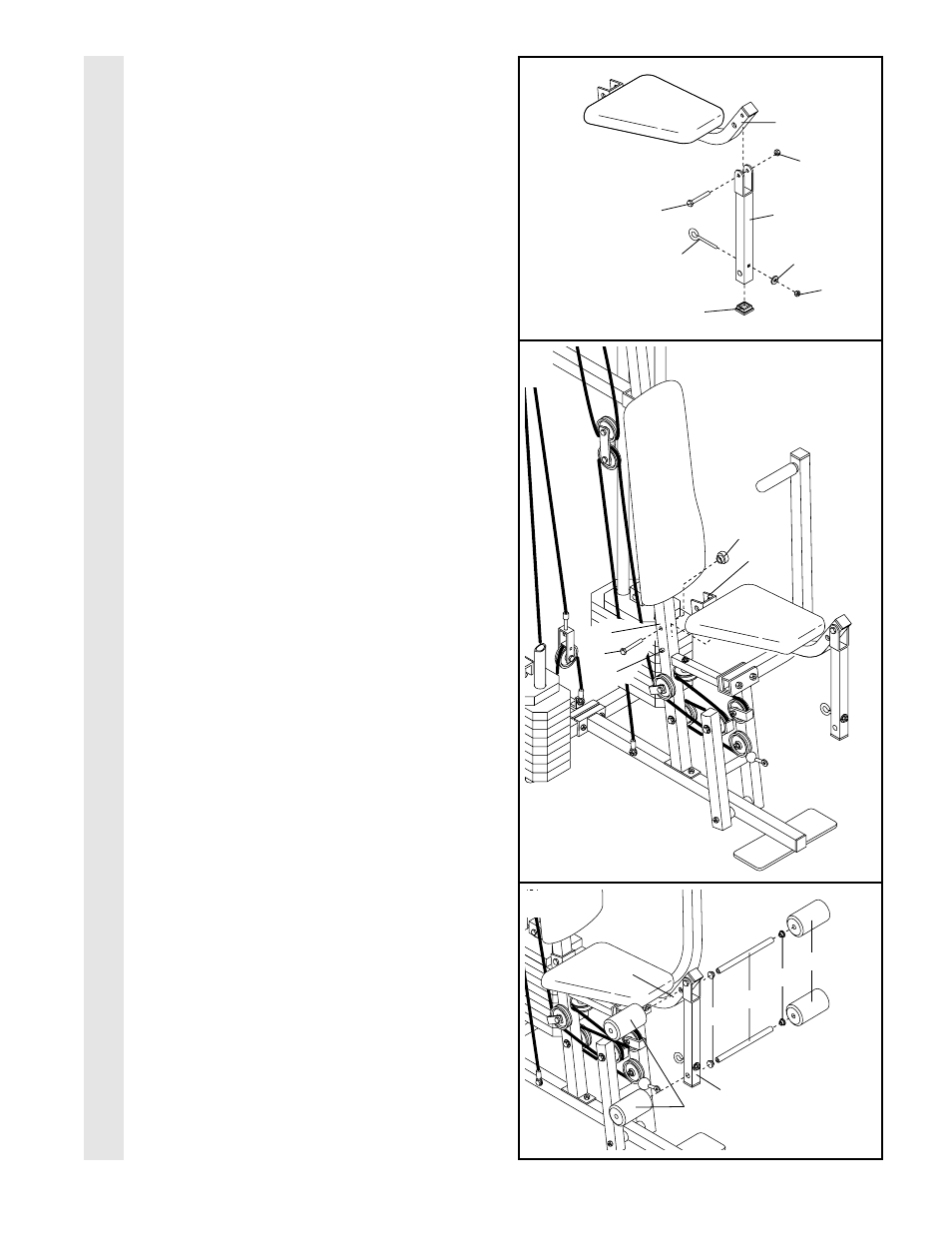

45. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach
the Leg Lever (29) to the Seat Frame (36)
with the Bolt and a 5/16” Nylon Locknut (3).
Do not overtighten the Nylon Locknut. The
Leg Lever must be able to pivot freely.
Insert the 5/16” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten
a 5/16” Nylon Locknut (3) with a 5/16”
Washer (8) onto the Eyebolt.
46. Rest the Front Seat Frame (36) on the indi-
cated pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with a
5/16” x 2 3/4” Carriage Bolt (14) and the Seat
Knob (40).
47. Press 3/4” Round Inner Caps (34) into the
ends of both Pad Tubes (28).
Insert one Pad Tube (28) into the Front Seat
Frame (36). Slide a Foam Pad (30) onto each
end of the Pad Tube.
Insert the other Pad Tube (28) into the Leg
Lever (29). Slide a Foam Pad (30) onto each
end of the Pad Tube.
SEA
T
ASSEMBL
Y
45
36
29
32
35 8
3
3
Lubricate—33
46
40
42
36
14
Pin
47
36
29
30
30
34
34
28
