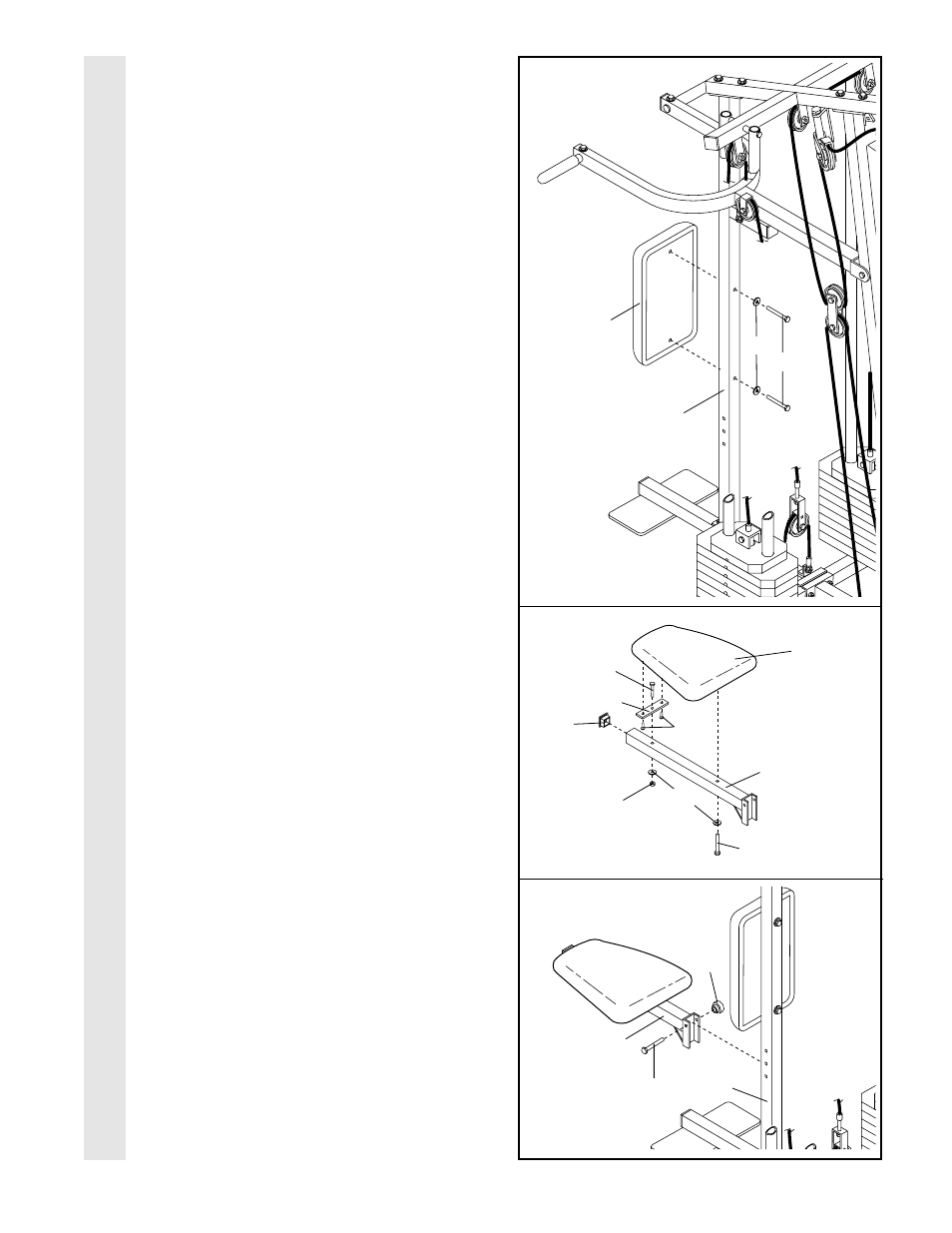

40. Attach the Small Backrest (80) to the Rear
Upright (56) with two 1/4” x 2 1/2” Screws
(43) and two 1/4” Washers (10).
41. Press a 1 3/4” Square Inner Cap (44) into the
Rear Seat Frame (77).
Insert the 1/4” x 2 1/2” Carriage Bolt (91) into
the center hole in a Seat Plate (37). Attach
the Seat Plate to a Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2 1/2” Carriage Bolt (91) into
the indicated hole in the Rear Seat Frame
(77). Tighten a 1/4” Nylon Locknut (2) with a
1/4” Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Rear Seat Frame (77) with a 1/4” Washer
(10) and a 1/4” x 2 1/2” Screw (43).
42. Align the holes in the Rear Seat Frame (77)
with one set of holes in the Rear Upright (56).
Attach the Rear Seat Frame to the Rear
Upright with a 5/16” x 2 3/4” Carriage Bolt
(14) and a Seat Knob (40).
SEA
T
ASSEMBL
Y
18
40
80
56
10
43
41
42
13
91
44
37
77
18
43
2
77
56
40
14
10
