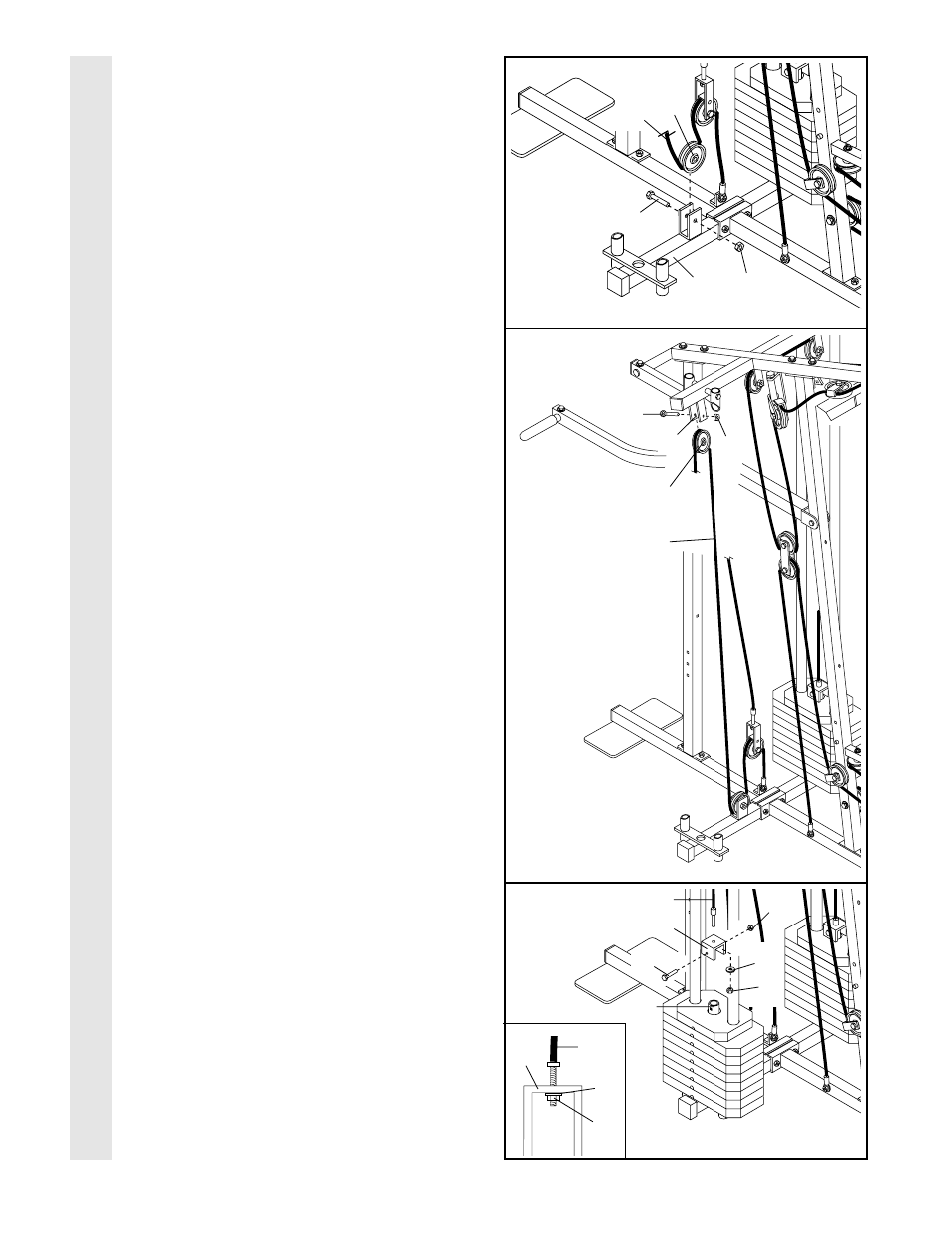

37. Wrap the Rear Cable (95) around a 3 1/2”
Pulley (15). Attach the Pulley to the bracket
on the Stabilizer (5) with a 3/8” x 1 3/4” Bolt
(87) and a 3/8” Nylon Locknut (21).
38. Wrap the Rear Cable (95) around a 3 1/2”
Pulley (15). Attach the Pulley to the indicated
bracket on the Top Frame (55) with a 3/8” x
1
. 3/4” Bolt (87) and a 3/8” Nylon Locknut (21).
The Cable must be routed from the direc-
tion shown.
39. Attach the Rear Cable (95) to a Small “U”
Bracket (67) with a 1/4” Nylon Locknut (2)
and a 1/4” Washer (10). Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown in the inset
drawing.
Attach the Small “U” Bracket (67) to the indi-
cated Weight Tube (63) with a 5/16” x 1 3/4”
Bolt (72) and a 5/16” Nylon Locknut (3).
