13

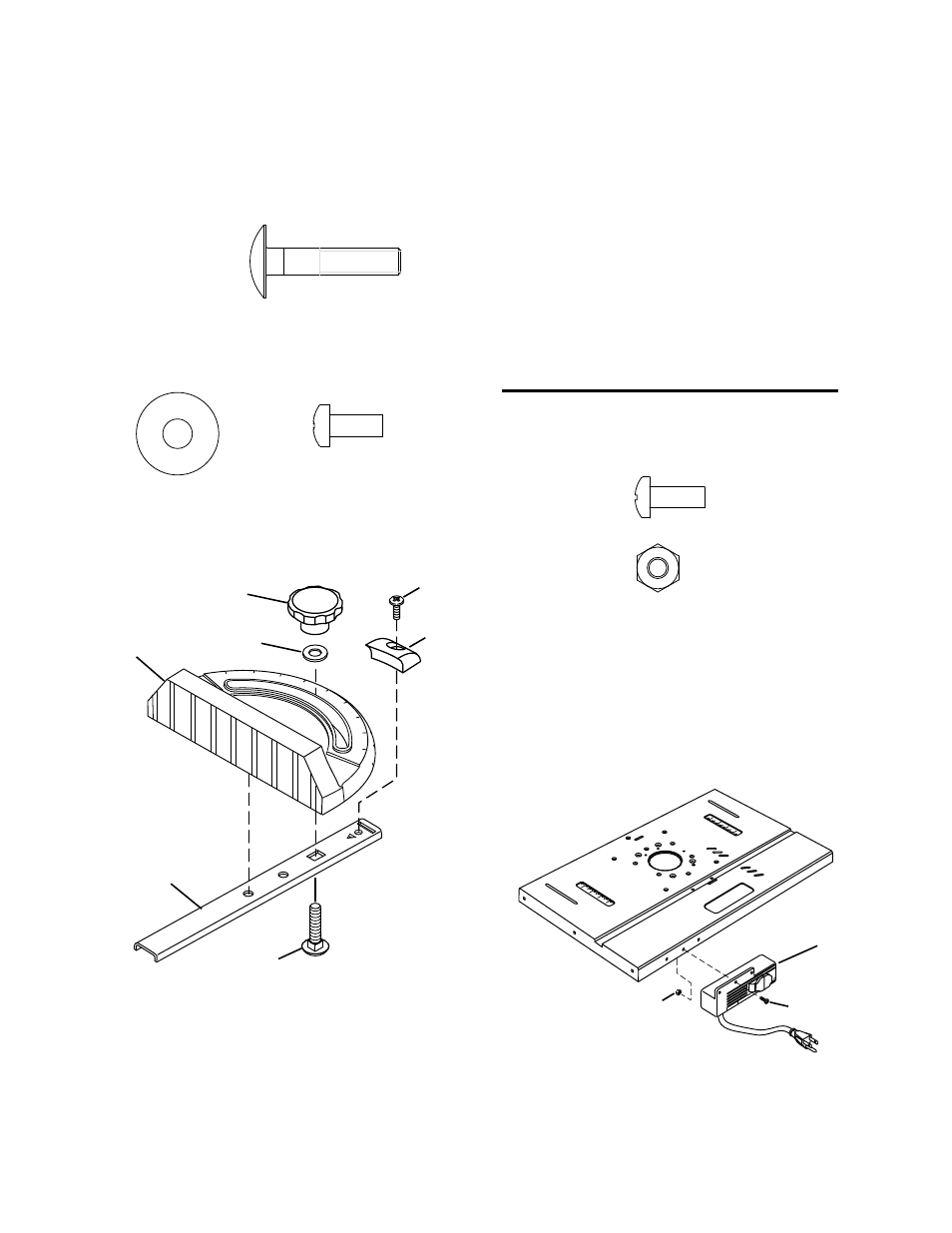

Assemble Plastic Miter Guide
(1° Increments, Model 6156 Only)
AG, zinc (1)
AH, black (1) AJ, zinc (1)
1. Assemble miter guide by threading
carriage bolt (AG) through miter bar
(K). See Figure 2.
2. Place washer (AH) and knob (M) on
end of carriage bolt (AG). Tighten
knob.
3. Attach miter pointer (L) to rear of
miter bar with Phillips head screw
(AJ).
60
45
30
15
0
15
30
45 60
AH
AG
K
M
J
AJ
L
Figure 2
Figure 3
Attach Switch Box to Tabletop
AK, black (3)
AL, black (3)
Use a #2 Phillips screwdriver to attach
switch box (P) to front of router table
(A) with 3 pan head screws (AK) and
3 hex nuts (AL). See Figure 3.
AL AK
P
