Windsor TRACER FS QTFSD User Manual
Page 11

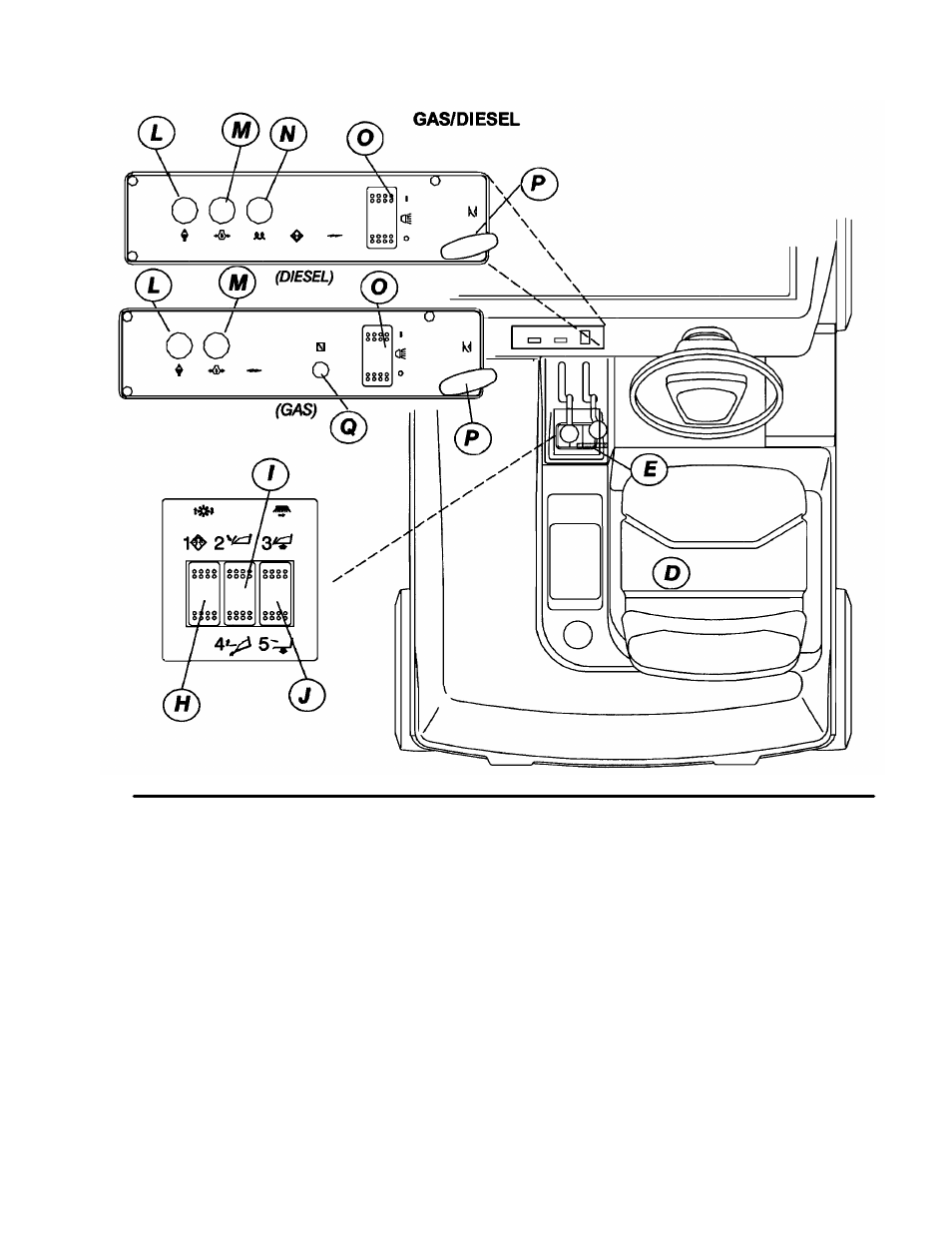

CONTROLS
QTFSG/QTFSD 98349 05/15/03
3-3
A. Directional Control Pedal
B. Brake Pedal
C. Parking Brake
D. Operator Seat
E. Rear Cover Latch
F. Main Broom Lever
G. Side Broom Lever
H. Filter Shaker Switch
I. Hopper Door Switch
J. Hopper Lift Switch
K. Hopper Safety Arm
L. Engine Temperature Light
M. Oil Pressure Light
N. Engine Glow Plug Light (Diesel
Only)
O. Light Switch
P. Engine Throttle Handle
Q. Choke Cable
R. Key Switch
S. Circuit Breakers
T. Horn Pad
U. Steering Wheel
V. Wet Sweep Bypass
