Popular in a wide variety of commercial and
industrial applications, the Thermospan 150 offers
a strong combination of characteristics, including
strength,rigidity,longer life and energy efficiency at
a highly competitive price.
The Thermospan 150 is manufactured using our
patented, continuous foamed-in-place technology,
in which the polyurethane core is securely
bonded to hot-dipped galvanized inner and outer
skins. This process gives the Thermospan 150
outstanding thermal, strength, and bonding
characteristics while creating a door that is
significantly more efficient than conventional
insulated steel doors.A designed-in joint seal also
helps save energy by preventing air filtration.
Optional factory glazed windows and aluminum
full view panels, combined with two standard
finishes (white and brown), can help ensure that
the Thermospan 150 meets your aesthetic
requirements as well.
Materials & Construction
The Thermospan 150 is designed for easy
installation, rugged durability and longer life.
Features such as 18-gauge steel end caps and
two 1 3 ⁄
4
" roll-formed struts on each section give
the Thermospan 150 increased rigidity, while the
factory finished interior and exterior hot-dipped,
galvanized skins make installation easier, add life
to the door and provide greater durability.
The Thermospan 150 also features hardware
plates at all fastener points to add durability and
extend the life of the door.
Contact Wayne-Dalton for additional sizes and
colors.
T
H E R M O S P A N ®
1 5 0
SECTIONAL DOOR SYSTEMS

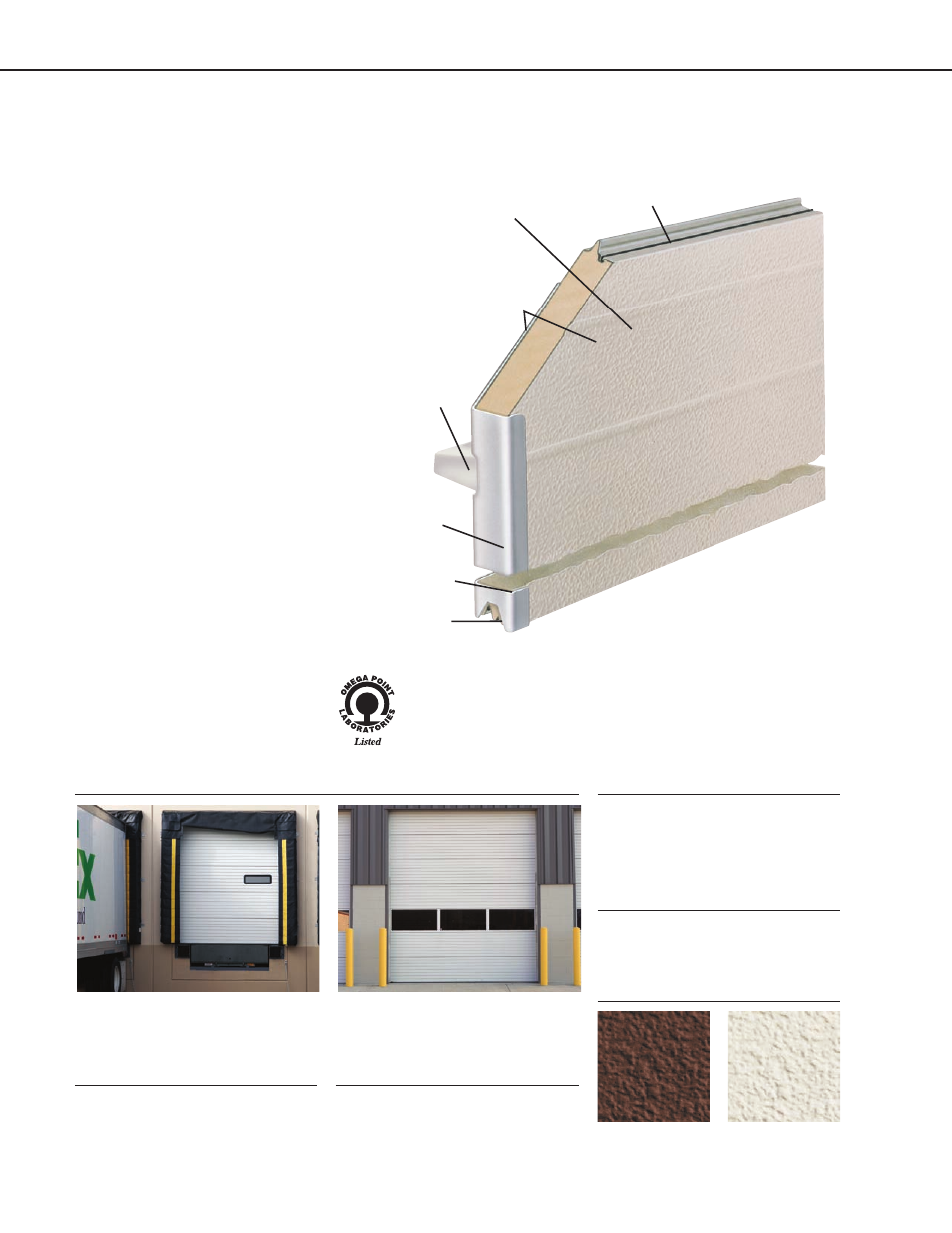

Prepainted inner and outer skins for
added corrosion-resistance.
NOTE: Both skins are also hot-dipped
galvanized steel for further protection
against corrosion.
Solid polyurethane
core adds to insulating
efficiency.
Flush door embossed pinstriping
(grooves) on outer skin adds strength and
non-repeating random stucco exterior
enhances appearance.
Integral struts
Two 1 3/4" roll-formed struts
per section add rigidity and
strength.
18-gauge “wrap-around”
end caps offer interior
hinge attachment surface
and exterior leg for proper
seal against jamb.
Joint seal prevents air
infiltration and saves energy.
Thermal break separates inner & outer
skins at top and bottom so virtually no heat
or cold is conducted through the section.
• Chain Hoist Operation
• Motor Operation
Extended Limited Warranty
TEN (10) YEARS against cracking, splitting or deterioration due to rust.
SEVEN (7) YEARS against separation of polyurethane from the steel skin of the panel.
www. wayne-dalton .com/commercial
Window Options
Operation Options
• Broken Cable Devices
• Safety Edges
• Safety Photo Eyes
Safety Options
• High Cycle Spring (25K,50K,100K)
• 3"Track Option
• Solid Shafts
• PerimeterWeatherseal
Performance Options
• SpecialTrack Designs
• Mullions
• Windload
Special Application Options
Vision Lites allow for visibility while
maintaining security
Aluminum full view sections allow for maximum
natural light and visibility
White Embossed
Stucco Finish
Brown Embossed
Stucco Finish
Color Options
