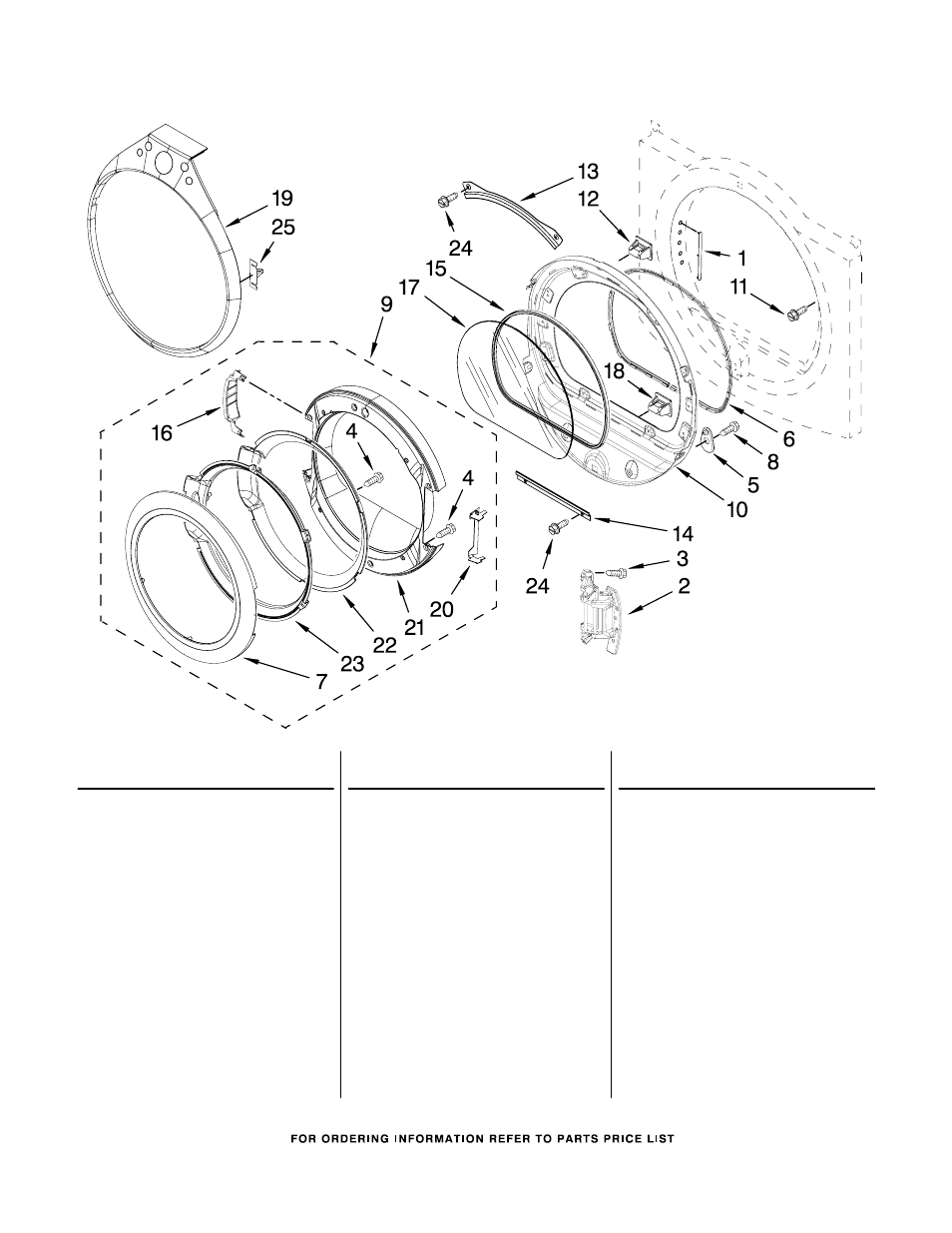

DOOR PARTS
9
For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1
(White) (Aspen) (Ultimate Silver) (Black/Chrome)
W10189037
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Label, Hinge Hole
W10085210 White
W10085230 Silver
2 W10139920 Door Hinge
Assembly
3 W10159996 Screw,
10−24 x 3/64
4
9742177 Screw, 8−18 x 5/8
5 W10048910 Screw−Plug
6 W10139457 Seal−Door
7
Handle, Ring & Pad
Assembly
8579502 Silver
8579503 Gold
8
3400224 Screw, 10−16 x 1/2
9 W10180115 Door Assembly
(Outer)
10
8578229 Door Assembly
(Inner)
(Includes
Illus. 12 & 18)
11
355515 Screw,
8−18 x 11/16
12
3398175 Door Catch
AssemblY (Upper)
13
8519356 Retainer−Window
(Upper)
14
8519354 Retainer−Window
(Lower)
15
8579662 Gasket, Window
16 W10180119 Cover−Hinge,
Stationary (LH)
(Following Parts
Not Included)
Cover−Hinge
W10181197 Stationary (RH)
17
8566254 Window
18
690081 Door Catch
Assembly (Lower)
19
Tear−Drop Trim &
Clip Assembly
W10180500 White
W10180504 Aspen
W10180503 Ultimate Silver
W10180501 Black/Chrome
20 W10180120 Door Shield
21 W10180118 Door, Intermediate
22 W10180117 Door Mask
23
8578155 Door Screen
24
3393258 Screw, 10−16 x 3/8
25 W10129065 Clip−Trim (8)
