TERMINALS
12
English
TERMINALS
Item Function
1. DC in
Connects the AC to DC adapter from this outlet to
a power source.
2. Audio in Connects to the audio out port of a computer.
3. VGA
Connects to a computer or other device with a
VGA output using a 15-pin VGA cable.
4. Composite AV input
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
5. TV tuner
Connects the LED TV to an antenna or cable
service.
6. Audio out Connect to an analog audio output device.
7. HDMI 1/2
Connects to an external AV device such as a
VCR, DVD player, set-top box, or game system.
8. USB Service port For service only.
9. SPDIF audio out Connects to an external digital audio receiver.

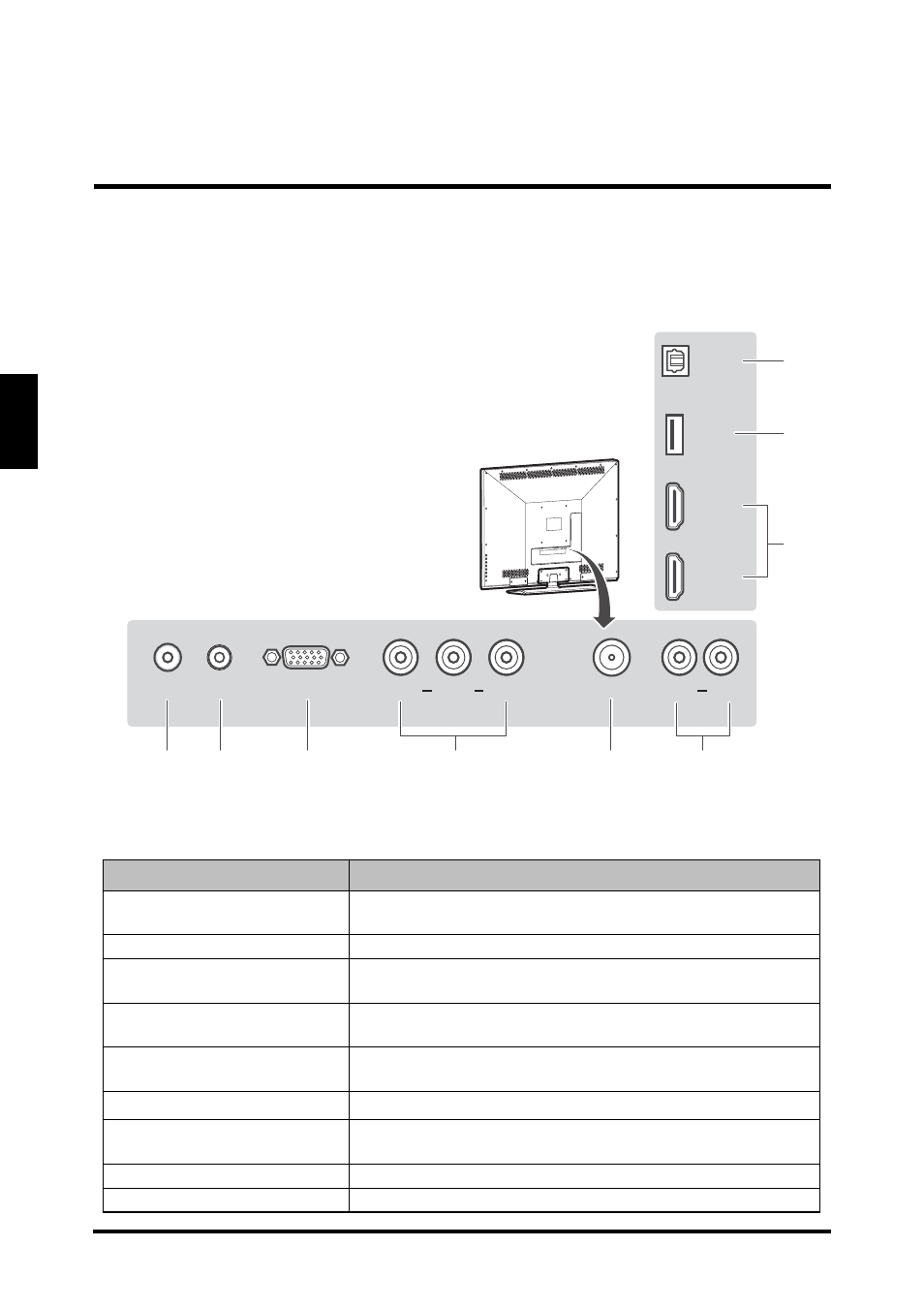

TUNER R L Y VGA AUDIO IN DC IN R L
HDMI 1
USB
HDMI 2
SPDIF
TUNER R L Y VGA AUDIO IN DC IN R L
9
8
7
1 2 3 5 4 6
