MAINTENANCE

CUTTER 36V (SCE) 86037030 12/05/06

4-11

11. VACUUM

MOTOR

(Refer to the Vacuum Group in the parts section of
manual)


Do not use a pressure washer to clean around
the vacuum motors. Use tap pressure only. Care
must be taken so that water is not directed into
vacuum motor air intakes.

CHANGING VACUUM MOTOR
1. Disconnect batteries from machine.
2. Remove front cover.
3. Disconnect electrical connector to the vacuum

motor.

4. Loosen clamp and disconnect hose from

vacuum intake.

5. Remove vacuum motor mounting bracket bolts.
6. Remove vacuum motor from mounting bracket.
7. Reverse steps to install.



















!

WARNING

Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.

Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.

3/8 (9.5mm)

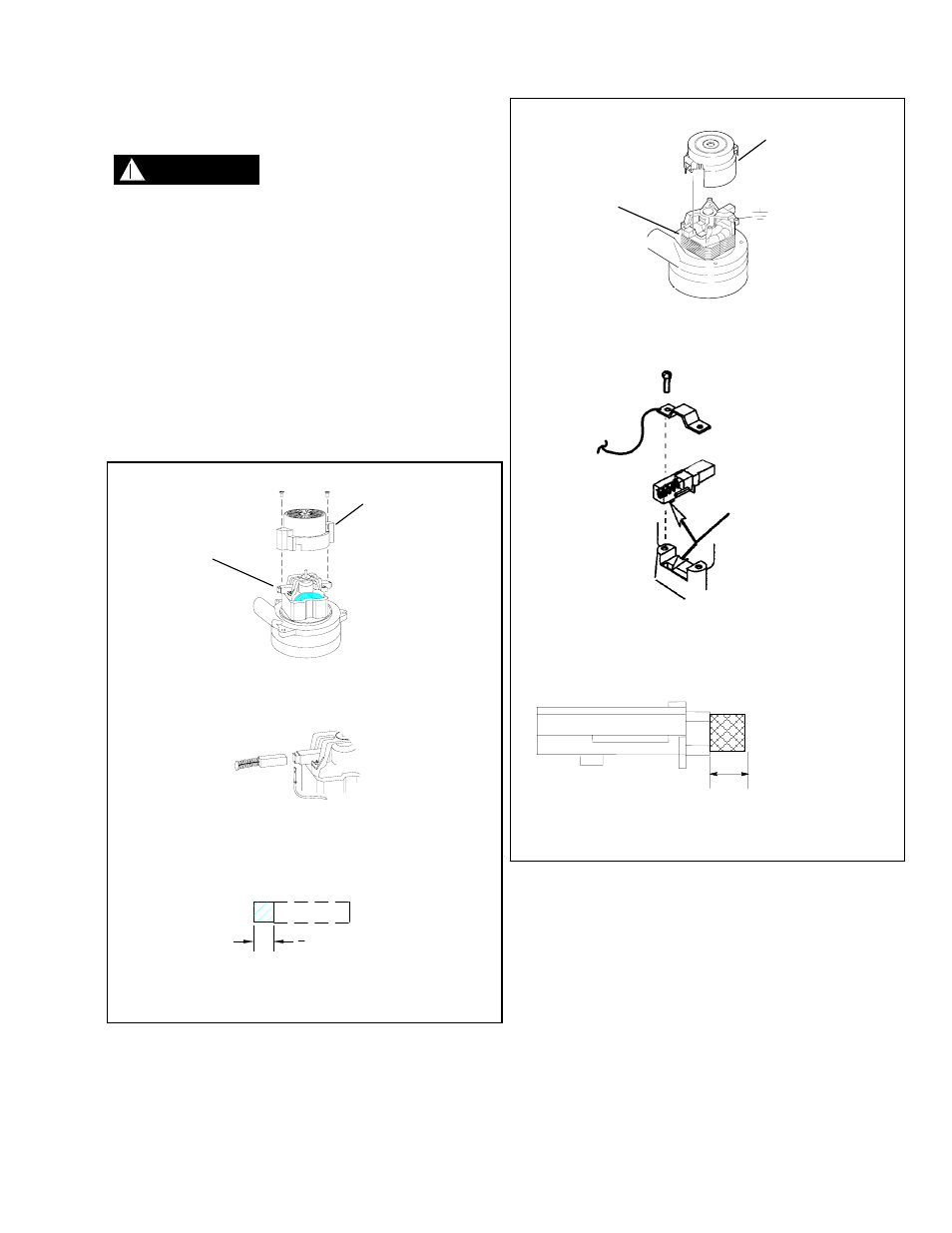

Vacuum Motor Carbon Brushes Replacement (Ametek)

End Cap

Carbon

Brushes

If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.

Note:
Place
stop in
groove.

Vacuum Motor Carbon Brushes Replacement (Windsor)

End Cap

Carbon
Brushes

If armature commutator is grooved, extremely pitted or not
concentric, the motor will need to be replaced or sent to a
qualified service center.

Important:
These brushes wear quicker as the length shortens due to
increased heat. Spring inside brush housing will damage
motor if brushes are allowed to wear away completely.

Periodically check the length of the carbon brushes. Replace
both carbon brushes when either is less than 3/8" (9.5mm)
long.

3
8

[9.5mm]
