eTTinG uP The
T800
• S
tep
1: S
elect
l
ocation
Position the T800 transmitter near the audio source (i.e. sound
system, mixer) from which it will receive audio.
• S
tep
2: i
nStall the
a
ntenna
Gently thread the antenna onto the stud recessed in the hole on
the back of the transmitter. To use a remote antenna, contact
your dealer or Williams Sound.
• S
tep
3: c
onnect the
p
ower
Locate the power supply cord equipped with the 3-pin con-
nector, then plug the connector into the “AC Power In” jack
located in the back of the T800. Plug the power supply into
the AC outlet. Press the “Power ON/OFF” control on the front

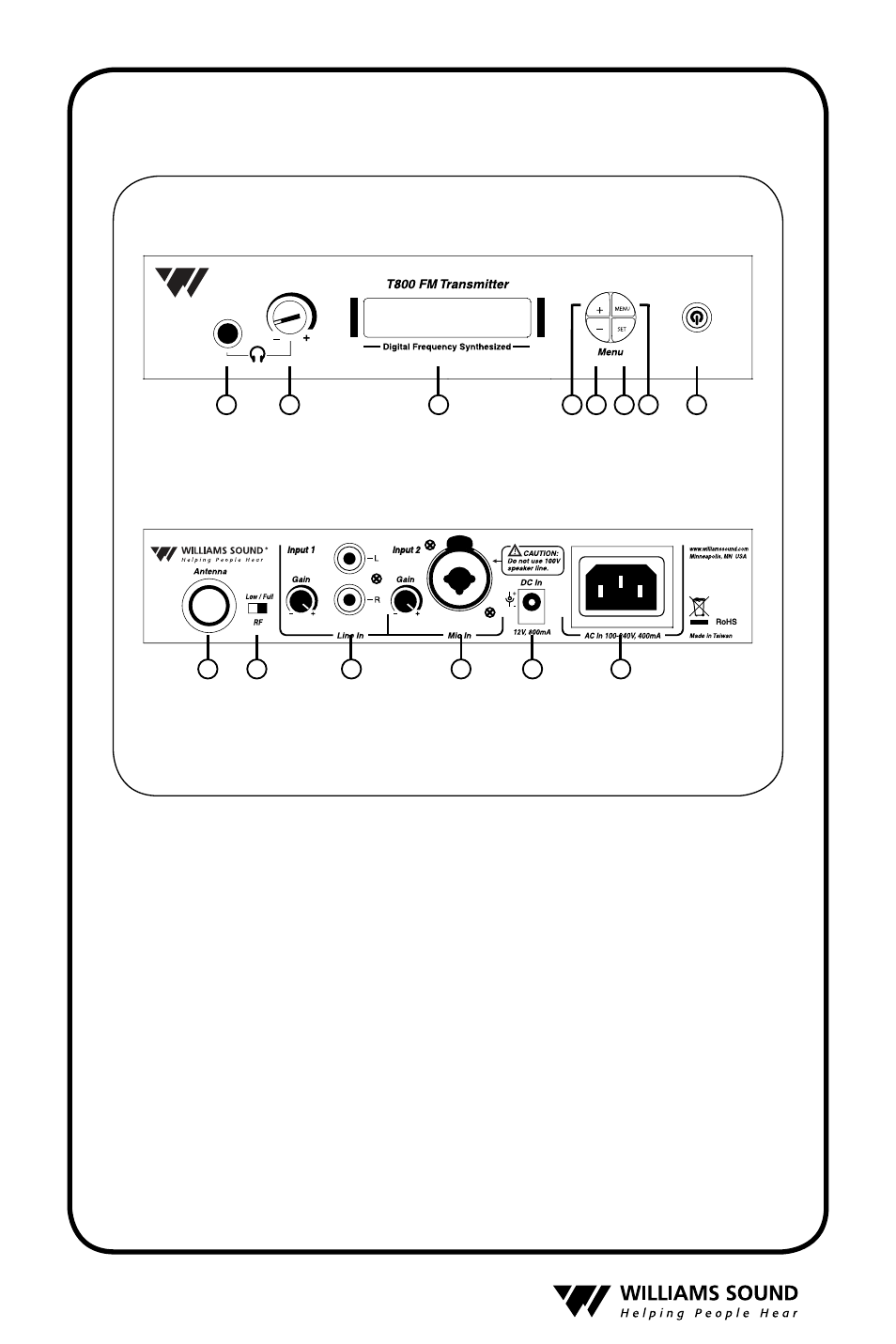

F
ig
. 2: F
eatureS
& c
ontrolS
1. Headphone Jack
2. Headphone Volume Control
3. Frequency Display (LCD)
4. Up Button
9. Antenna Connector
10. RF Power Output Switch
11. Audio Input Jack, RCA Type
(Line-level, Unbalanced) with
Gain Control
5. Down Button
6. Set Button
7. Menu Control
8. Power ON/OFF Control
12. Mic Input Jack, Combo 3-Pin XLR
or 1/4” TRS (Balanced/unbalanced)
with Gain Control
13. DC Power In Jack
14. AC Power In Jack
11 10 12 14 13
1
9
2 3 5 4 6 7 8
