Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10224610
11-09-08
Gas Dryer
Page 3 of 3
®

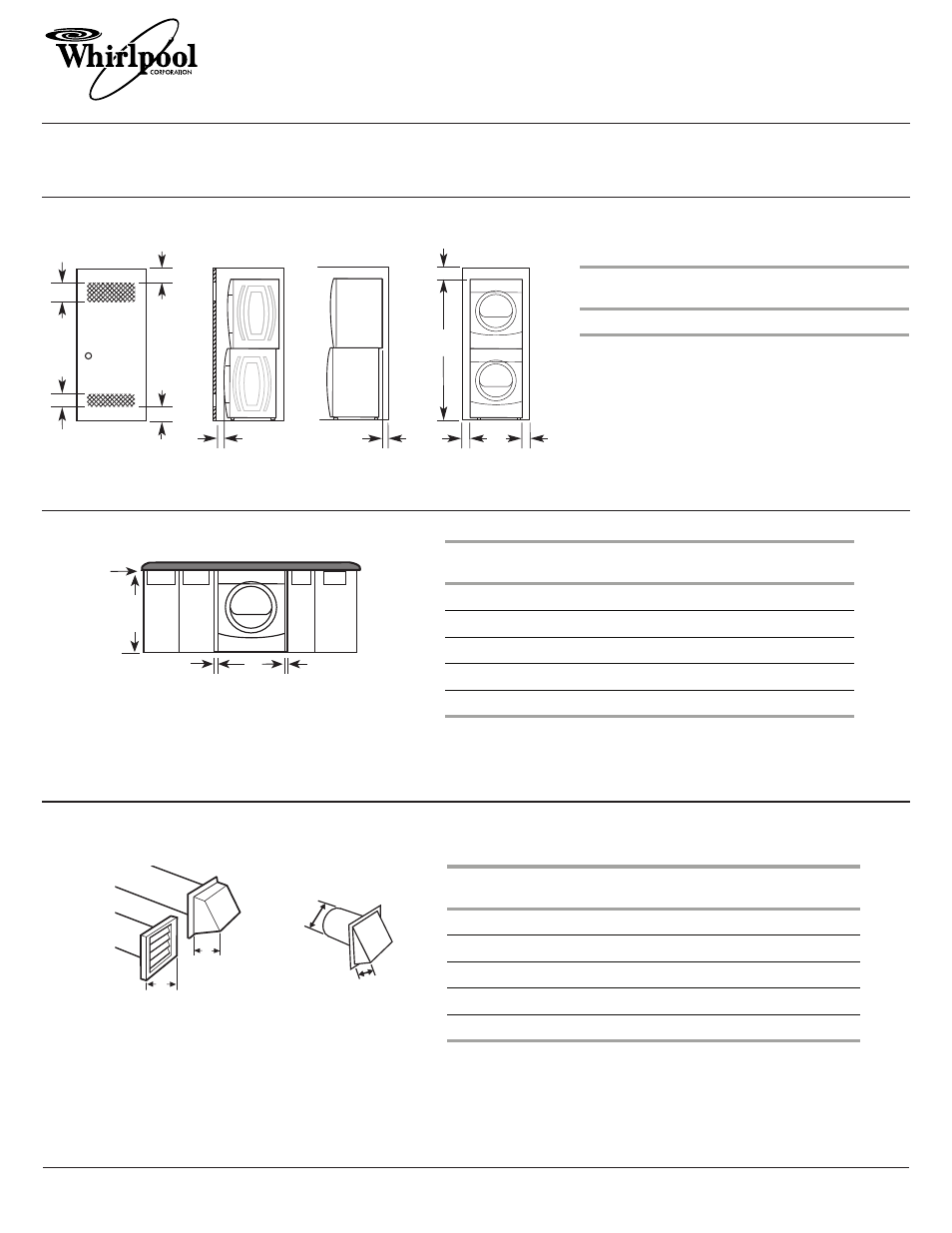

RECOMMENDED INSTALLATION SPACING FOR RECESSED OR CLOSET INSTALLATION, WITH STACKED WASHER AND DRYER
Dimensions shown are for recommended spacing.
48 in.
2
*
(310 cm
2
)
3"* (76 mm)
3"* (76 mm)
1"* (25 mm)
24 in.
2
*
(155 cm
2
)
6"* (152 mm)
76"
(1930 mm)
27"
(686 mm)
A*
1"
(25 mm)
1"
(25 mm)
Steam
(Electric or Gas)
Non-Steam
(Electric or Gas)
A*
5 ½" (140 mm)
5" (127 mm)
*Required spacing
NOTE:
Some models are not recommended for stacked
recessed or closet installation.
EXHAUST VENTING
A and B: Recommended hood styles.
C: Acceptable hood style.
4"
(102 mm)
4"
(102 mm)
B
A
4"
(102 mm)
2½"
(64 mm)
C
A. Louvered hood style
B. Box hood style
C. Angled hood style
NOTE: Side and bottom exhaust installations have a 90º turn inside
the dryer. To determine maximum exhaust length, add one 90º turn
to the chart.
Number
90º elbows
Type of vent
Box /louvered
hoods
Angled
hoods
0
Rigid metal
64 ft (20 m)
58 ft (17.7 m)
1
Rigid metal
54 ft (16.5 m)
48 ft (14.6 m)
2
Rigid metal
44 ft (13.4 m)
38 ft (11.6 m)
3
Rigid metal
35 ft (10.7 m)
29 ft (8.8 m)
4
Rigid metal
27 ft (8.2 m)
21 ft (6.4 m)
Select the route that will provide the straightest and most direct path outdoors.
Plan the installation to use the fewest number of elbows and turns. Use the fewest
90° turns possible.
Do not use vent runs longer than specified in vent length chart.
Determine the number of elbows you will need.
CUSTOM UNDERCOUNTER INSTALLATION – DRYER ONLY
Dimensions shown are for minimum spacing.
A
B
C*
D
E*
Steam
(Electric or Gas)
Non-Steam
(Electric or Gas)
A
0" (0 mm)
0" (0 mm)
B
38" (9652 mm)
38" (9652 mm)
C*
1" (25 mm)
1" (25 mm)
D
27" (686 mm)
27" (686 mm)
E*
1" (25 mm)
1" (25 mm)
*Required spacing
NOTE: Some models are not recommended for undercounter
installation.
* Required spacing
* Required spacing
PRODUCT MODEL NUMBERS
WGD9200S
WGD9300V
WGD9400S
WGD9400V
WGD9500T
WGD9600T
