Weider WESY93190 User Manual
Page 8

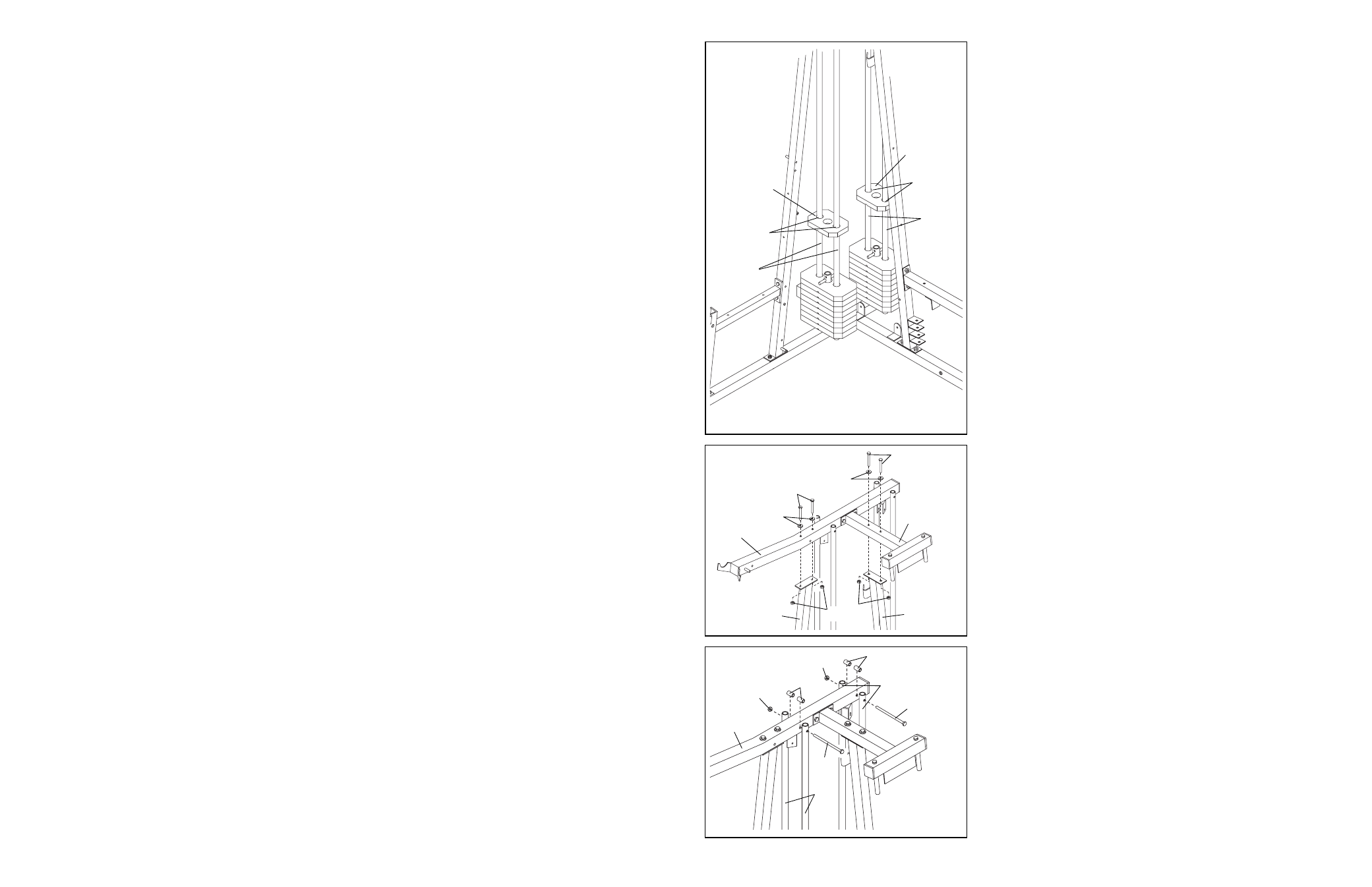

10. Lubricate the insides of the holes in the Top Weights
(24) as shown. Slide a Top Weight onto each set of
Weight Guides (23).
11. Attach the Top Frame (2) to the Ab Upright (1) with
two 5/16Ó x 2 3/4Ó Bolts (55), two 5/16Ó Washers (20)
and two 5/16Ó Nylon Locknuts (40). Do not tighten
the Nylon Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press
Upright (4) with two 5/16Ó x 2 3/4Ó Bolts (55), two
5/16Ó Washers (20), and two 5/16Ó Nylon Locknuts
(40). Do not tighten the Nylon Locknuts yet.
12. Attach the upper ends of one set of Weight Guides
(23) to the Top Frame (2) with a 5/16Ó x 6Ó Bolt (67),
two 1/2Ó x 3/4Ó Spacers (69) and a 5/16Ó Nylon
Locknut (40).
Attach the upper ends of the other set of Weight
Guides (23) in the same manner.
Before continuing, firmly tighten all nylon lock-
nuts used in steps 1 through 12.
10
12
8
23
Lubricate
Lubricate
23
23
69
40
67
67
40
2
69
24
24
23
11
55
55
20
20
40 40
4
3
2
1
