Wolf CTEWH45 - Manual (Page 8)

Cooktop Low-Profile Hood Opertation 8
Heat Sentry Feature
The heat sentry feature turns the ventilation hood on when
heat is sensed and adjusts the blower speed automati-
cally. The heat sentry feature is activated when the
exhaust from the hood reaches a threshold temperature
and deactivated when the exhaust temperature decreases.
If the blower is off, it automatically turns the blower on to
HIGH speed. If the blower is on at a lower speed setting, it
will automatically adjust to HIGH speed. When the temper-
ature level drops, it adjusts the blower back to the setting
on the blower control.
IMPORTANT NOTE: The heat sentry thermostat can start
the blower even if the hood is turned off. When this
occurs, the blower cannot be turned off by the hood
controls. If you must turn off the blower, do it from the
main electrical panel.
Hood Controls
The Wolf cooktop low-profile hood is operated using the
touch control pads on the front face of the hood. Refer to
the illustration below.
L) LIGHTS. Touch the pad once to turn the lights ON,
touch a second time to turn the lights ON to a brighter
level and touch a third time to turn the lights OFF.
1) A touch activates the blower motor at the first speed
(icon is illuminated). Press the pad for about two
seconds to turn the blower OFF.
2) Activates the blower at the second speed.
3) Activates the blower at the third speed.
4) Activates the blower at the fourth speed.
A) Touch the pad to set a TIMER which keeps the blower
operating at the current speed for 10 minutes.
F) FILTER. After 30 hours of operation, the icon is illumi-
nated to indicate that the grease filter(s) must be
cleaned. After 120 hours, the icon flashes to indicate
that the grease filter(s) must be cleaned and the
charcoal filter replaced. To reset the hour counter,
touch (F) while the icon is illuminated or flashing.

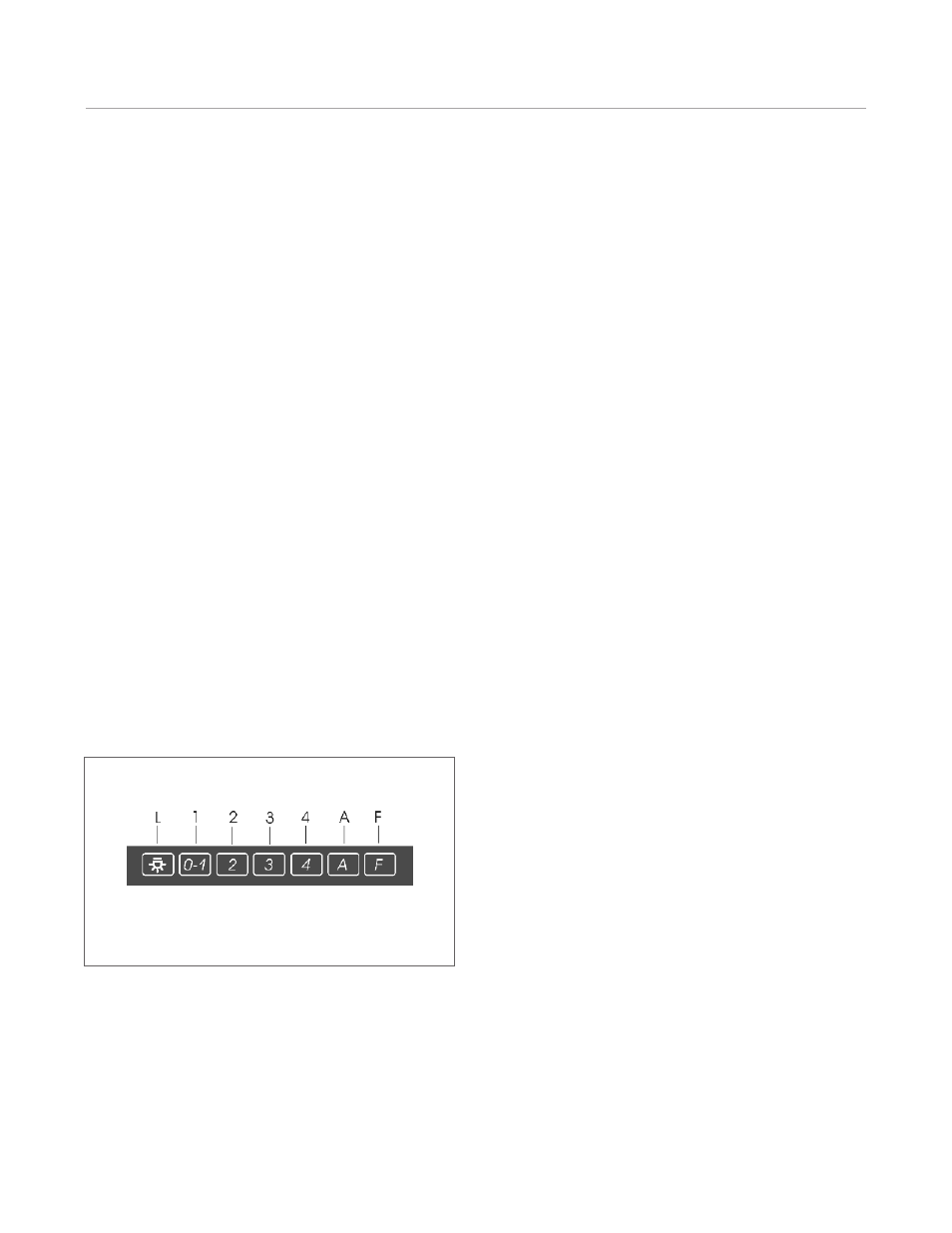

Hood controls.
